The abstract base class for all signal processing blocks.Basic blocks are the bare abstraction of an entity that has a name, a set of inputs and outputs, and a message queue. These are never instantiated directly; rather, this is the abstract parent class of both gr_hier_block, which is a recursive container, and gr_block, which implements actual signal processing functions. More...

#include <gr_basic_block.h>

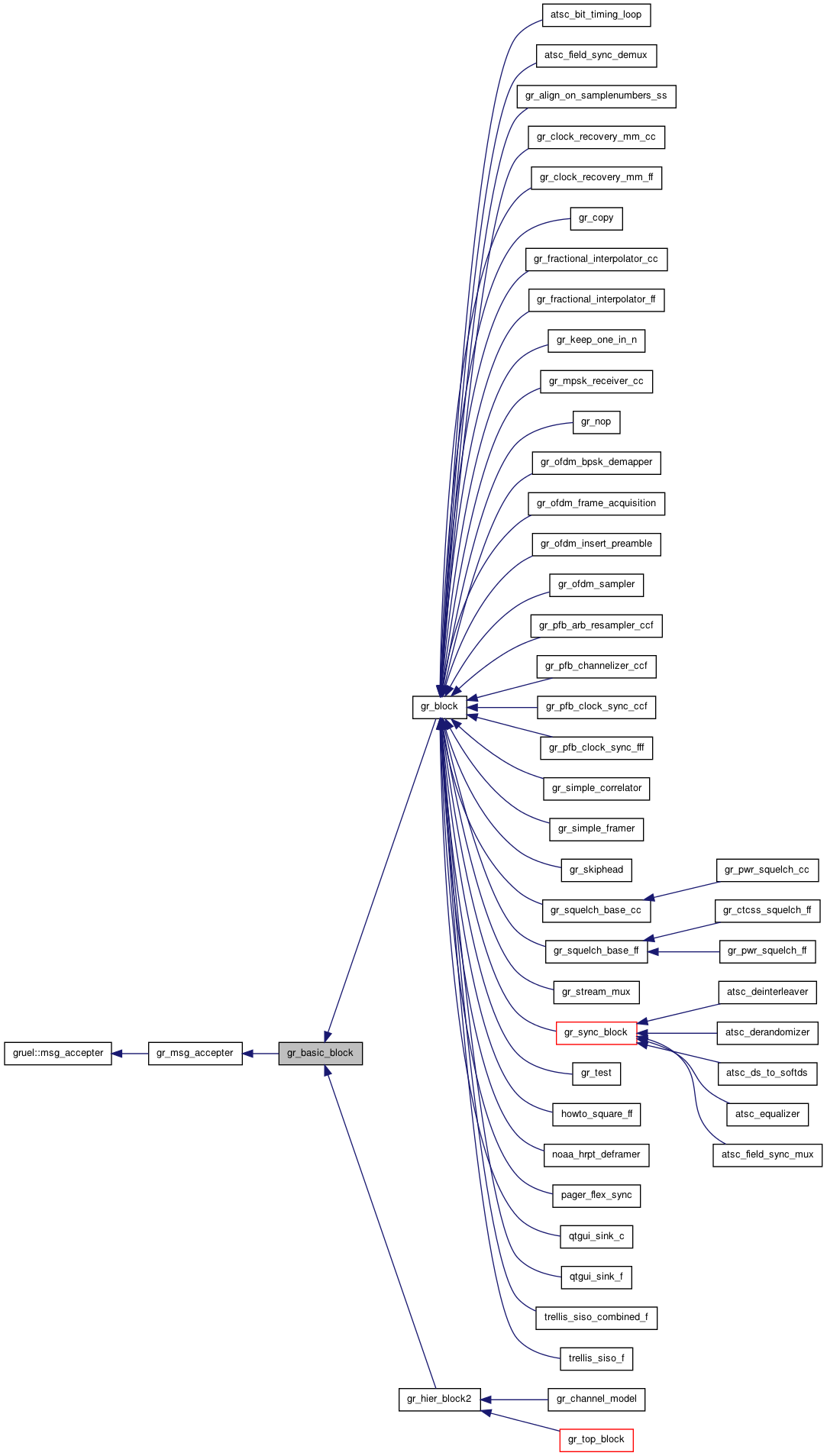

Inheritance diagram for gr_basic_block:

[legend]

List of all members.

Public Member Functions
virtual	~gr_basic_block ()
long	unique_id () const
std::string	name () const
gr_io_signature_sptr	input_signature () const
gr_io_signature_sptr	output_signature () const
gr_basic_block_sptr	basic_block ()
virtual bool	check_topology (int ninputs, int noutputs)
	Confirm that ninputs and noutputs is an acceptable combination.
virtual void	handle_msg (pmt::pmt_t msg)
	Block message handler.
Protected Types
enum	vcolor { WHITE, GREY, BLACK }
Protected Member Functions
	gr_basic_block (const std::string &name, gr_io_signature_sptr input_signature, gr_io_signature_sptr output_signature)
	Protected constructor prevents instantiation by non-derived classes.
void	set_input_signature (gr_io_signature_sptr iosig)
	may only be called during constructor
void	set_output_signature (gr_io_signature_sptr iosig)
	may only be called during constructor
void	set_color (vcolor color)
	Allow the flowgraph to set for sorting and partitioning.
vcolor	color () const
Protected Attributes
std::string	d_name
gr_io_signature_sptr	d_input_signature
gr_io_signature_sptr	d_output_signature
long	d_unique_id
vcolor	d_color
Friends
class	gr_flowgraph
class	gr_flat_flowgraph

Detailed Description

The abstract base class for all signal processing blocks.

Basic blocks are the bare abstraction of an entity that has a name, a set of inputs and outputs, and a message queue. These are never instantiated directly; rather, this is the abstract parent class of both gr_hier_block, which is a recursive container, and gr_block, which implements actual signal processing functions.

Member Enumeration Documentation

enum gr_basic_block::vcolor [protected]

Enumerator:

WHITE
GREY
BLACK

Constructor & Destructor Documentation

gr_basic_block::gr_basic_block	(	const std::string &	name,
		gr_io_signature_sptr	input_signature,
		gr_io_signature_sptr	output_signature
	)		`[protected]`

Protected constructor prevents instantiation by non-derived classes.

virtual gr_basic_block::~gr_basic_block ( ) [virtual]

Member Function Documentation

gr_basic_block_sptr gr_basic_block::basic_block ( )

virtual bool gr_basic_block::check_topology	(	int	ninputs,
		int	noutputs
	)		`[inline, virtual]`

Confirm that ninputs and noutputs is an acceptable combination.

Parameters:

ninputs	number of input streams connected
noutputs	number of output streams connected

Returns:: true if this is a valid configuration for this block.

This function is called by the runtime system whenever the topology changes. Most classes do not need to override this. This check is in addition to the constraints specified by the input and output gr_io_signatures.

Reimplemented in gr_pfb_clock_sync_ccf, gr_pfb_clock_sync_fff, gr_align_on_samplenumbers_ss, gr_copy, gr_deinterleave, gr_interleave, gr_kludge_copy, gr_test, gr_oscope_sink_f, audio_alsa_sink, audio_alsa_source, audio_jack_sink, audio_jack_source, audio_osx_source, audio_portaudio_sink, audio_portaudio_source, comedi_sink_s, and comedi_source_s.

vcolor gr_basic_block::color ( ) const [inline, protected]

References d_color.

Referenced by set_color().

virtual void gr_basic_block::handle_msg ( pmt::pmt_t msg ) [inline, virtual]

Block message handler.

Parameters:

msg	Arbitrary message encapsulated as pmt::pmt_t

This function is called by the runtime system whenever there are messages in its queue. Blocks should override this to receive messages; the default behavior is to drop them on the floor.

gr_io_signature_sptr gr_basic_block::input_signature ( ) const [inline]

References d_input_signature.

std::string gr_basic_block::name ( ) const [inline]

References d_name.

gr_io_signature_sptr gr_basic_block::output_signature ( ) const [inline]

References d_output_signature.

void gr_basic_block::set_color ( vcolor color ) [inline, protected]

Allow the flowgraph to set for sorting and partitioning.

References color(), and d_color.

void gr_basic_block::set_input_signature ( gr_io_signature_sptr iosig ) [inline, protected]

may only be called during constructor

References d_input_signature.
