gr_oscope_sink_f Class Reference

Building block for python oscilloscope module.Accepts multiple float streams. More...

#include <gr_oscope_sink_f.h>

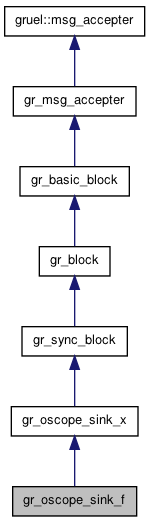

Inheritance diagram for gr_oscope_sink_f:

List of all members.

Public Member Functions
	~gr_oscope_sink_f ()
int	work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
	just like gr_block::general_work, only this arranges to call consume_each for you
bool	check_topology (int ninputs, int noutputs)
	Confirm that ninputs and noutputs is an acceptable combination.
Friends
gr_oscope_sink_f_sptr	gr_make_oscope_sink_f (double sampling_rate, gr_msg_queue_sptr msgq)

---

Detailed Description

Building block for python oscilloscope module.

Accepts multiple float streams.

---

Constructor & Destructor Documentation

gr_oscope_sink_f::~gr_oscope_sink_f

(

)

---

Member Function Documentation

bool gr_oscope_sink_f::check_topology	(	int	ninputs,
		int	noutputs
	)		[virtual]

Confirm that ninputs and noutputs is an acceptable combination.

Parameters:

ninputs	number of input streams connected
noutputs	number of output streams connected

Returns:

true if this is a valid configuration for this block.

This function is called by the runtime system whenever the topology changes. Most classes do not need to override this. This check is in addition to the constraints specified by the input and output gr_io_signatures.

Reimplemented from gr_basic_block.

int gr_oscope_sink_f::work	(	int	noutput_items,
		gr_vector_const_void_star &	input_items,
		gr_vector_void_star &	output_items
	)		[virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.

---

Friends And Related Function Documentation

gr_oscope_sink_f_sptr gr_make_oscope_sink_f	(	double	sampling_rate,
		gr_msg_queue_sptr	msgq
	)		[friend]

---

The documentation for this class was generated from the following file:

• gr_oscope_sink_f.h
