gr_interleave Class Reference
interleave N inputs to a single output More...
#include <gr_interleave.h>

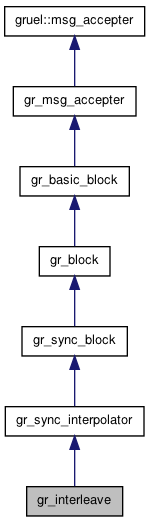

Inheritance diagram for gr_interleave:
Public Member Functions | |
| ~gr_interleave () | |
| int | work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items) |
| just like gr_block::general_work, only this arranges to call consume_each for you | |
| bool | check_topology (int ninputs, int noutputs) |
| Confirm that ninputs and noutputs is an acceptable combination. | |
Friends | |
| gr_interleave_sptr | gr_make_interleave (size_t itemsize) |
Detailed Description
interleave N inputs to a single output
Constructor & Destructor Documentation
| gr_interleave::~gr_interleave | ( | ) |
Member Function Documentation
| bool gr_interleave::check_topology | ( | int | ninputs, |
| int | noutputs | ||
| ) | [virtual] |
Confirm that ninputs and noutputs is an acceptable combination.
- Parameters:
-
ninputs number of input streams connected noutputs number of output streams connected
- Returns:
- true if this is a valid configuration for this block.
This function is called by the runtime system whenever the topology changes. Most classes do not need to override this. This check is in addition to the constraints specified by the input and output gr_io_signatures.
Reimplemented from gr_basic_block.
| int gr_interleave::work | ( | int | noutput_items, |
| gr_vector_const_void_star & | input_items, | ||
| gr_vector_void_star & | output_items | ||
| ) | [virtual] |
just like gr_block::general_work, only this arranges to call consume_each for you
The user must override work to define the signal processing code
Implements gr_sync_block.
Friends And Related Function Documentation
| gr_interleave_sptr gr_make_interleave | ( | size_t | itemsize | ) | [friend] |
The documentation for this class was generated from the following file:
