gr_deinterleave Class Reference
deinterleave a single input into N outputs More...
#include <gr_deinterleave.h>

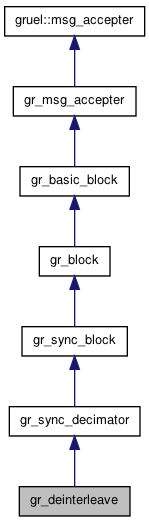

Inheritance diagram for gr_deinterleave:
Public Member Functions | |
| ~gr_deinterleave () | |
| int | work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items) |
| just like gr_block::general_work, only this arranges to call consume_each for you | |
| bool | check_topology (int ninputs, int noutputs) |
| Confirm that ninputs and noutputs is an acceptable combination. | |
Friends | |
| gr_deinterleave_sptr | gr_make_deinterleave (size_t itemsize) |
Detailed Description
deinterleave a single input into N outputs
Constructor & Destructor Documentation
| gr_deinterleave::~gr_deinterleave | ( | ) |
Member Function Documentation
| bool gr_deinterleave::check_topology | ( | int | ninputs, |
| int | noutputs | ||
| ) | [virtual] |
Confirm that ninputs and noutputs is an acceptable combination.
- Parameters:
-
ninputs number of input streams connected noutputs number of output streams connected
- Returns:
- true if this is a valid configuration for this block.
This function is called by the runtime system whenever the topology changes. Most classes do not need to override this. This check is in addition to the constraints specified by the input and output gr_io_signatures.
Reimplemented from gr_basic_block.
| int gr_deinterleave::work | ( | int | noutput_items, |
| gr_vector_const_void_star & | input_items, | ||
| gr_vector_void_star & | output_items | ||
| ) | [virtual] |
just like gr_block::general_work, only this arranges to call consume_each for you
The user must override work to define the signal processing code
Implements gr_sync_block.
Friends And Related Function Documentation
| gr_deinterleave_sptr gr_make_deinterleave | ( | size_t | itemsize | ) | [friend] |
The documentation for this class was generated from the following file:
