base class for GNU Radio interface to the USRP More...

#include <usrp_base.h>

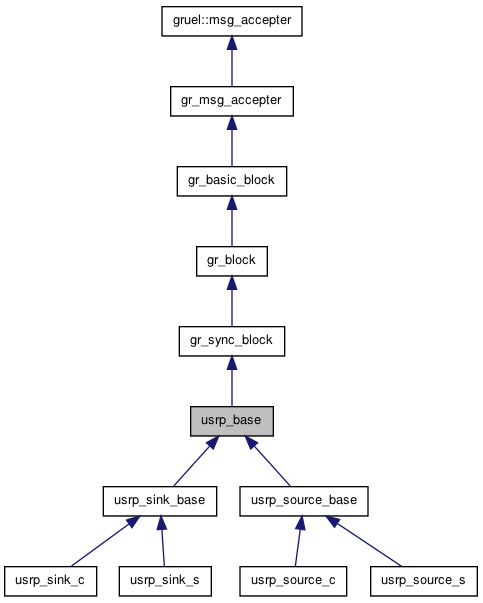

Inheritance diagram for usrp_base:

Public Member Functions
virtual	~usrp_base ()
std::vector< std::vector < db_base_sptr > >	db ()
std::vector< db_base_sptr >	db (int which_side)
db_base_sptr	db (int which_side, int which_dev)
db_base_sptr	selected_subdev (usrp_subdev_spec ss)
	given a usrp_subdev_spec, return the corresponding daughterboard object.
long	fpga_master_clock_freq () const
	return frequency of master oscillator on USRP
void	set_fpga_master_clock_freq (long master_clock)
void	set_verbose (bool on)
bool	write_eeprom (int i2c_addr, int eeprom_offset, const std::string buf)
	Write EEPROM on motherboard or any daughterboard.
std::string	read_eeprom (int i2c_addr, int eeprom_offset, int len)
	Read EEPROM on motherboard or any daughterboard.
bool	write_i2c (int i2c_addr, const std::string buf)
	Write to I2C peripheral.
std::string	read_i2c (int i2c_addr, int len)
	Read from I2C peripheral.
bool	set_adc_offset (int which_adc, int offset)
	Set ADC offset correction.
bool	set_dac_offset (int which_dac, int offset, int offset_pin)
	Set DAC offset correction.
bool	set_adc_buffer_bypass (int which_adc, bool bypass)
	Control ADC input buffer.
bool	set_dc_offset_cl_enable (int bits, int mask)
	Enable/disable automatic DC offset removal control loop in FPGA.
std::string	serial_number ()
	return the usrp's serial number.
virtual int	daughterboard_id (int which_side) const
	Return daughterboard ID for given side [0,1].
bool	write_atr_tx_delay (int value)
	Clock ticks to delay rising of T/R signal.
bool	write_atr_rx_delay (int value)
	Clock ticks to delay falling edge of T/R signal.
bool	set_pga (int which_amp, double gain_in_db)
	Set Programmable Gain Amplifier (PGA)
double	pga (int which_amp) const
	Return programmable gain amplifier gain setting in dB.
double	pga_min () const
	Return minimum legal PGA gain in dB.
double	pga_max () const
	Return maximum legal PGA gain in dB.
double	pga_db_per_step () const
	Return hardware step size of PGA (linear in dB).
bool	_write_oe (int which_side, int value, int mask)
	Write direction register (output enables) for pins that go to daughterboard.
bool	write_io (int which_side, int value, int mask)
	Write daughterboard i/o pin value.
int	read_io (int which_side)
	Read daughterboard i/o pin value.
bool	write_refclk (int which_side, int value)
	Write daughterboard refclk config register.
bool	write_atr_mask (int which_side, int value)
bool	write_atr_txval (int which_side, int value)
bool	write_atr_rxval (int which_side, int value)
bool	write_aux_dac (int which_side, int which_dac, int value)
	Write auxiliary digital to analog converter.
int	read_aux_adc (int which_side, int which_adc)
	Read auxiliary analog to digital converter.
long	converter_rate () const
	returns A/D or D/A converter rate in Hz
bool	_set_led (int which_led, bool on)
bool	_write_fpga_reg (int regno, int value)
	Write FPGA register.
bool	_read_fpga_reg (int regno, int *value)
	Read FPGA register.
int	_read_fpga_reg (int regno)
	Read FPGA register.
bool	_write_fpga_reg_masked (int regno, int value, int mask)
	Write FPGA register with mask.
bool	_write_9862 (int which_codec, int regno, unsigned char value)
	Write AD9862 register.
int	_read_9862 (int which_codec, int regno) const
	Read AD9862 register.
bool	_write_spi (int optional_header, int enables, int format, std::string buf)
	Write data to SPI bus peripheral.
std::string	_read_spi (int optional_header, int enables, int format, int len)
usrp_subdev_spec	pick_subdev (std::vector< int > candidates=std::vector< int >(0))
Static Public Attributes
static const int	READ_FAILED = -99999
	magic value used on alternate register read interfaces
Protected Member Functions
	usrp_base (const std::string &name, gr_io_signature_sptr input_signature, gr_io_signature_sptr output_signature)
void	set_usrp_basic (boost::shared_ptr< usrp_basic > u)

Detailed Description

base class for GNU Radio interface to the USRP

Constructor & Destructor Documentation

usrp_base::usrp_base	(	const std::string &	name,
		gr_io_signature_sptr	input_signature,
		gr_io_signature_sptr	output_signature
	)		`[inline, protected]`

virtual usrp_base::~usrp_base ( ) [virtual]

Member Function Documentation

int usrp_base::_read_9862	(	int	which_codec,
		int	regno
	)		const

Read AD9862 register.

Parameters:

which_codec	0 or 1
regno	6-bit register number

Returns:: register value if successful, else READ_FAILED

bool usrp_base::_read_fpga_reg	(	int	regno,
		int *	value
	)

Read FPGA register.

Parameters:

regno	7-bit register number
value	32-bit value

Returns:: true iff successful

int usrp_base::_read_fpga_reg ( int regno )

Read FPGA register.

Parameters:

regno 7-bit register number

Returns:: register value if successful, else READ_FAILED

std::string usrp_base::_read_spi	(	int	optional_header,
		int	enables,
		int	format,
		int	len
	)

bool usrp_base::_set_led	(	int	which_led,
		bool	on
	)

bool usrp_base::_write_9862	(	int	which_codec,
		int	regno,
		unsigned char	value
	)

Write AD9862 register.

Parameters:

which_codec	0 or 1
regno	6-bit register number
value	8-bit value

Returns:: true iff successful

bool usrp_base::_write_fpga_reg	(	int	regno,
		int	value
	)

Write FPGA register.

Parameters:

regno	7-bit register number
value	32-bit value

Returns:: true iff successful

bool usrp_base::_write_fpga_reg_masked	(	int	regno,
		int	value,
		int	mask
	)

Write FPGA register with mask.

Parameters:

regno	7-bit register number
value	16-bit value
mask	16-bit value

Returns:: true if successful Only use this for registers who actually implement a mask in the verilog firmware, like FR_RX_MASTER_SLAVE

bool usrp_base::_write_oe	(	int	which_side,
		int	value,
		int	mask
	)

Write direction register (output enables) for pins that go to daughterboard.

Parameters:

which_side	[0,1] which size
value	value to write into register
mask	which bits of value to write into reg

Each d'board has 16-bits of general purpose i/o. Setting the bit makes it an output from the FPGA to the d'board.

This register is initialized based on a value stored in the d'board EEPROM. In general, you shouldn't be using this routine without a very good reason. Using this method incorrectly will kill your USRP motherboard and/or daughterboard.

bool usrp_base::_write_spi	(	int	optional_header,
		int	enables,
		int	format,
		std::string	buf
	)

Write data to SPI bus peripheral.

Parameters:

optional_header	0,1 or 2 bytes to write before buf.
enables	bitmask of peripherals to write. See usrp_spi_defs.h
format	transaction format. See usrp_spi_defs.h SPI_FMT_*
buf	the data to write

Returns:: true iff successful Writes are limited to a maximum of 64 bytes.

If format specifies that optional_header bytes are present, they are written to the peripheral immediately prior to writing buf.

long usrp_base::converter_rate ( ) const

returns A/D or D/A converter rate in Hz

Referenced by usrp_source_base::adc_freq(), usrp_source_base::adc_rate(), usrp_sink_base::dac_freq(), and usrp_sink_base::dac_rate().

virtual int usrp_base::daughterboard_id ( int which_side ) const [virtual]

Return daughterboard ID for given side [0,1].

Parameters:

which_side [0,1] which daughterboard

Returns:: daughterboard id >= 0 if successful; -1 if no daugherboard; -2 if invalid EEPROM on daughterboard

db_base_sptr usrp_base::db	(	int	which_side,
		int	which_dev
	)

Return the daughterboard instance corresponding to the selected side of the USRP and selected daughterboard subdevice. N.B. To ensure proper lifetime management, the caller should continue to hold these as weak pointers, not shared pointers. As long as the caller does not attempt to directly use the weak pointers after this usrp object has been destroyed, everything will work out fine.

std::vector<std::vector<db_base_sptr> > usrp_base::db ( )

std::vector<db_base_sptr> usrp_base::db ( int which_side )

Return a vector of size 1 or 2 that contains shared pointers to the daughterboard instance(s) associated with the specified side.

Parameters:

which_side [0,1] which daughterboard

N.B. To ensure proper lifetime management, the caller should continue to hold these as weak pointers, not shared pointers. As long as the caller does not attempt to directly use the weak pointers after this usrp object has been destroyed, everything will work out fine.

long usrp_base::fpga_master_clock_freq ( ) const

return frequency of master oscillator on USRP

double usrp_base::pga ( int which_amp ) const

Return programmable gain amplifier gain setting in dB.

Parameters:

which_amp which amp [0,3]

double usrp_base::pga_db_per_step ( ) const

Return hardware step size of PGA (linear in dB).

double usrp_base::pga_max ( ) const

Return maximum legal PGA gain in dB.

double usrp_base::pga_min ( ) const

Return minimum legal PGA gain in dB.

usrp_subdev_spec usrp_base::pick_subdev ( std::vector< int > candidates = std::vector< int >(0) )

Return an existing daughterboard from list of candidate dbids, or the first found on side A or side B.

Parameters:

candidates Vector of candidate dbids

Throws std::runtime_error if not found

int usrp_base::read_aux_adc	(	int	which_side,
		int	which_adc
	)

Read auxiliary analog to digital converter.

Parameters:

which_side	[0,1] which d'board
which_adc	[0,1]

Returns:: value in the range [0,4095] if successful, else READ_FAILED.

std::string usrp_base::read_eeprom	(	int	i2c_addr,
		int	eeprom_offset,
		int	len
	)

Read EEPROM on motherboard or any daughterboard.

Parameters:

i2c_addr	I2C bus address of EEPROM
eeprom_offset	byte offset in EEPROM to begin reading
len	number of bytes to read

Returns:: the data read if successful, else a zero length string.

std::string usrp_base::read_i2c	(	int	i2c_addr,
		int	len
	)

Read from I2C peripheral.

Parameters:

i2c_addr	I2C bus address (7-bits)
len	number of bytes to read

Returns:: the data read if successful, else a zero length string. Reads are limited to a maximum of 64 bytes.

int usrp_base::read_io ( int which_side )

Read daughterboard i/o pin value.

Parameters:

which_side [0,1] which d'board

Returns:: register value if successful, else READ_FAILED

db_base_sptr usrp_base::selected_subdev ( usrp_subdev_spec ss )

given a usrp_subdev_spec, return the corresponding daughterboard object.

Exceptions:

std::invalid_argument if ss is invalid.

Parameters:

ss	specifies the side and subdevice

std::string usrp_base::serial_number ( )

return the usrp's serial number.

Returns:: non-zero length string iff successful.

bool usrp_base::set_adc_buffer_bypass	(	int	which_adc,
		bool	bypass
	)

Control ADC input buffer.

Parameters:

which_adc	which ADC[0,3]
bypass	if non-zero, bypass input buffer and connect input directly to switched cap SHA input of RxPGA.

bool usrp_base::set_adc_offset	(	int	which_adc,
		int	offset
	)

Set ADC offset correction.

Parameters:

which_adc	which ADC[0,3]: 0 = RX_A I, 1 = RX_A Q...
offset	16-bit value to subtract from raw ADC input.

bool usrp_base::set_dac_offset	(	int	which_dac,
		int	offset,
		int	offset_pin
	)

Set DAC offset correction.

Parameters:

which_dac	which DAC[0,3]: 0 = TX_A I, 1 = TX_A Q...
offset	10-bit offset value (ambiguous format: See AD9862 datasheet).
offset_pin	1-bit value. If 0 offset applied to -ve differential pin; If 1 offset applied to +ve differential pin.

bool usrp_base::set_dc_offset_cl_enable	(	int	bits,
		int	mask
	)

Enable/disable automatic DC offset removal control loop in FPGA.

Parameters:

bits	which control loops to enable
mask	which `bits` to pay attention to

If the corresponding bit is set, enable the automatic DC offset correction control loop.

 The 4 low bits are significant:

   ADC0 = (1 << 0)
   ADC1 = (1 << 1)
   ADC2 = (1 << 2)
   ADC3 = (1 << 3)

By default the control loop is enabled on all ADC's.

void usrp_base::set_fpga_master_clock_freq ( long master_clock )

Tell API that the master oscillator on the USRP is operating at a non-standard fixed frequency. This is only needed for custom USRP hardware modified to operate at a different frequency from the default factory configuration. This function must be called prior to any other API function.

Parameters:

master_clock USRP2 FPGA master clock frequency in Hz (10..64 MHz)

bool usrp_base::set_pga	(	int	which_amp,
		double	gain_in_db
	)

Set Programmable Gain Amplifier (PGA)

Parameters:

which_amp	which amp [0,3]
gain_in_db	gain value (linear in dB)

gain is rounded to closest setting supported by hardware.

Returns:: true iff sucessful.

See also:: pga_min(), pga_max(), pga_db_per_step()

void usrp_base::set_usrp_basic ( boost::shared_ptr< usrp_basic > u ) [protected]

void usrp_base::set_verbose ( bool on )

bool usrp_base::write_atr_mask	(	int	which_side,
		int	value
	)

bool usrp_base::write_atr_rx_delay ( int value )

Clock ticks to delay falling edge of T/R signal.

See also:: write_atr_mask, write_atr_txval, write_atr_rxval

bool usrp_base::write_atr_rxval	(	int	which_side,
		int	value
	)

bool usrp_base::write_atr_tx_delay ( int value )

Clock ticks to delay rising of T/R signal.

See also:: write_atr_mask, write_atr_txval, write_atr_rxval

bool usrp_base::write_atr_txval	(	int	which_side,
		int	value
	)

bool usrp_base::write_aux_dac	(	int	which_side,
		int	which_dac,
		int	value
	)

Write auxiliary digital to analog converter.

Parameters:

which_side	[0,1] which d'board N.B., SLOT_TX_A and SLOT_RX_A share the same AUX DAC's. SLOT_TX_B and SLOT_RX_B share the same AUX DAC's.
which_dac	[2,3] TX slots must use only 2 and 3.
value	[0,4095]

Returns:: true iff successful

bool usrp_base::write_eeprom	(	int	i2c_addr,
		int	eeprom_offset,
		const std::string	buf
	)

Write EEPROM on motherboard or any daughterboard.

Parameters:

i2c_addr	I2C bus address of EEPROM
eeprom_offset	byte offset in EEPROM to begin writing
buf	the data to write

Returns:: true iff sucessful

bool usrp_base::write_i2c	(	int	i2c_addr,
		const std::string	buf
	)

Write to I2C peripheral.

Parameters:

i2c_addr	I2C bus address (7-bits)
buf	the data to write

Returns:: true iff successful Writes are limited to a maximum of of 64 bytes.

bool usrp_base::write_io	(	int	which_side,
		int	value,
		int	mask
	)

Write daughterboard i/o pin value.

Parameters:

which_side	[0,1] which d'board
value	value to write into register
mask	which bits of value to write into reg

bool usrp_base::write_refclk	(	int	which_side,
		int	value
	)

Write daughterboard refclk config register.

Parameters:

which_side	[0,1] which d'board
value	value to write into register, see below

 Control whether a reference clock is sent to the daughterboards,
 and what frequency.  The refclk is sent on d'board i/o pin 0.

     3                   2                   1
   1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0
  +-----------------------------------------------+-+------------+
  |             Reserved (Must be zero)           |E|   DIVISOR  |
  +-----------------------------------------------+-+------------+

  Bit 7  -- 1 turns on refclk, 0 allows IO use
  Bits 6:0 Divider value

Member Data Documentation

const int usrp_base::READ_FAILED = -99999 [static]

magic value used on alternate register read interfaces

The documentation for this class was generated from the following file:

usrp_base.h

Public Member Functions

Static Public Attributes

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
