gr::wxgui::oscope_sink_x Class Reference

Abstract class for python oscilloscope module.Don't instantiate this. Use gr::blocks::oscope_sink_f instead. More...

#include <oscope_sink_x.h>

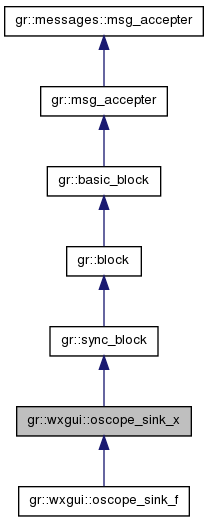

Inheritance diagram for gr::wxgui::oscope_sink_x:

List of all members.

Public Member Functions
virtual	~oscope_sink_x ()
bool	set_update_rate (double update_rate)
bool	set_decimation_count (int decimation_count)
bool	set_trigger_channel (int channel)
bool	set_trigger_mode (trigger_mode mode)
bool	set_trigger_slope (trigger_slope slope)
bool	set_trigger_level (double trigger_level)
bool	set_trigger_level_auto ()
bool	set_sample_rate (double sample_rate)
bool	set_num_channels (int nchannels)
int	num_channels () const
double	sample_rate () const
double	update_rate () const
int	get_decimation_count () const
int	get_trigger_channel () const
trigger_mode	get_trigger_mode () const
trigger_slope	get_trigger_slope () const
double	get_trigger_level () const
int	get_samples_per_output_record () const
virtual int	work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)=0
	just like gr::block::general_work, only this arranges to call consume_each for you
Protected Member Functions
	oscope_sink_x ()
	oscope_sink_x (const std::string name, gr::io_signature::sptr input_sig, double sampling_rate)
Protected Attributes
double	d_sampling_rate
oscope_guts *	d_guts

---

Detailed Description

Abstract class for python oscilloscope module.

Don't instantiate this. Use gr::blocks::oscope_sink_f instead.

---

Constructor & Destructor Documentation

gr::wxgui::oscope_sink_x::oscope_sink_x

(

)

[inline, protected]

gr::wxgui::oscope_sink_x::oscope_sink_x	(	const std::string	name,
		gr::io_signature::sptr	input_sig,
		double	sampling_rate
	)		[protected]

virtual gr::wxgui::oscope_sink_x::~oscope_sink_x

(

)

[virtual]

---

Member Function Documentation

int gr::wxgui::oscope_sink_x::get_decimation_count

(

)

const

int gr::wxgui::oscope_sink_x::get_samples_per_output_record

(

)

const

int gr::wxgui::oscope_sink_x::get_trigger_channel

(

)

const

double gr::wxgui::oscope_sink_x::get_trigger_level

(

)

const

trigger_mode gr::wxgui::oscope_sink_x::get_trigger_mode

(

)

const

trigger_slope gr::wxgui::oscope_sink_x::get_trigger_slope

(

)

const

int gr::wxgui::oscope_sink_x::num_channels

(

)

const

double gr::wxgui::oscope_sink_x::sample_rate

(

)

const

bool gr::wxgui::oscope_sink_x::set_decimation_count

(

int

decimation_count

)

bool gr::wxgui::oscope_sink_x::set_num_channels

(

int

nchannels

)

bool gr::wxgui::oscope_sink_x::set_sample_rate

(

double

sample_rate

)

bool gr::wxgui::oscope_sink_x::set_trigger_channel

(

int

channel

)

bool gr::wxgui::oscope_sink_x::set_trigger_level

(

double

trigger_level

)

bool gr::wxgui::oscope_sink_x::set_trigger_level_auto

(

)

bool gr::wxgui::oscope_sink_x::set_trigger_mode

(

trigger_mode

mode

)

bool gr::wxgui::oscope_sink_x::set_trigger_slope

(

trigger_slope

slope

)

bool gr::wxgui::oscope_sink_x::set_update_rate

(

double

update_rate

)

double gr::wxgui::oscope_sink_x::update_rate

(

)

const

virtual int gr::wxgui::oscope_sink_x::work	(	int	noutput_items,
		gr_vector_const_void_star &	input_items,
		gr_vector_void_star &	output_items
	)		[pure virtual]

just like gr::block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr::sync_block.

---

Member Data Documentation

oscope_guts* gr::wxgui::oscope_sink_x::d_guts [protected]

double gr::wxgui::oscope_sink_x::d_sampling_rate [protected]

---

The documentation for this class was generated from the following file:

• oscope_sink_x.h
