GNU Radio 3.7.1 C++ API
|
The abstract base class for all signal processing blocks.Basic blocks are the bare abstraction of an entity that has a name, a set of inputs and outputs, and a message queue. These are never instantiated directly; rather, this is the abstract parent class of both gr_hier_block, which is a recursive container, and block, which implements actual signal processing functions. More...

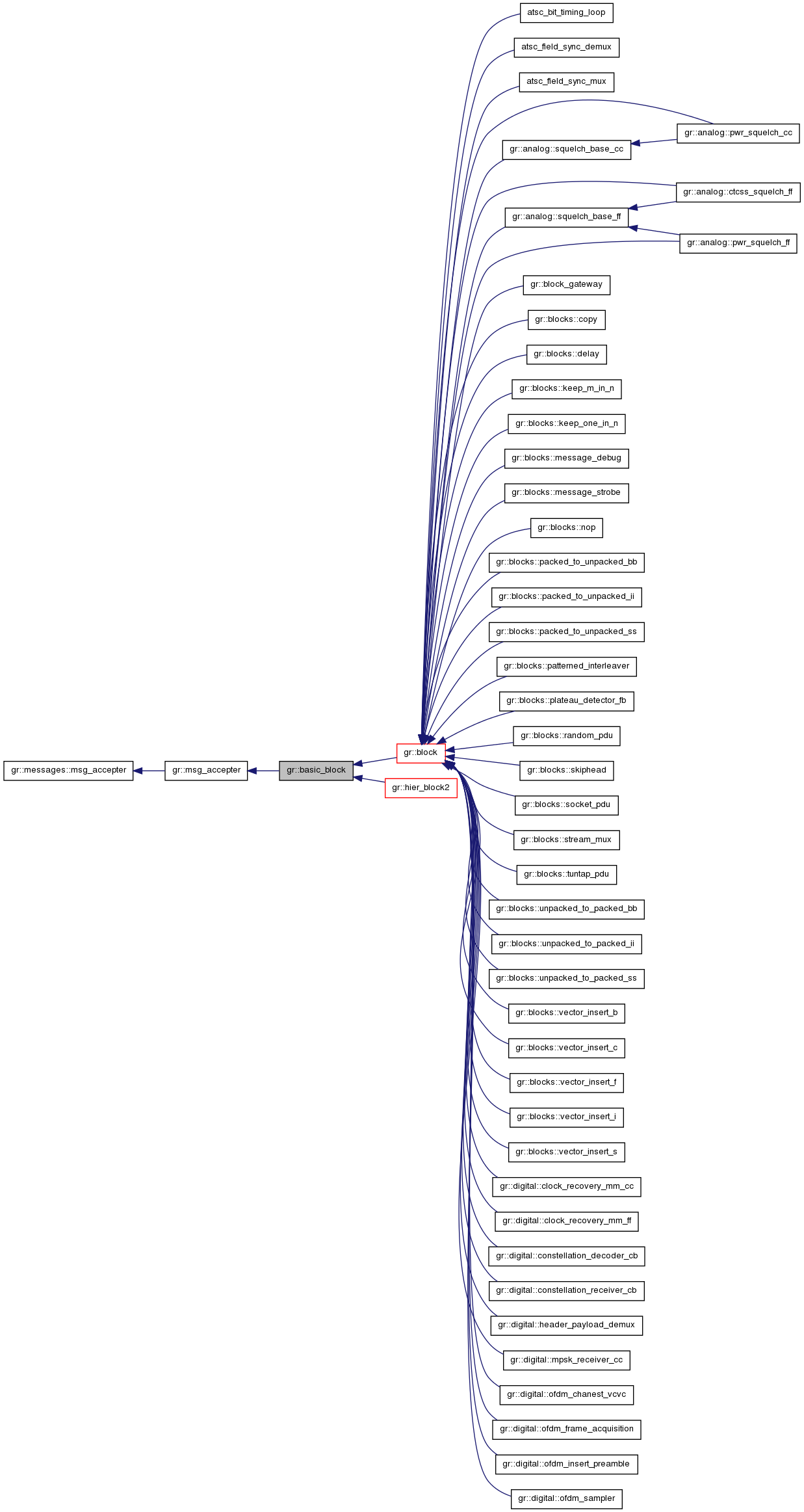

#include <basic_block.h>
Public Member Functions | |
virtual | ~basic_block () |
long | unique_id () const |
long | symbolic_id () const |
std::string | name () const |
std::string | symbol_name () const |
gr::io_signature::sptr | input_signature () const |
gr::io_signature::sptr | output_signature () const |
basic_block_sptr | to_basic_block () |
bool | alias_set () |
std::string | alias () |
pmt::pmt_t | alias_pmt () |
void | set_block_alias (std::string name) |
void | message_port_register_in (pmt::pmt_t port_id) |
void | message_port_register_out (pmt::pmt_t port_id) |
void | message_port_pub (pmt::pmt_t port_id, pmt::pmt_t msg) |
void | message_port_sub (pmt::pmt_t port_id, pmt::pmt_t target) |
void | message_port_unsub (pmt::pmt_t port_id, pmt::pmt_t target) |
virtual bool | message_port_is_hier (pmt::pmt_t port_id) |
virtual bool | message_port_is_hier_in (pmt::pmt_t port_id) |
virtual bool | message_port_is_hier_out (pmt::pmt_t port_id) |
pmt::pmt_t | message_ports_in () |
Get input message port names. | |
pmt::pmt_t | message_ports_out () |
Get output message port names. | |
void | _post (pmt::pmt_t which_port, pmt::pmt_t msg) |
bool | empty_p (pmt::pmt_t which_port) |
is the queue empty? | |
bool | empty_p () |
bool | empty_handled_p (pmt::pmt_t which_port) |
are all msg ports with handlers empty? | |
bool | empty_handled_p () |
size_t | nmsgs (pmt::pmt_t which_port) |
How many messages in the queue? | |
void | insert_tail (pmt::pmt_t which_port, pmt::pmt_t msg) |
pmt::pmt_t | delete_head_nowait (pmt::pmt_t which_port) |
pmt::pmt_t | delete_head_blocking (pmt::pmt_t which_port) |
msg_queue_t::iterator | get_iterator (pmt::pmt_t which_port) |
void | erase_msg (pmt::pmt_t which_port, msg_queue_t::iterator it) |
virtual bool | has_msg_port (pmt::pmt_t which_port) |
virtual void | setup_rpc () |
Set up the RPC registered variables. | |
bool | is_rpc_set () |
Ask if this block has been registered to the RPC. | |
void | rpc_set () |
When the block is registered with the RPC, set this. | |
virtual bool | check_topology (int ninputs, int noutputs) |
Confirm that ninputs and noutputs is an acceptable combination. | |
template<typename T > | |
void | set_msg_handler (pmt::pmt_t which_port, T msg_handler) |
Set the callback that is fired when messages are available. | |
virtual void | set_processor_affinity (const std::vector< int > &mask) |
virtual void | unset_processor_affinity () |
virtual std::vector< int > | processor_affinity () |
Protected Types | |
enum | vcolor { WHITE, GREY, BLACK } |
Protected Member Functions | |
basic_block (void) | |
basic_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature) | |
Protected constructor prevents instantiation by non-derived classes. | |
void | set_input_signature (gr::io_signature::sptr iosig) |
may only be called during constructor | |
void | set_output_signature (gr::io_signature::sptr iosig) |
may only be called during constructor | |
void | set_color (vcolor color) |
Allow the flowgraph to set for sorting and partitioning. | |
vcolor | color () const |
virtual bool | has_msg_handler (pmt::pmt_t which_port) |
Tests if there is a handler attached to port which_port . | |
virtual void | dispatch_msg (pmt::pmt_t which_port, pmt::pmt_t msg) |
Protected Attributes | |
std::string | d_name |
gr::io_signature::sptr | d_input_signature |
gr::io_signature::sptr | d_output_signature |
long | d_unique_id |
long | d_symbolic_id |
std::string | d_symbol_name |
std::string | d_symbol_alias |
vcolor | d_color |
bool | d_rpc_set |
msg_queue_map_t | msg_queue |
std::vector< boost::any > | d_rpc_vars |
pmt::pmt_t | message_subscribers |
Friends | |
class | flowgraph |
class | flat_flowgraph |
class | tpb_thread_body |
The abstract base class for all signal processing blocks.
Basic blocks are the bare abstraction of an entity that has a name, a set of inputs and outputs, and a message queue. These are never instantiated directly; rather, this is the abstract parent class of both gr_hier_block, which is a recursive container, and block, which implements actual signal processing functions.
enum gr::basic_block::vcolor [protected] |
gr::basic_block::basic_block | ( | void | ) | [inline, protected] |
gr::basic_block::basic_block | ( | const std::string & | name, |
gr::io_signature::sptr | input_signature, | ||
gr::io_signature::sptr | output_signature | ||
) | [protected] |
Protected constructor prevents instantiation by non-derived classes.
virtual gr::basic_block::~basic_block | ( | ) | [virtual] |
void gr::basic_block::_post | ( | pmt::pmt_t | which_port, |
pmt::pmt_t | msg | ||
) |
Accept msg, place in queue, arrange for thread to be awakened if it's not already.
std::string gr::basic_block::alias | ( | ) | [inline] |
pmt::pmt_t gr::basic_block::alias_pmt | ( | ) | [inline] |
References pmt::intern().
bool gr::basic_block::alias_set | ( | ) | [inline] |
virtual bool gr::basic_block::check_topology | ( | int | ninputs, |
int | noutputs | ||
) | [inline, virtual] |
Confirm that ninputs and noutputs is an acceptable combination.
ninputs | number of input streams connected |
noutputs | number of output streams connected |
This function is called by the runtime system whenever the topology changes. Most classes do not need to override this. This check is in addition to the constraints specified by the input and output gr::io_signatures.
References void().
vcolor gr::basic_block::color | ( | ) | const [inline, protected] |
pmt::pmt_t gr::basic_block::delete_head_blocking | ( | pmt::pmt_t | which_port | ) |
pmt::pmt_t gr::basic_block::delete_head_nowait | ( | pmt::pmt_t | which_port | ) |
virtual void gr::basic_block::dispatch_msg | ( | pmt::pmt_t | which_port, |
pmt::pmt_t | msg | ||
) | [inline, protected, virtual] |
Reimplemented in gr::block_gateway.
Referenced by gr::block_gateway::dispatch_msg().
bool gr::basic_block::empty_handled_p | ( | pmt::pmt_t | which_port | ) | [inline] |
are all msg ports with handlers empty?
bool gr::basic_block::empty_handled_p | ( | ) | [inline] |
bool gr::basic_block::empty_p | ( | pmt::pmt_t | which_port | ) | [inline] |
is the queue empty?
bool gr::basic_block::empty_p | ( | ) | [inline] |
void gr::basic_block::erase_msg | ( | pmt::pmt_t | which_port, |
msg_queue_t::iterator | it | ||
) | [inline] |
msg_queue_t::iterator gr::basic_block::get_iterator | ( | pmt::pmt_t | which_port | ) | [inline] |
virtual bool gr::basic_block::has_msg_handler | ( | pmt::pmt_t | which_port | ) | [inline, protected, virtual] |
Tests if there is a handler attached to port which_port
.
Reimplemented in gr::block_gateway.
virtual bool gr::basic_block::has_msg_port | ( | pmt::pmt_t | which_port | ) | [inline, virtual] |
Reimplemented in gr::hier_block2.
References pmt::dict_has_key().
Referenced by gr::hier_block2::has_msg_port().
gr::io_signature::sptr gr::basic_block::input_signature | ( | ) | const [inline] |
void gr::basic_block::insert_tail | ( | pmt::pmt_t | which_port, |
pmt::pmt_t | msg | ||
) |
bool gr::basic_block::is_rpc_set | ( | ) | [inline] |
Ask if this block has been registered to the RPC.
We can only register a block once, so we use this to protect us from calling it multiple times.
virtual bool gr::basic_block::message_port_is_hier | ( | pmt::pmt_t | port_id | ) | [inline, virtual] |
Reimplemented in gr::hier_block2.
References void().
virtual bool gr::basic_block::message_port_is_hier_in | ( | pmt::pmt_t | port_id | ) | [inline, virtual] |
Reimplemented in gr::hier_block2.
References void().
virtual bool gr::basic_block::message_port_is_hier_out | ( | pmt::pmt_t | port_id | ) | [inline, virtual] |
Reimplemented in gr::hier_block2.
References void().
void gr::basic_block::message_port_pub | ( | pmt::pmt_t | port_id, |
pmt::pmt_t | msg | ||
) |
Referenced by gr::block_gateway::block__message_port_pub().
Referenced by gr::block_gateway::block__message_port_register_in().
Referenced by gr::block_gateway::block__message_port_register_out().
void gr::basic_block::message_port_sub | ( | pmt::pmt_t | port_id, |
pmt::pmt_t | target | ||
) |
Referenced by gr::block_gateway::block__message_port_sub().
void gr::basic_block::message_port_unsub | ( | pmt::pmt_t | port_id, |
pmt::pmt_t | target | ||
) |
Referenced by gr::block_gateway::block__message_port_unsub().
Get input message port names.
Returns the available input message ports for a block. The return object is a PMT vector that is filled with PMT symbols.
Referenced by gr::block_gateway::block__message_ports_in().
Get output message port names.
Returns the available output message ports for a block. The return object is a PMT vector that is filled with PMT symbols.
Referenced by gr::block_gateway::block__message_ports_out().
std::string gr::basic_block::name | ( | ) | const [inline] |
size_t gr::basic_block::nmsgs | ( | pmt::pmt_t | which_port | ) | [inline] |
How many messages in the queue?
gr::io_signature::sptr gr::basic_block::output_signature | ( | ) | const [inline] |
virtual std::vector<int> gr::basic_block::processor_affinity | ( | ) | [inline, virtual] |
Reimplemented in gr::block, and gr::hier_block2.
void gr::basic_block::rpc_set | ( | ) | [inline] |
When the block is registered with the RPC, set this.
void gr::basic_block::set_block_alias | ( | std::string | name | ) |
void gr::basic_block::set_color | ( | vcolor | color | ) | [inline, protected] |
Allow the flowgraph to set for sorting and partitioning.
void gr::basic_block::set_input_signature | ( | gr::io_signature::sptr | iosig | ) | [inline, protected] |
may only be called during constructor
void gr::basic_block::set_msg_handler | ( | pmt::pmt_t | which_port, |
T | msg_handler | ||
) | [inline] |
Set the callback that is fired when messages are available.
msg_handler
can be any kind of function pointer or function object that has the signature:
void msg_handler(pmt::pmt msg);
(You may want to use boost::bind to massage your callable into the correct form. See gr::blocks::nop for an example that sets up a class method as the callback.)
Blocks that desire to handle messages must call this method in their constructors to register the handler that will be invoked when messages are available.
If the block inherits from block, the runtime system will ensure that msg_handler is called in a thread-safe manner, such that work and msg_handler will never be called concurrently. This allows msg_handler to update state variables without having to worry about thread-safety issues with work, general_work or another invocation of msg_handler.
If the block inherits from hier_block2, the runtime system will ensure that no reentrant calls are made to msg_handler.
void gr::basic_block::set_output_signature | ( | gr::io_signature::sptr | iosig | ) | [inline, protected] |
may only be called during constructor
virtual void gr::basic_block::set_processor_affinity | ( | const std::vector< int > & | mask | ) | [inline, virtual] |
Reimplemented in gr::block, and gr::hier_block2.
virtual void gr::basic_block::setup_rpc | ( | ) | [inline, virtual] |
Set up the RPC registered variables.
This must be overloaded by a block that wants to use controlport. This is where rpcbasic_register_{get,set} pointers are created, which then get wrapped as shared pointers (rpcbasic_sptr(...)) and stored using add_rpc_variable.
Reimplemented in gr::top_block, and gr::fft::ctrlport_probe_psd_impl.
std::string gr::basic_block::symbol_name | ( | ) | const [inline] |
long gr::basic_block::symbolic_id | ( | ) | const [inline] |
long gr::basic_block::unique_id | ( | ) | const [inline] |
Referenced by gr::block_gateway::block__unique_id().
virtual void gr::basic_block::unset_processor_affinity | ( | ) | [inline, virtual] |
Reimplemented in gr::block, and gr::hier_block2.
friend class flat_flowgraph [friend] |
friend class flowgraph [friend] |
friend class tpb_thread_body [friend] |
vcolor gr::basic_block::d_color [protected] |
std::string gr::basic_block::d_name [protected] |
bool gr::basic_block::d_rpc_set [protected] |
std::vector<boost::any> gr::basic_block::d_rpc_vars [protected] |
std::string gr::basic_block::d_symbol_alias [protected] |
std::string gr::basic_block::d_symbol_name [protected] |
long gr::basic_block::d_symbolic_id [protected] |
long gr::basic_block::d_unique_id [protected] |
pmt::pmt_t gr::basic_block::message_subscribers [protected] |
msg_queue_map_t gr::basic_block::msg_queue [protected] |
