Block that operates on PDUs in form of tagged streamsOverride work to provide the signal processing implementation. More...

#include <tagged_stream_block.h>

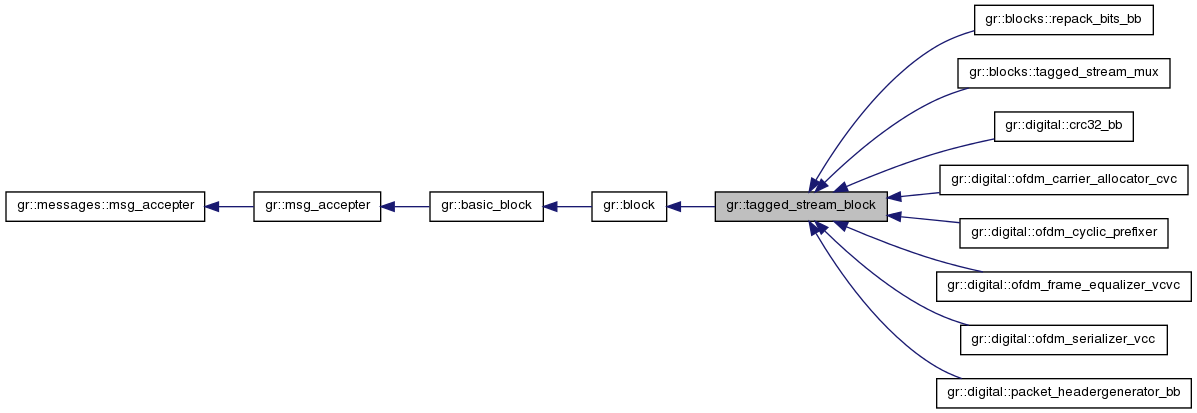

Inheritance diagram for gr::tagged_stream_block:

[legend]

List of all members.

Public Member Functions
void	forecast (int noutput_items, gr_vector_int &ninput_items_required)
	Don't override this.
int	general_work (int noutput_items, gr_vector_int &ninput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
virtual int	work (int noutput_items, gr_vector_int &ninput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)=0
	Just like gr::block::general_work, but makes sure the input is valid.
Protected Member Functions
	tagged_stream_block (void)
	tagged_stream_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature, const std::string &length_tag_key)
virtual void	parse_length_tags (const std::vector< std::vector< tag_t > > &tags, gr_vector_int &n_input_items_reqd)
	Parse all tags on the first sample of a PDU, return the number of items per input and prune the length tags.
virtual int	calculate_output_stream_length (const gr_vector_int &ninput_items)
	Calculate the number of output items.
virtual void	update_length_tags (int n_produced, int n_ports)
	Set the new length tags on the output stream.
Protected Attributes
std::string	d_length_tag_key_str

Detailed Description

Block that operates on PDUs in form of tagged streams

Override work to provide the signal processing implementation.

Constructor & Destructor Documentation

gr::tagged_stream_block::tagged_stream_block ( void ) [inline, protected]

gr::tagged_stream_block::tagged_stream_block	(	const std::string &	name,
		gr::io_signature::sptr	input_signature,
		gr::io_signature::sptr	output_signature,
		const std::string &	length_tag_key
	)		`[protected]`

Member Function Documentation

virtual int gr::tagged_stream_block::calculate_output_stream_length ( const gr_vector_int & ninput_items ) [protected, virtual]

Calculate the number of output items.

This is basically the inverse function to forecast(): Given a number of input items, it returns the maximum number of output items.

You most likely need to override this function, unless your block is a sync block or integer interpolator/decimator.

void gr::tagged_stream_block::forecast	(	int	noutput_items,
		gr_vector_int &	ninput_items_required
	)		`[virtual]`

Don't override this.

Reimplemented from gr::block.

int gr::tagged_stream_block::general_work	(	int	noutput_items,
		gr_vector_int &	ninput_items,
		gr_vector_const_void_star &	input_items,
		gr_vector_void_star &	output_items
	)		`[virtual]`

Reads the number of input items from the tags using parse_length_tags()
Checks there's enough data on the input and output buffers
If not, inform the scheduler and do nothing
Calls work() with the exact number of items per PDU
Updates the tags using update_length_tags()

Reimplemented from gr::block.

virtual void gr::tagged_stream_block::parse_length_tags	(	const std::vector< std::vector< tag_t > > &	tags,
		gr_vector_int &	n_input_items_reqd
	)		`[protected, virtual]`

Parse all tags on the first sample of a PDU, return the number of items per input and prune the length tags.

In most cases, you don't need to override this, unless the number of items read is not directly coded in one single tag.

Default behaviour:

Go through all input ports
On every input port, search for the tag with the key specified in length_tag_key
Copy that value as an int to the corresponding position in n_input_items_reqd
Remove the length tag.

Parameters:

[in]	tags	All the tags found on the first item of every input port.
[out]	n_input_items_reqd	Number of items which will be read from every input

virtual void gr::tagged_stream_block::update_length_tags	(	int	n_produced,
		int	n_ports
	)		`[protected, virtual]`

Set the new length tags on the output stream.

Default behaviour: Set a tag with key length_tag_key and the number of produced items on every output port.

For anything else, override this.

Parameters:

n_produced	Length of the new PDU
n_ports	Number of output ports

virtual int gr::tagged_stream_block::work	(	int	noutput_items,
		gr_vector_int &	ninput_items,
		gr_vector_const_void_star &	input_items,
		gr_vector_void_star &	output_items
	)		`[pure virtual]`

Just like gr::block::general_work, but makes sure the input is valid.

The user must override work to define the signal processing code. Check the documentation for general_work() to see what happens here.

Like gr::sync_block, this calls consume() for you (it consumes ninput_items[i] items from the i-th port).

A note on tag propagation: The PDU length tags are handled by other functions, but all other tags are handled just as in any other gr::block. So, most likely, you either set the tag propagation policy to TPP_DONT and handle the tag propagation manually, or you propagate tags through the scheduler and don't do anything here.

Parameters:

noutput_items	The size of the writable output buffer
ninput_items	The exact size of the items on every input for this particular PDU. These will be consumed if a length tag key is provided!
input_items	See gr::block
output_items	See gr::block

Member Data Documentation

std::string gr::tagged_stream_block::d_length_tag_key_str [protected]

The documentation for this class was generated from the following file:

tagged_stream_block.h
