gr::sync_interpolator Class Reference

synchronous 1:N input to output with historyOverride work to provide the signal processing implementation. More...

#include <sync_interpolator.h>

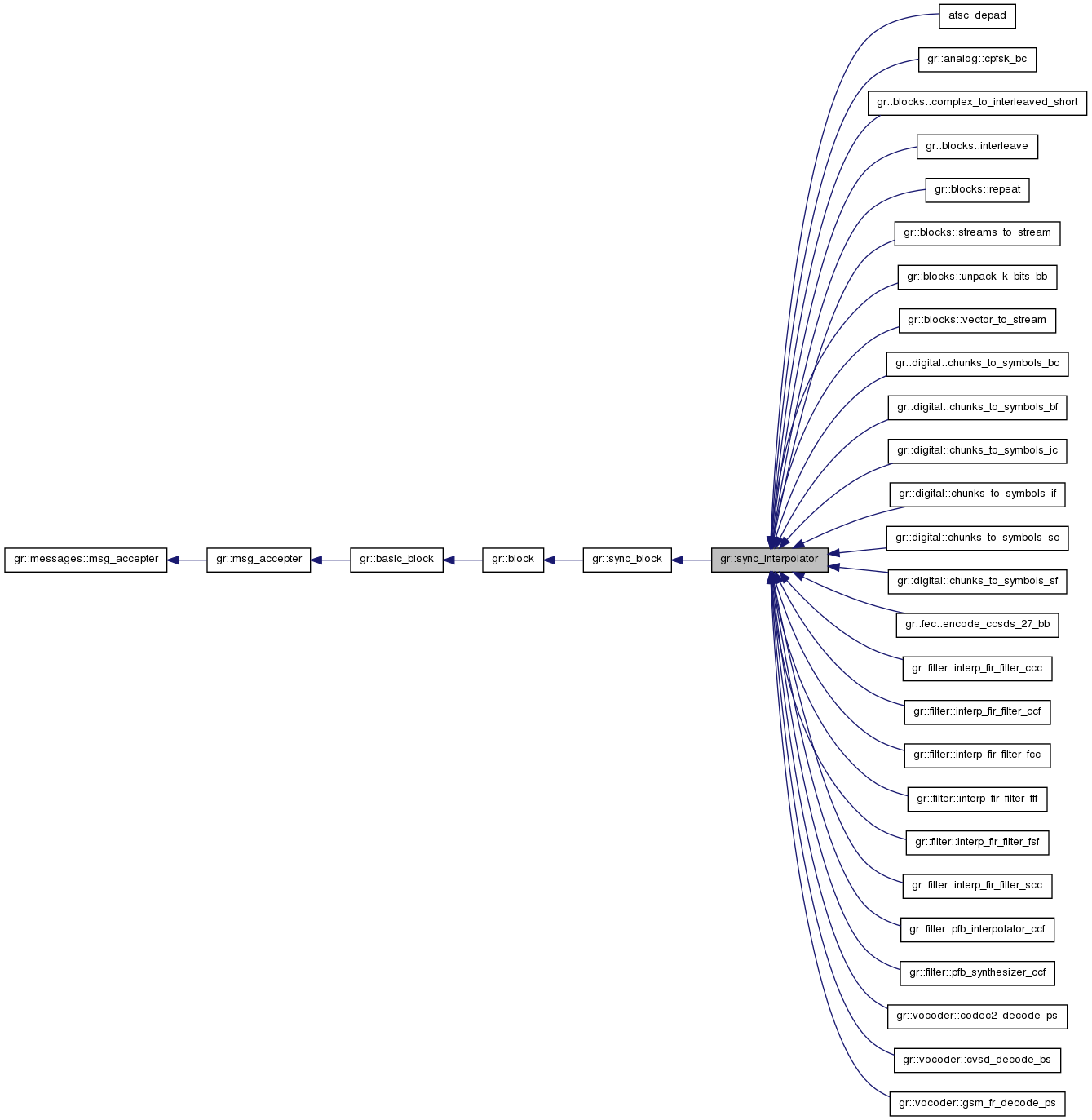

Inheritance diagram for gr::sync_interpolator:

List of all members.

Public Member Functions
unsigned	interpolation () const
void	set_interpolation (unsigned interpolation)
void	forecast (int noutput_items, gr_vector_int &ninput_items_required)
	Estimate input requirements given output request.
int	general_work (int noutput_items, gr_vector_int &ninput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
	compute output items from input items
int	fixed_rate_ninput_to_noutput (int ninput)
	Given ninput samples, return number of output samples that will be produced. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this.
int	fixed_rate_noutput_to_ninput (int noutput)
	Given noutput samples, return number of input samples required to produce noutput. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this.
Protected Member Functions
	sync_interpolator (void)
	sync_interpolator (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature, unsigned interpolation)

---

Detailed Description

synchronous 1:N input to output with history

Override work to provide the signal processing implementation.

---

Constructor & Destructor Documentation

gr::sync_interpolator::sync_interpolator

(

void

)

[inline, protected]

gr::sync_interpolator::sync_interpolator	(	const std::string &	name,
		gr::io_signature::sptr	input_signature,
		gr::io_signature::sptr	output_signature,
		unsigned	interpolation
	)		[protected]

---

Member Function Documentation

int gr::sync_interpolator::fixed_rate_ninput_to_noutput

(

int

ninput

)

[virtual]

Given ninput samples, return number of output samples that will be produced. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this.

Reimplemented from gr::sync_block.

int gr::sync_interpolator::fixed_rate_noutput_to_ninput

(

int

noutput

)

[virtual]

Given noutput samples, return number of input samples required to produce noutput. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this.

Reimplemented from gr::sync_block.

void gr::sync_interpolator::forecast	(	int	noutput_items,
		gr_vector_int &	ninput_items_required
	)		[virtual]

Estimate input requirements given output request.

Parameters:

noutput_items	number of output items to produce
ninput_items_required	number of input items required on each input stream

Given a request to product noutput_items, estimate the number of data items required on each input stream. The estimate doesn't have to be exact, but should be close.

Reimplemented from gr::sync_block.

int gr::sync_interpolator::general_work	(	int	noutput_items,
		gr_vector_int &	ninput_items,
		gr_vector_const_void_star &	input_items,
		gr_vector_void_star &	output_items
	)		[virtual]

compute output items from input items

Parameters:

noutput_items	number of output items to write on each output stream
ninput_items	number of input items available on each input stream
input_items	vector of pointers to the input items, one entry per input stream
output_items	vector of pointers to the output items, one entry per output stream

Returns:

number of items actually written to each output stream, or -1 on EOF. It is OK to return a value less than noutput_items. -1 <= return value <= noutput_items

general_work must call consume or consume_each to indicate how many items were consumed on each input stream.

Reimplemented from gr::sync_block.

unsigned gr::sync_interpolator::interpolation

(

)

const [inline]

void gr::sync_interpolator::set_interpolation

(

unsigned

interpolation

)

[inline]

---

The documentation for this class was generated from the following file:

• sync_interpolator.h
