gr::fft::ctrlport_probe_psd_impl Class Reference

#include <ctrlport_probe_psd_impl.h>

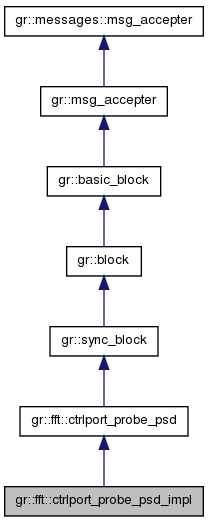

Inheritance diagram for gr::fft::ctrlport_probe_psd_impl:

List of all members.

Public Member Functions
	ctrlport_probe_psd_impl (const std::string &id, const std::string &desc, int len)
	~ctrlport_probe_psd_impl ()
void	setup_rpc ()
	Set up the RPC registered variables.
void	forecast (int noutput_items, gr_vector_int &ninput_items_required)
	Estimate input requirements given output request.
std::vector< gr_complex >	get ()
void	set_length (int len)
int	length () const
int	work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
	just like gr::block::general_work, only this arranges to call consume_each for you

---

Constructor & Destructor Documentation

gr::fft::ctrlport_probe_psd_impl::ctrlport_probe_psd_impl	(	const std::string &	id,
		const std::string &	desc,
		int	len
	)

gr::fft::ctrlport_probe_psd_impl::~ctrlport_probe_psd_impl

(

)

---

Member Function Documentation

void gr::fft::ctrlport_probe_psd_impl::forecast	(	int	noutput_items,
		gr_vector_int &	ninput_items_required
	)		[virtual]

Estimate input requirements given output request.

Parameters:

noutput_items	number of output items to produce
ninput_items_required	number of input items required on each input stream

Given a request to product noutput_items, estimate the number of data items required on each input stream. The estimate doesn't have to be exact, but should be close.

Reimplemented from gr::sync_block.

std::vector<gr_complex> gr::fft::ctrlport_probe_psd_impl::get

(

)

[virtual]

Implements gr::fft::ctrlport_probe_psd.

int gr::fft::ctrlport_probe_psd_impl::length

(

)

const [virtual]

Implements gr::fft::ctrlport_probe_psd.

void gr::fft::ctrlport_probe_psd_impl::set_length

(

int

len

)

[virtual]

Implements gr::fft::ctrlport_probe_psd.

void gr::fft::ctrlport_probe_psd_impl::setup_rpc

(

)

[virtual]

Set up the RPC registered variables.

This must be overloaded by a block that wants to use controlport. This is where rpcbasic_register_{get,set} pointers are created, which then get wrapped as shared pointers (rpcbasic_sptr(...)) and stored using add_rpc_variable.

Reimplemented from gr::basic_block.

int gr::fft::ctrlport_probe_psd_impl::work	(	int	noutput_items,
		gr_vector_const_void_star &	input_items,
		gr_vector_void_star &	output_items
	)		[virtual]

just like gr::block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr::sync_block.

---

The documentation for this class was generated from the following file:

• ctrlport_probe_psd_impl.h
