Implements a PLL which locks to the input frequency and outputs a carrierinput: stream of complex; output: stream of complex. More...

#include <gr_pll_refout_cc.h>

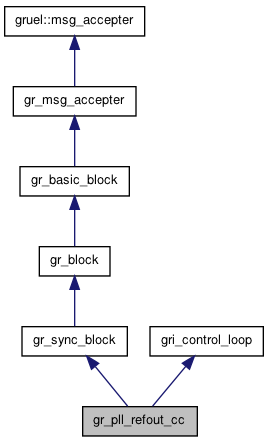

Inheritance diagram for gr_pll_refout_cc:

[legend]

List of all members.

Friends
GR_CORE_API gr_pll_refout_cc_sptr	gr_make_pll_refout_cc (float loop_bw, float max_freq, float min_freq)

Detailed Description

Implements a PLL which locks to the input frequency and outputs a carrier

input: stream of complex; output: stream of complex.

This PLL locks onto a [possibly noisy] reference carrier on the input and outputs a clean version which is phase and frequency aligned to it.

All settings max_freq and min_freq are in terms of radians per sample, NOT HERTZ. The loop bandwidth determins the lock range and should be set around pi/200 -- 2pi/100.

See also:: gr_pll_freqdet_cf, gr_pll_carriertracking_cc

Friends And Related Function Documentation

GR_CORE_API gr_pll_refout_cc_sptr gr_make_pll_refout_cc	(	float	loop_bw,
		float	max_freq,
		float	min_freq
	)		`[friend]`

The documentation for this class was generated from the following file:

gr_pll_refout_cc.h
