gr_pll_freqdet_cf Class Reference

Implements a PLL which locks to the input frequency and outputs an estimate of that frequency. Useful for FM Demod.input: stream of complex; output: stream of floats. More...

#include <gr_pll_freqdet_cf.h>

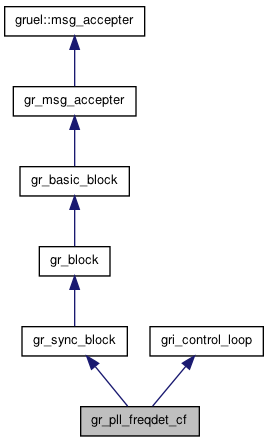

Inheritance diagram for gr_pll_freqdet_cf:

List of all members.

Friends

GR_CORE_API gr_pll_freqdet_cf_sptr gr_make_pll_freqdet_cf (float loop_bw, float max_freq, float min_freq)

Detailed Description

Implements a PLL which locks to the input frequency and outputs an estimate of that frequency. Useful for FM Demod.

input: stream of complex; output: stream of floats.

This PLL locks onto a [possibly noisy] reference carrier on the input and outputs an estimate of that frequency in radians per sample. All settings max_freq and min_freq are in terms of radians per sample, NOT HERTZ. The loop bandwidth determins the lock range and should be set around pi/200 -- 2pi/100.

See also:
gr_pll_refout_cc, gr_pll_carriertracking_cc

Friends And Related Function Documentation

GR_CORE_API gr_pll_freqdet_cf_sptr gr_make_pll_freqdet_cf ( float  loop_bw,
float  max_freq,
float  min_freq
) [friend]

The documentation for this class was generated from the following file:
