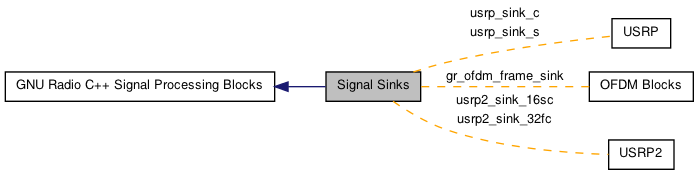

Collaboration diagram for Signal Sinks:
|
Classes | |
| class | gr_bin_statistics_f |
| control scanning and record frequency domain statistics More... | |
| class | gr_check_counting_s |
| sink that checks if its input stream consists of a counting sequence. More... | |
| class | gr_check_lfsr_32k_s |
| sink that checks if its input stream consists of a lfsr_32k sequence.This sink is typically used along with gr_lfsr_32k_source_s to test the USRP using its digital loopback mode. More... | |
| class | gr_framer_sink_1 |
| Given a stream of bits and access_code flags, assemble packets.input: stream of bytes from gr_correlate_access_code_bb output: none. Pushes assembled packet into target queue. More... | |
| class | gr_null_sink |
| Bit bucket. More... | |
| class | gr_ofdm_frame_sink |
| Takes an OFDM symbol in, demaps it into bits of 0's and 1's, packs them into packets, and sends to to a message queue sink.NOTE: The mod input parameter simply chooses a pre-defined demapper/slicer. Eventually, we want to be able to pass in a reference to an object to do the demapping and slicing for a given modulation type. More... | |
| class | gr_packet_sink |
| process received bits looking for packet sync, header, and process bits into packet More... | |
| class | gr_probe_avg_mag_sqrd_c |
| compute avg magnitude squared.input: gr_complex More... | |
| class | gr_probe_avg_mag_sqrd_cf |
| compute avg magnitude squared.input: gr_complex output: gr_float More... | |
| class | gr_probe_avg_mag_sqrd_f |
| compute avg magnitude squared.input: float More... | |
| class | gr_probe_mpsk_snr_c |
| class | gr_probe_signal_f |
| Sink that allows a sample to be grabbed from Python. More... | |
| class | gr_file_descriptor_sink |
| Write stream to file descriptor. More... | |
| class | gr_file_sink |
| Write stream to file. More... | |
| class | gr_histo_sink_f |
| Histogram module. More... | |
| class | gr_message_sink |
| Gather received items into messages and insert into msgq. More... | |
| class | gr_oscope_sink_f |
| Building block for python oscilloscope module.Accepts multiple float streams. More... | |
| class | gr_oscope_sink_x |
| Abstract class for python oscilloscope module.Don't instantiate this. Use gr_oscope_sink_f or gr_oscope_sink_c instead. More... | |
| class | gr_tagged_file_sink |
| Write stream to file descriptor. More... | |
| class | gr_udp_sink |
| Write stream to an UDP socket. More... | |
| class | gr_wavfile_sink |
| Read stream from a Microsoft PCM (.wav) file, output floats. More... | |
| class | usrp_sink_c |
| Interface to Universal Software Radio Peripheral Tx pathinput: gr_complex. More... | |
| class | usrp_sink_s |
| Interface to Universal Software Radio Peripheral Tx pathinput: short. More... | |
| class | usrp2_sink_16sc |
| class | usrp2_sink_32fc |
| class | gr_vector_sink_b |
| unsigned char sink that writes to a vector More... | |
| class | gr_vector_sink_c |
| gr_complex sink that writes to a vector More... | |
| class | gr_vector_sink_f |
| float sink that writes to a vector More... | |
| class | gr_vector_sink_i |
| int sink that writes to a vector More... | |
| class | gr_vector_sink_s |
| short sink that writes to a vector More... | |
