Examine input for specified access code, one bit at a time.input: stream of bits, 1 bit per input byte (data in LSB) output: stream of bits, 2 bits per output byte (data in LSB, flag in next higher bit) More...
#include <gr_correlate_access_code_bb.h>
Public Member Functions | |
| ~gr_correlate_access_code_bb () | |
| int | work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items) |
| just like gr_block::general_work, only this arranges to call consume_each for you | |
| bool | set_access_code (const std::string &access_code) |
Protected Member Functions | |
| gr_correlate_access_code_bb (const std::string &access_code, int threshold) | |
Friends | |
| gr_correlate_access_code_bb_sptr | gr_make_correlate_access_code_bb (const std::string &access_code, int threshold) |
Detailed Description
Examine input for specified access code, one bit at a time.
input: stream of bits, 1 bit per input byte (data in LSB) output: stream of bits, 2 bits per output byte (data in LSB, flag in next higher bit)
Each output byte contains two valid bits, the data bit, and the flag bit. The LSB (bit 0) is the data bit, and is the original input data, delayed 64 bits. Bit 1 is the flag bit and is 1 if the corresponding data bit is the first data bit following the access code. Otherwise the flag bit is 0.
Constructor & Destructor Documentation
| gr_correlate_access_code_bb::gr_correlate_access_code_bb | ( | const std::string & | access_code, |
| int | threshold | ||
| ) | [protected] |
| gr_correlate_access_code_bb::~gr_correlate_access_code_bb | ( | ) |
Member Function Documentation
| bool gr_correlate_access_code_bb::set_access_code | ( | const std::string & | access_code | ) |
- Parameters:
-
access_code is represented with 1 byte per bit, e.g., "010101010111000100"
| int gr_correlate_access_code_bb::work | ( | int | noutput_items, |
| gr_vector_const_void_star & | input_items, | ||
| gr_vector_void_star & | output_items | ||
| ) | [virtual] |
just like gr_block::general_work, only this arranges to call consume_each for you
The user must override work to define the signal processing code

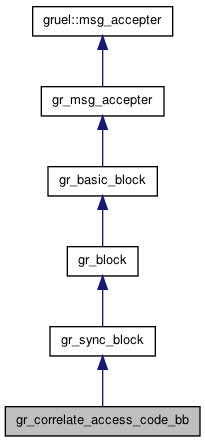

Implements gr_sync_block.
Friends And Related Function Documentation
| gr_correlate_access_code_bb_sptr gr_make_correlate_access_code_bb | ( | const std::string & | access_code, |
| int | threshold | ||
| ) | [friend] |
- Parameters:
-
access_code is represented with 1 byte per bit, e.g., "010101010111000100" threshold maximum number of bits that may be wrong
The documentation for this class was generated from the following file:
