A graphical sink to display multiple signals in frequency. More...

#include <gnuradio/qtgui/freq_sink_c.h>

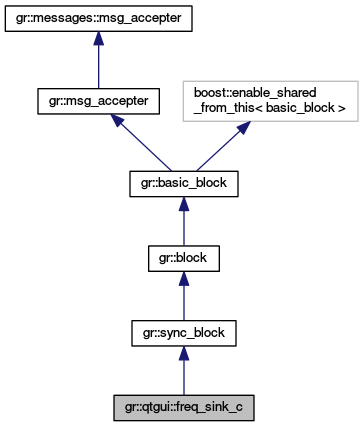

Inheritance diagram for gr::qtgui::freq_sink_c:

Public Types
typedef boost::shared_ptr < freq_sink_c >	sptr

Public Types inherited from gr::block
enum	{ WORK_CALLED_PRODUCE = -2, WORK_DONE = -1 }
	Magic return values from general_work. More...

enum	tag_propagation_policy_t { TPP_DONT = 0, TPP_ALL_TO_ALL = 1, TPP_ONE_TO_ONE = 2 }

Public Member Functions
virtual void	exec_ ()=0

virtual void	set_fft_size (const int fftsize)=0

virtual int	fft_size () const =0

virtual void	set_fft_average (const float fftavg)=0

virtual float	fft_average () const =0

virtual void	set_fft_window (const gr::filter::firdes::win_type win)=0

virtual gr::filter::firdes::win_type	fft_window ()=0

virtual void	set_frequency_range (const double centerfreq, const double bandwidth)=0

virtual void	set_y_axis (double min, double max)=0

virtual void	set_update_time (double t)=0

virtual void	set_title (const std::string &title)=0

virtual void	set_line_label (int which, const std::string &label)=0

virtual void	set_line_color (int which, const std::string &color)=0

virtual void	set_line_width (int which, int width)=0

virtual void	set_line_style (int which, int style)=0

virtual void	set_line_marker (int which, int marker)=0

virtual void	set_line_alpha (int which, double alpha)=0

virtual std::string	title ()=0

virtual std::string	line_label (int which)=0

virtual std::string	line_color (int which)=0

virtual int	line_width (int which)=0

virtual int	line_style (int which)=0

virtual int	line_marker (int which)=0

virtual double	line_alpha (int which)=0

virtual void	set_size (int width, int height)=0

virtual void	enable_menu (bool en=true)=0

virtual void	enable_grid (bool en=true)=0

virtual void	enable_autoscale (bool en=true)=0

virtual void	reset ()=0

Public Member Functions inherited from gr::sync_block
virtual int	work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)=0
	just like gr::block::general_work, only this arranges to call consume_each for you More...

void	forecast (int noutput_items, gr_vector_int &ninput_items_required)
	Estimate input requirements given output request. More...

int	general_work (int noutput_items, gr_vector_int &ninput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
	compute output items from input items More...

int	fixed_rate_ninput_to_noutput (int ninput)
	Given ninput samples, return number of output samples that will be produced. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this. More...

int	fixed_rate_noutput_to_ninput (int noutput)
	Given noutput samples, return number of input samples required to produce noutput. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this. More...

Public Member Functions inherited from gr::block
virtual	~block ()

unsigned	history () const

void	set_history (unsigned history)

void	declare_sample_delay (int which, unsigned delay)

void	declare_sample_delay (unsigned delay)

unsigned	sample_delay (int which) const

bool	fixed_rate () const
	Return true if this block has a fixed input to output rate. More...

virtual bool	start ()
	Called to enable drivers, etc for i/o devices. More...

virtual bool	stop ()
	Called to disable drivers, etc for i/o devices. More...

void	set_output_multiple (int multiple)
	Constrain the noutput_items argument passed to forecast and general_work. More...

int	output_multiple () const

bool	output_multiple_set () const

void	set_alignment (int multiple)
	Constrains buffers to work on a set item alignment (for SIMD) More...

int	alignment () const

void	set_unaligned (int na)

int	unaligned () const

void	set_is_unaligned (bool u)

bool	is_unaligned () const

void	consume (int which_input, int how_many_items)
	Tell the scheduler `how_many_items` of input stream `which_input` were consumed. More...

void	consume_each (int how_many_items)
	Tell the scheduler `how_many_items` were consumed on each input stream. More...

void	produce (int which_output, int how_many_items)
	Tell the scheduler `how_many_items` were produced on output stream `which_output`. More...

void	set_relative_rate (double relative_rate)
	Set the approximate output rate / input rate. More...

double	relative_rate () const
	return the approximate output rate / input rate More...

uint64_t	nitems_read (unsigned int which_input)
	Return the number of items read on input stream which_input. More...

uint64_t	nitems_written (unsigned int which_output)
	Return the number of items written on output stream which_output. More...

tag_propagation_policy_t	tag_propagation_policy ()
	Asks for the policy used by the scheduler to moved tags downstream. More...

void	set_tag_propagation_policy (tag_propagation_policy_t p)
	Set the policy by the scheduler to determine how tags are moved downstream. More...

int	min_noutput_items () const
	Return the minimum number of output items this block can produce during a call to work. More...

void	set_min_noutput_items (int m)
	Set the minimum number of output items this block can produce during a call to work. More...

int	max_noutput_items ()
	Return the maximum number of output items this block will handle during a call to work. More...

void	set_max_noutput_items (int m)
	Set the maximum number of output items this block will handle during a call to work. More...

void	unset_max_noutput_items ()
	Clear the switch for using the max_noutput_items value of this block. More...

bool	is_set_max_noutput_items ()
	Ask the block if the flag is or is not set to use the internal value of max_noutput_items during a call to work. More...

void	expand_minmax_buffer (int port)

long	max_output_buffer (size_t i)
	Returns max buffer size on output port `i`. More...

void	set_max_output_buffer (long max_output_buffer)
	Sets max buffer size on all output ports. More...

void	set_max_output_buffer (int port, long max_output_buffer)
	Sets max buffer size on output port `port`. More...

long	min_output_buffer (size_t i)
	Returns min buffer size on output port `i`. More...

void	set_min_output_buffer (long min_output_buffer)
	Sets min buffer size on all output ports. More...

void	set_min_output_buffer (int port, long min_output_buffer)
	Sets min buffer size on output port `port`. More...

float	pc_noutput_items ()
	Gets instantaneous noutput_items performance counter. More...

float	pc_noutput_items_avg ()
	Gets average noutput_items performance counter. More...

float	pc_noutput_items_var ()
	Gets variance of noutput_items performance counter. More...

float	pc_nproduced ()
	Gets instantaneous num items produced performance counter. More...

float	pc_nproduced_avg ()
	Gets average num items produced performance counter. More...

float	pc_nproduced_var ()
	Gets variance of num items produced performance counter. More...

float	pc_input_buffers_full (int which)
	Gets instantaneous fullness of `which` input buffer. More...

float	pc_input_buffers_full_avg (int which)
	Gets average fullness of `which` input buffer. More...

float	pc_input_buffers_full_var (int which)
	Gets variance of fullness of `which` input buffer. More...

std::vector< float >	pc_input_buffers_full ()
	Gets instantaneous fullness of all input buffers. More...

std::vector< float >	pc_input_buffers_full_avg ()
	Gets average fullness of all input buffers. More...

std::vector< float >	pc_input_buffers_full_var ()
	Gets variance of fullness of all input buffers. More...

float	pc_output_buffers_full (int which)
	Gets instantaneous fullness of `which` input buffer. More...

float	pc_output_buffers_full_avg (int which)
	Gets average fullness of `which` input buffer. More...

float	pc_output_buffers_full_var (int which)
	Gets variance of fullness of `which` input buffer. More...

std::vector< float >	pc_output_buffers_full ()
	Gets instantaneous fullness of all output buffers. More...

std::vector< float >	pc_output_buffers_full_avg ()
	Gets average fullness of all output buffers. More...

std::vector< float >	pc_output_buffers_full_var ()
	Gets variance of fullness of all output buffers. More...

float	pc_work_time ()
	Gets instantaneous clock cycles spent in work. More...

float	pc_work_time_avg ()
	Gets average clock cycles spent in work. More...

float	pc_work_time_var ()
	Gets average clock cycles spent in work. More...

float	pc_work_time_total ()
	Gets total clock cycles spent in work. More...

void	reset_perf_counters ()
	Resets the performance counters. More...

void	setup_pc_rpc ()
	Sets up export of perf. counters to ControlPort. Only called by the scheduler. More...

bool	is_pc_rpc_set ()
	Checks if this block is already exporting perf. counters to ControlPort. More...

void	no_pc_rpc ()
	If the block calls this in its constructor, it's perf. counters will not be exported. More...

void	set_processor_affinity (const std::vector< int > &mask)
	Set the thread's affinity to processor core `n`. More...

void	unset_processor_affinity ()
	Remove processor affinity to a specific core. More...

std::vector< int >	processor_affinity ()
	Get the current processor affinity. More...

int	active_thread_priority ()
	Get the current thread priority in use. More...

int	thread_priority ()
	Get the current thread priority stored. More...

int	set_thread_priority (int priority)
	Set the current thread priority. More...

bool	update_rate () const

block_detail_sptr	detail () const

void	set_detail (block_detail_sptr detail)

Public Member Functions inherited from gr::basic_block
pmt::pmt_t	message_subscribers (pmt::pmt_t port)

virtual	~basic_block ()

long	unique_id () const

long	symbolic_id () const

std::string	name () const

std::string	symbol_name () const

gr::io_signature::sptr	input_signature () const

gr::io_signature::sptr	output_signature () const

basic_block_sptr	to_basic_block ()

bool	alias_set ()

std::string	alias ()

pmt::pmt_t	alias_pmt ()

void	set_block_alias (std::string name)

void	message_port_register_in (pmt::pmt_t port_id)

void	message_port_register_out (pmt::pmt_t port_id)

void	message_port_pub (pmt::pmt_t port_id, pmt::pmt_t msg)

void	message_port_sub (pmt::pmt_t port_id, pmt::pmt_t target)

void	message_port_unsub (pmt::pmt_t port_id, pmt::pmt_t target)

virtual bool	message_port_is_hier (pmt::pmt_t port_id)

virtual bool	message_port_is_hier_in (pmt::pmt_t port_id)

virtual bool	message_port_is_hier_out (pmt::pmt_t port_id)

pmt::pmt_t	message_ports_in ()
	Get input message port names. More...

pmt::pmt_t	message_ports_out ()
	Get output message port names. More...

void	_post (pmt::pmt_t which_port, pmt::pmt_t msg)

bool	empty_p (pmt::pmt_t which_port)
	is the queue empty? More...

bool	empty_p ()

bool	empty_handled_p (pmt::pmt_t which_port)
	are all msg ports with handlers empty? More...

bool	empty_handled_p ()

size_t	nmsgs (pmt::pmt_t which_port)
	How many messages in the queue? More...

void	insert_tail (pmt::pmt_t which_port, pmt::pmt_t msg)

pmt::pmt_t	delete_head_nowait (pmt::pmt_t which_port)

pmt::pmt_t	delete_head_blocking (pmt::pmt_t which_port)

msg_queue_t::iterator	get_iterator (pmt::pmt_t which_port)

void	erase_msg (pmt::pmt_t which_port, msg_queue_t::iterator it)

virtual bool	has_msg_port (pmt::pmt_t which_port)

virtual void	setup_rpc ()
	Set up the RPC registered variables. More...

bool	is_rpc_set ()
	Ask if this block has been registered to the RPC. More...

void	rpc_set ()
	When the block is registered with the RPC, set this. More...

virtual bool	check_topology (int ninputs, int noutputs)
	Confirm that ninputs and noutputs is an acceptable combination. More...

template<typename T >
void	set_msg_handler (pmt::pmt_t which_port, T msg_handler)
	Set the callback that is fired when messages are available. More...

Public Member Functions inherited from gr::msg_accepter
	msg_accepter ()

	~msg_accepter ()

void	post (pmt::pmt_t which_port, pmt::pmt_t msg)
	send `msg` to `msg_accepter` on port `which_port` More...

Public Member Functions inherited from gr::messages::msg_accepter
	msg_accepter ()

Static Public Member Functions
static sptr	make (int fftsize, int wintype, double fc, double bw, const std::string &name, int nconnections=1, QWidget *parent=NULL)
	Build a complex PSD sink. More...

Public Attributes
QApplication *	d_qApplication

Additional Inherited Members
Protected Types inherited from gr::basic_block
enum	vcolor { WHITE, GREY, BLACK }

Protected Member Functions inherited from gr::sync_block
	sync_block (void)

	sync_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)

Protected Member Functions inherited from gr::block
	block (void)

	block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)

void	set_fixed_rate (bool fixed_rate)

void	add_item_tag (unsigned int which_output, uint64_t abs_offset, const pmt::pmt_t &key, const pmt::pmt_t &value, const pmt::pmt_t &srcid=pmt::PMT_F)
	Adds a new tag onto the given output buffer. More...

void	add_item_tag (unsigned int which_output, const tag_t &tag)
	Adds a new tag onto the given output buffer. More...

void	remove_item_tag (unsigned int which_input, uint64_t abs_offset, const pmt::pmt_t &key, const pmt::pmt_t &value, const pmt::pmt_t &srcid=pmt::PMT_F)
	Removes a tag from the given input buffer. More...

void	remove_item_tag (unsigned int which_input, const tag_t &tag)
	Removes a tag from the given input buffer. More...

void	get_tags_in_range (std::vector< tag_t > &v, unsigned int which_input, uint64_t abs_start, uint64_t abs_end)
	Given a [start,end), returns a vector of all tags in the range. More...

void	get_tags_in_range (std::vector< tag_t > &v, unsigned int which_input, uint64_t abs_start, uint64_t abs_end, const pmt::pmt_t &key)
	Given a [start,end), returns a vector of all tags in the range with a given key. More...

void	get_tags_in_window (std::vector< tag_t > &v, unsigned int which_input, uint64_t rel_start, uint64_t rel_end)
	Gets all tags within the relative window of the current call to work. More...

void	get_tags_in_window (std::vector< tag_t > &v, unsigned int which_input, uint64_t rel_start, uint64_t rel_end, const pmt::pmt_t &key)
	Operates like gr::block::get_tags_in_window with the ability to only return tags with the specified `key`. More...

void	enable_update_rate (bool en)

Protected Member Functions inherited from gr::basic_block
	basic_block (void)

	basic_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)
	Protected constructor prevents instantiation by non-derived classes. More...

void	set_input_signature (gr::io_signature::sptr iosig)
	may only be called during constructor More...

void	set_output_signature (gr::io_signature::sptr iosig)
	may only be called during constructor More...

void	set_color (vcolor color)
	Allow the flowgraph to set for sorting and partitioning. More...

vcolor	color () const

virtual bool	has_msg_handler (pmt::pmt_t which_port)
	Tests if there is a handler attached to port `which_port`. More...

virtual void	dispatch_msg (pmt::pmt_t which_port, pmt::pmt_t msg)

Protected Attributes inherited from gr::block
std::vector< long >	d_max_output_buffer

std::vector< long >	d_min_output_buffer

gr::thread::mutex	d_setlock

gr::logger_ptr	d_logger

gr::logger_ptr	d_debug_logger

Protected Attributes inherited from gr::basic_block
std::string	d_name

gr::io_signature::sptr	d_input_signature

gr::io_signature::sptr	d_output_signature

long	d_unique_id

long	d_symbolic_id

std::string	d_symbol_name

std::string	d_symbol_alias

vcolor	d_color

bool	d_rpc_set

msg_queue_map_t	msg_queue

std::vector< boost::any >	d_rpc_vars

pmt::pmt_t	d_message_subscribers

Detailed Description

A graphical sink to display multiple signals in frequency.

This is a QT-based graphical sink the takes set of a complex streams and plots the PSD. Each signal is plotted with a different color, and the set_title and set_color functions can be used to change the lable and color for a given input number.

Member Typedef Documentation

typedef boost::shared_ptr<freq_sink_c> gr::qtgui::freq_sink_c::sptr

Member Function Documentation

virtual void gr::qtgui::freq_sink_c::enable_autoscale ( bool en = true )

pure virtual

virtual void gr::qtgui::freq_sink_c::enable_grid ( bool en = true )

pure virtual

virtual void gr::qtgui::freq_sink_c::enable_menu ( bool en = true )

pure virtual

virtual void gr::qtgui::freq_sink_c::exec_ ( )

pure virtual

virtual float gr::qtgui::freq_sink_c::fft_average ( ) const

pure virtual

virtual int gr::qtgui::freq_sink_c::fft_size ( ) const

pure virtual

virtual gr::filter::firdes::win_type gr::qtgui::freq_sink_c::fft_window ( )

pure virtual

virtual double gr::qtgui::freq_sink_c::line_alpha ( int which )

pure virtual

virtual std::string gr::qtgui::freq_sink_c::line_color ( int which )

pure virtual

virtual std::string gr::qtgui::freq_sink_c::line_label ( int which )

pure virtual

virtual int gr::qtgui::freq_sink_c::line_marker ( int which )

pure virtual

virtual int gr::qtgui::freq_sink_c::line_style ( int which )

pure virtual

virtual int gr::qtgui::freq_sink_c::line_width ( int which )

pure virtual

static sptr gr::qtgui::freq_sink_c::make	(	int	fftsize,
		int	wintype,
		double	fc,
		double	bw,
		const std::string &	name,
		int	nconnections = `1`,
		QWidget *	parent = `NULL`
	)

static

Build a complex PSD sink.

Parameters

fftsize	size of the FFT to compute and display
wintype	type of window to apply (see gnuradio/filter/firdes.h)
fc	center frequency of signal (use for x-axis labels)
bw	bandwidth of signal (used to set x-axis labels)
name	title for the plot
nconnections	number of signals connected to sink
parent	a QWidget parent object, if any

virtual void gr::qtgui::freq_sink_c::reset ( )

pure virtual

virtual void gr::qtgui::freq_sink_c::set_fft_average ( const float fftavg )

pure virtual

virtual void gr::qtgui::freq_sink_c::set_fft_size ( const int fftsize )

pure virtual

virtual void gr::qtgui::freq_sink_c::set_fft_window ( const gr::filter::firdes::win_type win )

pure virtual

virtual void gr::qtgui::freq_sink_c::set_frequency_range	(	const double	centerfreq,
		const double	bandwidth
	)

pure virtual

virtual void gr::qtgui::freq_sink_c::set_line_alpha	(	int	which,
		double	alpha
	)

pure virtual

virtual void gr::qtgui::freq_sink_c::set_line_color	(	int	which,
		const std::string &	color
	)

pure virtual

virtual void gr::qtgui::freq_sink_c::set_line_label	(	int	which,
		const std::string &	label
	)

pure virtual

virtual void gr::qtgui::freq_sink_c::set_line_marker	(	int	which,
		int	marker
	)

pure virtual

virtual void gr::qtgui::freq_sink_c::set_line_style	(	int	which,
		int	style
	)

pure virtual

virtual void gr::qtgui::freq_sink_c::set_line_width	(	int	which,
		int	width
	)

pure virtual

virtual void gr::qtgui::freq_sink_c::set_size	(	int	width,
		int	height
	)

pure virtual

virtual void gr::qtgui::freq_sink_c::set_title ( const std::string & title )

pure virtual

virtual void gr::qtgui::freq_sink_c::set_update_time ( double t )

pure virtual

virtual void gr::qtgui::freq_sink_c::set_y_axis	(	double	min,
		double	max
	)

pure virtual

virtual std::string gr::qtgui::freq_sink_c::title ( )

pure virtual

Member Data Documentation

QApplication* gr::qtgui::freq_sink_c::d_qApplication

The documentation for this class was generated from the following file:

freq_sink_c.h

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Function Documentation

Member Data Documentation
