Hierarchical container class for gr::block's and gr::hier_block2's. More...

#include <gnuradio/hier_block2.h>

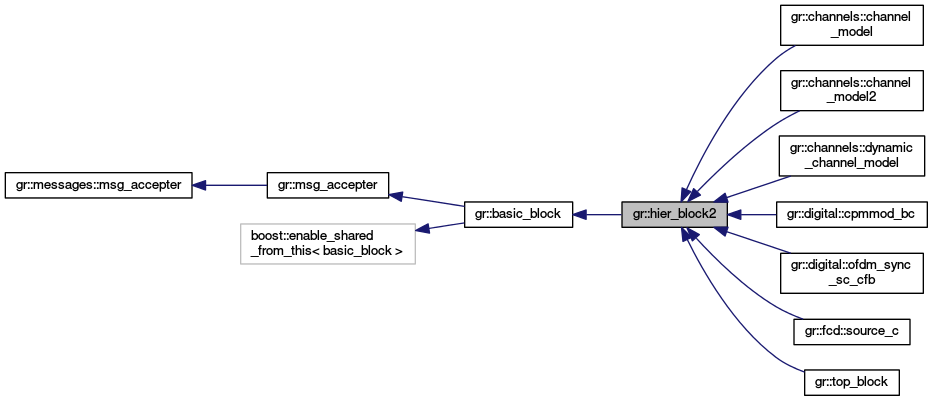

Inheritance diagram for gr::hier_block2:

Public Types
typedef basic_block_sptr	opaque_self
	typedef for object returned from self(). More...

Public Member Functions
virtual	~hier_block2 ()

opaque_self	self ()
	Return an object, representing the current block, which can be passed to connect. More...

void	connect (basic_block_sptr block)
	Add a stand-alone (possibly hierarchical) block to internal graph. More...

void	connect (basic_block_sptr src, int src_port, basic_block_sptr dst, int dst_port)
	Add gr-blocks or hierarchical blocks to internal graph and wire together. More...

void	msg_connect (basic_block_sptr src, pmt::pmt_t srcport, basic_block_sptr dst, pmt::pmt_t dstport)
	Add gr-blocks or hierarchical blocks to internal graph and wire together. More...

void	msg_connect (basic_block_sptr src, std::string srcport, basic_block_sptr dst, std::string dstport)

void	msg_disconnect (basic_block_sptr src, pmt::pmt_t srcport, basic_block_sptr dst, pmt::pmt_t dstport)

void	msg_disconnect (basic_block_sptr src, std::string srcport, basic_block_sptr dst, std::string dstport)

void	disconnect (basic_block_sptr block)
	Remove a gr-block or hierarchical block from the internal flowgraph. More...

void	disconnect (basic_block_sptr src, int src_port, basic_block_sptr dst, int dst_port)
	Disconnect a pair of gr-blocks or hierarchical blocks in internal flowgraph. More...

void	disconnect_all ()
	Disconnect all connections in the internal flowgraph. More...

virtual void	lock ()

virtual void	unlock ()

flat_flowgraph_sptr	flatten () const

hier_block2_sptr	to_hier_block2 ()

bool	has_msg_port (pmt::pmt_t which_port)

bool	message_port_is_hier (pmt::pmt_t port_id)

bool	message_port_is_hier_in (pmt::pmt_t port_id)

bool	message_port_is_hier_out (pmt::pmt_t port_id)

void	message_port_register_hier_in (pmt::pmt_t port_id)

void	message_port_register_hier_out (pmt::pmt_t port_id)

void	set_processor_affinity (const std::vector< int > &mask)
	Set the affinity of all blocks in hier_block2 to processor core `n`. More...

void	unset_processor_affinity ()
	Remove processor affinity for all blocks in hier_block2. More...

std::vector< int >	processor_affinity ()
	Get the current processor affinity. More...

Public Member Functions inherited from gr::basic_block
pmt::pmt_t	message_subscribers (pmt::pmt_t port)

virtual	~basic_block ()

long	unique_id () const

long	symbolic_id () const

std::string	name () const

std::string	symbol_name () const

gr::io_signature::sptr	input_signature () const

gr::io_signature::sptr	output_signature () const

basic_block_sptr	to_basic_block ()

bool	alias_set ()

std::string	alias ()

pmt::pmt_t	alias_pmt ()

void	set_block_alias (std::string name)

void	message_port_register_in (pmt::pmt_t port_id)

void	message_port_register_out (pmt::pmt_t port_id)

void	message_port_pub (pmt::pmt_t port_id, pmt::pmt_t msg)

void	message_port_sub (pmt::pmt_t port_id, pmt::pmt_t target)

void	message_port_unsub (pmt::pmt_t port_id, pmt::pmt_t target)

pmt::pmt_t	message_ports_in ()
	Get input message port names. More...

pmt::pmt_t	message_ports_out ()
	Get output message port names. More...

void	_post (pmt::pmt_t which_port, pmt::pmt_t msg)

bool	empty_p (pmt::pmt_t which_port)
	is the queue empty? More...

bool	empty_p ()

bool	empty_handled_p (pmt::pmt_t which_port)
	are all msg ports with handlers empty? More...

bool	empty_handled_p ()

size_t	nmsgs (pmt::pmt_t which_port)
	How many messages in the queue? More...

void	insert_tail (pmt::pmt_t which_port, pmt::pmt_t msg)

pmt::pmt_t	delete_head_nowait (pmt::pmt_t which_port)

pmt::pmt_t	delete_head_blocking (pmt::pmt_t which_port)

msg_queue_t::iterator	get_iterator (pmt::pmt_t which_port)

void	erase_msg (pmt::pmt_t which_port, msg_queue_t::iterator it)

virtual void	setup_rpc ()
	Set up the RPC registered variables. More...

bool	is_rpc_set ()
	Ask if this block has been registered to the RPC. More...

void	rpc_set ()
	When the block is registered with the RPC, set this. More...

virtual bool	check_topology (int ninputs, int noutputs)
	Confirm that ninputs and noutputs is an acceptable combination. More...

template<typename T >
void	set_msg_handler (pmt::pmt_t which_port, T msg_handler)
	Set the callback that is fired when messages are available. More...

Public Member Functions inherited from gr::msg_accepter
	msg_accepter ()

	~msg_accepter ()

void	post (pmt::pmt_t which_port, pmt::pmt_t msg)
	send `msg` to `msg_accepter` on port `which_port` More...

Public Member Functions inherited from gr::messages::msg_accepter
	msg_accepter ()

Public Attributes
pmt::pmt_t	hier_message_ports_in

pmt::pmt_t	hier_message_ports_out

Protected Member Functions
	hier_block2 (void)

	hier_block2 (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)

Protected Member Functions inherited from gr::basic_block
	basic_block (void)

	basic_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)
	Protected constructor prevents instantiation by non-derived classes. More...

void	set_input_signature (gr::io_signature::sptr iosig)
	may only be called during constructor More...

void	set_output_signature (gr::io_signature::sptr iosig)
	may only be called during constructor More...

void	set_color (vcolor color)
	Allow the flowgraph to set for sorting and partitioning. More...

vcolor	color () const

virtual bool	has_msg_handler (pmt::pmt_t which_port)
	Tests if there is a handler attached to port `which_port`. More...

virtual void	dispatch_msg (pmt::pmt_t which_port, pmt::pmt_t msg)

Friends
class	hier_block2_detail

GR_RUNTIME_API hier_block2_sptr	make_hier_block2 (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)
	public constructor for hier_block2 More...

Additional Inherited Members
Protected Types inherited from gr::basic_block
enum	vcolor { WHITE, GREY, BLACK }

Protected Attributes inherited from gr::basic_block
std::string	d_name

gr::io_signature::sptr	d_input_signature

gr::io_signature::sptr	d_output_signature

long	d_unique_id

long	d_symbolic_id

std::string	d_symbol_name

std::string	d_symbol_alias

vcolor	d_color

bool	d_rpc_set

msg_queue_map_t	msg_queue

std::vector< boost::any >	d_rpc_vars

pmt::pmt_t	d_message_subscribers

Detailed Description

Hierarchical container class for gr::block's and gr::hier_block2's.

Member Typedef Documentation

typedef basic_block_sptr gr::hier_block2::opaque_self

typedef for object returned from self().

This type is only guaranteed to be passable to connect and disconnect. No other assumptions should be made about it.

Constructor & Destructor Documentation

gr::hier_block2::hier_block2 ( void )

inlineprotected

gr::hier_block2::hier_block2	(	const std::string &	name,
		gr::io_signature::sptr	input_signature,
		gr::io_signature::sptr	output_signature
	)

protected

virtual gr::hier_block2::~hier_block2 ( )

virtual

Member Function Documentation

void gr::hier_block2::connect ( basic_block_sptr block )

Add a stand-alone (possibly hierarchical) block to internal graph.

This adds a gr-block or hierarchical block to the internal graph without wiring it to anything else.

void gr::hier_block2::connect	(	basic_block_sptr	src,
		int	src_port,
		basic_block_sptr	dst,
		int	dst_port
	)

Add gr-blocks or hierarchical blocks to internal graph and wire together.

This adds (if not done earlier by another connect) a pair of gr-blocks or hierarchical blocks to the internal flowgraph, and wires the specified output port to the specified input port.

void gr::hier_block2::disconnect ( basic_block_sptr block )

Remove a gr-block or hierarchical block from the internal flowgraph.

This removes a gr-block or hierarchical block from the internal flowgraph, disconnecting it from other blocks as needed.

void gr::hier_block2::disconnect	(	basic_block_sptr	src,
		int	src_port,
		basic_block_sptr	dst,
		int	dst_port
	)

Disconnect a pair of gr-blocks or hierarchical blocks in internal flowgraph.

This disconnects the specified input port from the specified output port of a pair of gr-blocks or hierarchical blocks.

void gr::hier_block2::disconnect_all ( )

Disconnect all connections in the internal flowgraph.

This call removes all output port to input port connections in the internal flowgraph.

flat_flowgraph_sptr gr::hier_block2::flatten ( ) const

bool gr::hier_block2::has_msg_port ( pmt::pmt_t which_port )

inlinevirtual

Reimplemented from gr::basic_block.

References gr::basic_block::has_msg_port().

virtual void gr::hier_block2::lock ( )

virtual

Lock a flowgraph in preparation for reconfiguration. When an equal number of calls to lock() and unlock() have occurred, the flowgraph will be reconfigured.

N.B. lock() and unlock() may not be called from a flowgraph thread (E.g., gr::block::work method) or deadlock will occur when reconfiguration happens.

Reimplemented in gr::top_block.

bool gr::hier_block2::message_port_is_hier ( pmt::pmt_t port_id )

inlinevirtual

Reimplemented from gr::basic_block.

bool gr::hier_block2::message_port_is_hier_in ( pmt::pmt_t port_id )

inlinevirtual

Reimplemented from gr::basic_block.

References pmt::list_has().

bool gr::hier_block2::message_port_is_hier_out ( pmt::pmt_t port_id )

inlinevirtual

Reimplemented from gr::basic_block.

References pmt::list_has().

void gr::hier_block2::message_port_register_hier_in ( pmt::pmt_t port_id )

inline

References pmt::list_add(), and pmt::list_has().

void gr::hier_block2::message_port_register_hier_out ( pmt::pmt_t port_id )

inline

References pmt::dict_has_key(), pmt::list_add(), and pmt::list_has().

void gr::hier_block2::msg_connect	(	basic_block_sptr	src,
		pmt::pmt_t	srcport,
		basic_block_sptr	dst,
		pmt::pmt_t	dstport
	)

Add gr-blocks or hierarchical blocks to internal graph and wire together.

This adds (if not done earlier by another connect) a pair of gr-blocks or hierarchical blocks to the internal message port subscription

void gr::hier_block2::msg_connect	(	basic_block_sptr	src,
		std::string	srcport,
		basic_block_sptr	dst,
		std::string	dstport
	)

void gr::hier_block2::msg_disconnect	(	basic_block_sptr	src,
		pmt::pmt_t	srcport,
		basic_block_sptr	dst,
		pmt::pmt_t	dstport
	)

void gr::hier_block2::msg_disconnect	(	basic_block_sptr	src,
		std::string	srcport,
		basic_block_sptr	dst,
		std::string	dstport
	)

std::vector<int> gr::hier_block2::processor_affinity ( )

virtual

Get the current processor affinity.

This returns the processor affinity value for the first block in the hier_block2's list of blocks with the assumption that they have always only been set through the hier_block2's interface. If any block has been individually set, then this call could be misleading.

Reimplemented from gr::basic_block.

opaque_self gr::hier_block2::self ( )

Return an object, representing the current block, which can be passed to connect.

The returned object may only be used as an argument to connect or disconnect. Any other use of self() results in unspecified (erroneous) behavior.

void gr::hier_block2::set_processor_affinity ( const std::vector< int > & mask )

virtual

Set the affinity of all blocks in hier_block2 to processor core n.

Parameters

mask	a vector of ints of the core numbers available to this block.

Reimplemented from gr::basic_block.

hier_block2_sptr gr::hier_block2::to_hier_block2 ( )

virtual void gr::hier_block2::unlock ( )

virtual

Unlock a flowgraph in preparation for reconfiguration. When an equal number of calls to lock() and unlock() have occurred, the flowgraph will be reconfigured.

N.B. lock() and unlock() may not be called from a flowgraph thread (E.g., gr::block::work method) or deadlock will occur when reconfiguration happens.

Reimplemented in gr::top_block.

void gr::hier_block2::unset_processor_affinity ( )

virtual

Remove processor affinity for all blocks in hier_block2.

Reimplemented from gr::basic_block.

Friends And Related Function Documentation

friend class hier_block2_detail

friend

GR_RUNTIME_API hier_block2_sptr make_hier_block2	(	const std::string &	name,
		gr::io_signature::sptr	input_signature,
		gr::io_signature::sptr	output_signature
	)

friend

public constructor for hier_block2

Member Data Documentation

pmt::pmt_t gr::hier_block2::hier_message_ports_in

pmt::pmt_t gr::hier_block2::hier_message_ports_out

The documentation for this class was generated from the following file:

hier_block2.h

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
