gr::digital::ofdm_equalizer_base Class Reference

#include <gnuradio/digital/ofdm_equalizer_base.h>

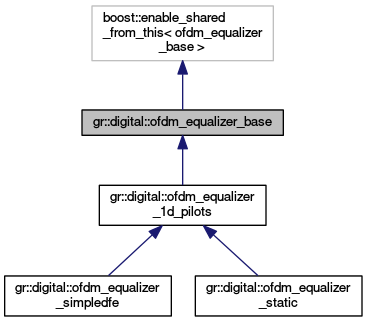

Inheritance diagram for gr::digital::ofdm_equalizer_base:

Public Types
typedef boost::shared_ptr < ofdm_equalizer_base >	sptr

Public Member Functions
	ofdm_equalizer_base (int fft_len)
virtual	~ofdm_equalizer_base ()
virtual void	reset ()=0
	Reset the channel information state knowledge. More...
virtual void	equalize (gr_complex *frame, int n_sym, const std::vector< gr_complex > &initial_taps=std::vector< gr_complex >(), const std::vector< tag_t > &tags=std::vector< tag_t >())=0
	Run the actual equalization. More...
virtual void	get_channel_state (std::vector< gr_complex > &taps)=0
	Return the current channel state. More...
int	fft_len ()
sptr	base ()

Protected Attributes
int	d_fft_len

Member Typedef Documentation

typedef boost::shared_ptr<ofdm_equalizer_base> gr::digital::ofdm_equalizer_base::sptr

Constructor & Destructor Documentation

gr::digital::ofdm_equalizer_base::ofdm_equalizer_base

(

int

fft_len

)

virtual gr::digital::ofdm_equalizer_base::~ofdm_equalizer_base ( )

virtual

Member Function Documentation

sptr gr::digital::ofdm_equalizer_base::base ( )

inline

virtual void gr::digital::ofdm_equalizer_base::equalize ( gr_complex *  frame, int  n_sym, const std::vector< gr_complex > &  initial_taps = std::vector< gr_complex >(), const std::vector< tag_t > &  tags = std::vector< tag_t >()  )

pure virtual

Run the actual equalization.

Implemented in gr::digital::ofdm_equalizer_simpledfe, and gr::digital::ofdm_equalizer_static.

int gr::digital::ofdm_equalizer_base::fft_len ( )

inline

virtual void gr::digital::ofdm_equalizer_base::get_channel_state ( std::vector< gr_complex > &  taps )

pure virtual

Return the current channel state.

Implemented in gr::digital::ofdm_equalizer_1d_pilots.

virtual void gr::digital::ofdm_equalizer_base::reset ( )

pure virtual

Reset the channel information state knowledge.

Implemented in gr::digital::ofdm_equalizer_1d_pilots.

Member Data Documentation

int gr::digital::ofdm_equalizer_base::d_fft_len

protected

---

The documentation for this class was generated from the following file:

• ofdm_equalizer_base.h
