gr::blocks::transcendental Class Reference
A block that performs various transcendental math operations. More...
#include <gnuradio/blocks/transcendental.h>

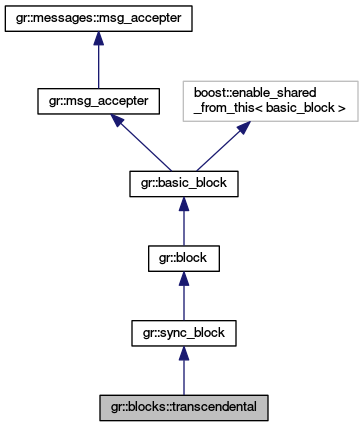

Inheritance diagram for gr::blocks::transcendental:
Public Types | |
| typedef boost::shared_ptr < transcendental > | sptr |
 Public Types inherited from gr::block | |
| enum | { WORK_CALLED_PRODUCE = -2, WORK_DONE = -1 } |
| Magic return values from general_work. More... | |
| enum | tag_propagation_policy_t { TPP_DONT = 0, TPP_ALL_TO_ALL = 1, TPP_ONE_TO_ONE = 2 } |
Static Public Member Functions | |
| static sptr | make (const std::string &name, const std::string &type="float") |
Additional Inherited Members | |
| Public Member Functions inherited from gr::sync_block | |
| virtual int | work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)=0 |
| just like gr::block::general_work, only this arranges to call consume_each for you More... | |
| void | forecast (int noutput_items, gr_vector_int &ninput_items_required) |
| Estimate input requirements given output request. More... | |
| int | general_work (int noutput_items, gr_vector_int &ninput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items) |
| compute output items from input items More... | |
| int | fixed_rate_ninput_to_noutput (int ninput) |
| Given ninput samples, return number of output samples that will be produced. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this. More... | |
| int | fixed_rate_noutput_to_ninput (int noutput) |
| Given noutput samples, return number of input samples required to produce noutput. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this. More... | |
| Public Member Functions inherited from gr::block | |
| virtual | ~block () |
| unsigned | history () const |
| void | set_history (unsigned history) |
| void | declare_sample_delay (int which, unsigned delay) |
| void | declare_sample_delay (unsigned delay) |
| unsigned | sample_delay (int which) const |
| bool | fixed_rate () const |
| Return true if this block has a fixed input to output rate. More... | |
| virtual bool | start () |
| Called to enable drivers, etc for i/o devices. More... | |
| virtual bool | stop () |
| Called to disable drivers, etc for i/o devices. More... | |
| void | set_output_multiple (int multiple) |
| Constrain the noutput_items argument passed to forecast and general_work. More... | |
| int | output_multiple () const |
| bool | output_multiple_set () const |
| void | set_alignment (int multiple) |
| Constrains buffers to work on a set item alignment (for SIMD) More... | |
| int | alignment () const |
| void | set_unaligned (int na) |
| int | unaligned () const |
| void | set_is_unaligned (bool u) |
| bool | is_unaligned () const |
| void | consume (int which_input, int how_many_items) |
Tell the scheduler how_many_items of input stream which_input were consumed. More... | |
| void | consume_each (int how_many_items) |
Tell the scheduler how_many_items were consumed on each input stream. More... | |
| void | produce (int which_output, int how_many_items) |
Tell the scheduler how_many_items were produced on output stream which_output. More... | |
| void | set_relative_rate (double relative_rate) |
| Set the approximate output rate / input rate. More... | |
| double | relative_rate () const |
| return the approximate output rate / input rate More... | |
| uint64_t | nitems_read (unsigned int which_input) |
| Return the number of items read on input stream which_input. More... | |
| uint64_t | nitems_written (unsigned int which_output) |
| Return the number of items written on output stream which_output. More... | |
| tag_propagation_policy_t | tag_propagation_policy () |
| Asks for the policy used by the scheduler to moved tags downstream. More... | |
| void | set_tag_propagation_policy (tag_propagation_policy_t p) |
| Set the policy by the scheduler to determine how tags are moved downstream. More... | |
| int | min_noutput_items () const |
| Return the minimum number of output items this block can produce during a call to work. More... | |
| void | set_min_noutput_items (int m) |
| Set the minimum number of output items this block can produce during a call to work. More... | |
| int | max_noutput_items () |
| Return the maximum number of output items this block will handle during a call to work. More... | |
| void | set_max_noutput_items (int m) |
| Set the maximum number of output items this block will handle during a call to work. More... | |
| void | unset_max_noutput_items () |
| Clear the switch for using the max_noutput_items value of this block. More... | |
| bool | is_set_max_noutput_items () |
| Ask the block if the flag is or is not set to use the internal value of max_noutput_items during a call to work. More... | |
| void | expand_minmax_buffer (int port) |
| long | max_output_buffer (size_t i) |
Returns max buffer size on output port i. More... | |
| void | set_max_output_buffer (long max_output_buffer) |
| Sets max buffer size on all output ports. More... | |
| void | set_max_output_buffer (int port, long max_output_buffer) |
Sets max buffer size on output port port. More... | |
| long | min_output_buffer (size_t i) |
Returns min buffer size on output port i. More... | |
| void | set_min_output_buffer (long min_output_buffer) |
| Sets min buffer size on all output ports. More... | |
| void | set_min_output_buffer (int port, long min_output_buffer) |
Sets min buffer size on output port port. More... | |
| float | pc_noutput_items () |
| Gets instantaneous noutput_items performance counter. More... | |
| float | pc_noutput_items_avg () |
| Gets average noutput_items performance counter. More... | |
| float | pc_noutput_items_var () |
| Gets variance of noutput_items performance counter. More... | |
| float | pc_nproduced () |
| Gets instantaneous num items produced performance counter. More... | |
| float | pc_nproduced_avg () |
| Gets average num items produced performance counter. More... | |
| float | pc_nproduced_var () |
| Gets variance of num items produced performance counter. More... | |
| float | pc_input_buffers_full (int which) |
Gets instantaneous fullness of which input buffer. More... | |
| float | pc_input_buffers_full_avg (int which) |
Gets average fullness of which input buffer. More... | |
| float | pc_input_buffers_full_var (int which) |
Gets variance of fullness of which input buffer. More... | |
| std::vector< float > | pc_input_buffers_full () |
| Gets instantaneous fullness of all input buffers. More... | |
| std::vector< float > | pc_input_buffers_full_avg () |
| Gets average fullness of all input buffers. More... | |
| std::vector< float > | pc_input_buffers_full_var () |
| Gets variance of fullness of all input buffers. More... | |
| float | pc_output_buffers_full (int which) |
Gets instantaneous fullness of which input buffer. More... | |
| float | pc_output_buffers_full_avg (int which) |
Gets average fullness of which input buffer. More... | |
| float | pc_output_buffers_full_var (int which) |
Gets variance of fullness of which input buffer. More... | |
| std::vector< float > | pc_output_buffers_full () |
| Gets instantaneous fullness of all output buffers. More... | |
| std::vector< float > | pc_output_buffers_full_avg () |
| Gets average fullness of all output buffers. More... | |
| std::vector< float > | pc_output_buffers_full_var () |
| Gets variance of fullness of all output buffers. More... | |
| float | pc_work_time () |
| Gets instantaneous clock cycles spent in work. More... | |
| float | pc_work_time_avg () |
| Gets average clock cycles spent in work. More... | |
| float | pc_work_time_var () |
| Gets average clock cycles spent in work. More... | |
| float | pc_work_time_total () |
| Gets total clock cycles spent in work. More... | |
| void | reset_perf_counters () |
| Resets the performance counters. More... | |
| void | setup_pc_rpc () |
| Sets up export of perf. counters to ControlPort. Only called by the scheduler. More... | |
| bool | is_pc_rpc_set () |
| Checks if this block is already exporting perf. counters to ControlPort. More... | |
| void | no_pc_rpc () |
| If the block calls this in its constructor, it's perf. counters will not be exported. More... | |
| void | set_processor_affinity (const std::vector< int > &mask) |
Set the thread's affinity to processor core n. More... | |
| void | unset_processor_affinity () |
| Remove processor affinity to a specific core. More... | |
| std::vector< int > | processor_affinity () |
| Get the current processor affinity. More... | |
| int | active_thread_priority () |
| Get the current thread priority in use. More... | |
| int | thread_priority () |
| Get the current thread priority stored. More... | |
| int | set_thread_priority (int priority) |
| Set the current thread priority. More... | |
| bool | update_rate () const |
| block_detail_sptr | detail () const |
| void | set_detail (block_detail_sptr detail) |
| Public Member Functions inherited from gr::basic_block | |
| pmt::pmt_t | message_subscribers (pmt::pmt_t port) |
| virtual | ~basic_block () |
| long | unique_id () const |
| long | symbolic_id () const |
| std::string | name () const |
| std::string | symbol_name () const |
| gr::io_signature::sptr | input_signature () const |
| gr::io_signature::sptr | output_signature () const |
| basic_block_sptr | to_basic_block () |
| bool | alias_set () |
| std::string | alias () |
| pmt::pmt_t | alias_pmt () |
| void | set_block_alias (std::string name) |
| void | message_port_register_in (pmt::pmt_t port_id) |
| void | message_port_register_out (pmt::pmt_t port_id) |
| void | message_port_pub (pmt::pmt_t port_id, pmt::pmt_t msg) |
| void | message_port_sub (pmt::pmt_t port_id, pmt::pmt_t target) |
| void | message_port_unsub (pmt::pmt_t port_id, pmt::pmt_t target) |
| virtual bool | message_port_is_hier (pmt::pmt_t port_id) |
| virtual bool | message_port_is_hier_in (pmt::pmt_t port_id) |
| virtual bool | message_port_is_hier_out (pmt::pmt_t port_id) |
| pmt::pmt_t | message_ports_in () |
| Get input message port names. More... | |
| pmt::pmt_t | message_ports_out () |
| Get output message port names. More... | |
| void | _post (pmt::pmt_t which_port, pmt::pmt_t msg) |
| bool | empty_p (pmt::pmt_t which_port) |
| is the queue empty? More... | |
| bool | empty_p () |
| bool | empty_handled_p (pmt::pmt_t which_port) |
| are all msg ports with handlers empty? More... | |
| bool | empty_handled_p () |
| size_t | nmsgs (pmt::pmt_t which_port) |
| How many messages in the queue? More... | |
| void | insert_tail (pmt::pmt_t which_port, pmt::pmt_t msg) |
| pmt::pmt_t | delete_head_nowait (pmt::pmt_t which_port) |
| pmt::pmt_t | delete_head_blocking (pmt::pmt_t which_port) |
| msg_queue_t::iterator | get_iterator (pmt::pmt_t which_port) |
| void | erase_msg (pmt::pmt_t which_port, msg_queue_t::iterator it) |
| virtual bool | has_msg_port (pmt::pmt_t which_port) |
| virtual void | setup_rpc () |
| Set up the RPC registered variables. More... | |
| bool | is_rpc_set () |
| Ask if this block has been registered to the RPC. More... | |
| void | rpc_set () |
| When the block is registered with the RPC, set this. More... | |
| virtual bool | check_topology (int ninputs, int noutputs) |
| Confirm that ninputs and noutputs is an acceptable combination. More... | |
| template<typename T > | |
| void | set_msg_handler (pmt::pmt_t which_port, T msg_handler) |
| Set the callback that is fired when messages are available. More... | |
| Public Member Functions inherited from gr::msg_accepter | |
| msg_accepter () | |
| ~msg_accepter () | |
| void | post (pmt::pmt_t which_port, pmt::pmt_t msg) |
send msg to msg_accepter on port which_port More... | |
| Public Member Functions inherited from gr::messages::msg_accepter | |
| Protected Types inherited from gr::basic_block | |
| enum | vcolor { WHITE, GREY, BLACK } |
| Protected Member Functions inherited from gr::sync_block | |
| sync_block (void) | |
| sync_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature) | |
| Protected Member Functions inherited from gr::block | |
| block (void) | |
| block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature) | |
| void | set_fixed_rate (bool fixed_rate) |
| void | add_item_tag (unsigned int which_output, uint64_t abs_offset, const pmt::pmt_t &key, const pmt::pmt_t &value, const pmt::pmt_t &srcid=pmt::PMT_F) |
| Adds a new tag onto the given output buffer. More... | |
| void | add_item_tag (unsigned int which_output, const tag_t &tag) |
| Adds a new tag onto the given output buffer. More... | |
| void | remove_item_tag (unsigned int which_input, uint64_t abs_offset, const pmt::pmt_t &key, const pmt::pmt_t &value, const pmt::pmt_t &srcid=pmt::PMT_F) |
| Removes a tag from the given input buffer. More... | |
| void | remove_item_tag (unsigned int which_input, const tag_t &tag) |
| Removes a tag from the given input buffer. More... | |
| void | get_tags_in_range (std::vector< tag_t > &v, unsigned int which_input, uint64_t abs_start, uint64_t abs_end) |
| Given a [start,end), returns a vector of all tags in the range. More... | |
| void | get_tags_in_range (std::vector< tag_t > &v, unsigned int which_input, uint64_t abs_start, uint64_t abs_end, const pmt::pmt_t &key) |
| Given a [start,end), returns a vector of all tags in the range with a given key. More... | |
| void | get_tags_in_window (std::vector< tag_t > &v, unsigned int which_input, uint64_t rel_start, uint64_t rel_end) |
| Gets all tags within the relative window of the current call to work. More... | |
| void | get_tags_in_window (std::vector< tag_t > &v, unsigned int which_input, uint64_t rel_start, uint64_t rel_end, const pmt::pmt_t &key) |
Operates like gr::block::get_tags_in_window with the ability to only return tags with the specified key. More... | |
| void | enable_update_rate (bool en) |
| Protected Member Functions inherited from gr::basic_block | |
| basic_block (void) | |
| basic_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature) | |
| Protected constructor prevents instantiation by non-derived classes. More... | |
| void | set_input_signature (gr::io_signature::sptr iosig) |
| may only be called during constructor More... | |
| void | set_output_signature (gr::io_signature::sptr iosig) |
| may only be called during constructor More... | |
| void | set_color (vcolor color) |
| Allow the flowgraph to set for sorting and partitioning. More... | |
| vcolor | color () const |
| virtual bool | has_msg_handler (pmt::pmt_t which_port) |
Tests if there is a handler attached to port which_port. More... | |
| virtual void | dispatch_msg (pmt::pmt_t which_port, pmt::pmt_t msg) |
| Protected Attributes inherited from gr::block | |
| std::vector< long > | d_max_output_buffer |
| std::vector< long > | d_min_output_buffer |
| gr::thread::mutex | d_setlock |
| gr::logger_ptr | d_logger |
| gr::logger_ptr | d_debug_logger |
| Protected Attributes inherited from gr::basic_block | |
| std::string | d_name |
| gr::io_signature::sptr | d_input_signature |
| gr::io_signature::sptr | d_output_signature |
| long | d_unique_id |
| long | d_symbolic_id |
| std::string | d_symbol_name |
| std::string | d_symbol_alias |
| vcolor | d_color |
| bool | d_rpc_set |
| msg_queue_map_t | msg_queue |
| std::vector< boost::any > | d_rpc_vars |
| pmt::pmt_t | d_message_subscribers |
Detailed Description
A block that performs various transcendental math operations.
Possible function names can be found in the cmath library. IO may be either complex or real, double or single precision.
Possible type strings: float, double, complex_float, complex_double
output[i] = trans_fcn(input[i])
Member Typedef Documentation
Member Function Documentation
|
static |
The documentation for this class was generated from the following file:
