#include </home/trondeau/code/gnuradio/gnuradio/gr-fft/lib/ctrlport_probe_psd_impl.h>

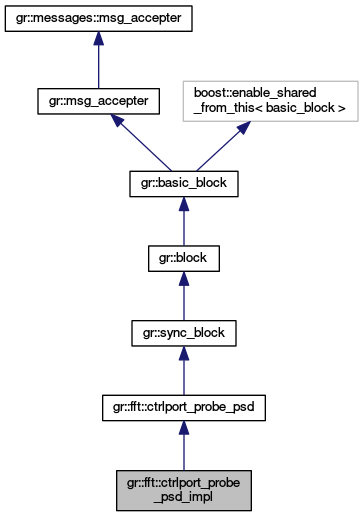

Inheritance diagram for gr::fft::ctrlport_probe_psd_impl:

Public Member Functions
	ctrlport_probe_psd_impl (const std::string &id, const std::string &desc, int len)

	~ctrlport_probe_psd_impl ()

void	setup_rpc ()
	Set up the RPC registered variables. More...

void	forecast (int noutput_items, gr_vector_int &ninput_items_required)
	Estimate input requirements given output request. More...

std::vector< gr_complex >	get ()

void	set_length (int len)

int	length () const

int	work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
	just like gr::block::general_work, only this arranges to call consume_each for you More...

Public Member Functions inherited from gr::sync_block
int	general_work (int noutput_items, gr_vector_int &ninput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
	compute output items from input items More...

int	fixed_rate_ninput_to_noutput (int ninput)
	Given ninput samples, return number of output samples that will be produced. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this. More...

int	fixed_rate_noutput_to_ninput (int noutput)
	Given noutput samples, return number of input samples required to produce noutput. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this. More...

Public Member Functions inherited from gr::block
virtual	~block ()

unsigned	history () const

void	set_history (unsigned history)

void	declare_sample_delay (int which, unsigned delay)

void	declare_sample_delay (unsigned delay)

unsigned	sample_delay (int which) const

bool	fixed_rate () const
	Return true if this block has a fixed input to output rate. More...

virtual bool	start ()
	Called to enable drivers, etc for i/o devices. More...

virtual bool	stop ()
	Called to disable drivers, etc for i/o devices. More...

void	set_output_multiple (int multiple)
	Constrain the noutput_items argument passed to forecast and general_work. More...

int	output_multiple () const

bool	output_multiple_set () const

void	set_alignment (int multiple)
	Constrains buffers to work on a set item alignment (for SIMD) More...

int	alignment () const

void	set_unaligned (int na)

int	unaligned () const

void	set_is_unaligned (bool u)

bool	is_unaligned () const

void	consume (int which_input, int how_many_items)
	Tell the scheduler `how_many_items` of input stream `which_input` were consumed. More...

void	consume_each (int how_many_items)
	Tell the scheduler `how_many_items` were consumed on each input stream. More...

void	produce (int which_output, int how_many_items)
	Tell the scheduler `how_many_items` were produced on output stream `which_output`. More...

void	set_relative_rate (double relative_rate)
	Set the approximate output rate / input rate. More...

double	relative_rate () const
	return the approximate output rate / input rate More...

uint64_t	nitems_read (unsigned int which_input)
	Return the number of items read on input stream which_input. More...

uint64_t	nitems_written (unsigned int which_output)
	Return the number of items written on output stream which_output. More...

tag_propagation_policy_t	tag_propagation_policy ()
	Asks for the policy used by the scheduler to moved tags downstream. More...

void	set_tag_propagation_policy (tag_propagation_policy_t p)
	Set the policy by the scheduler to determine how tags are moved downstream. More...

int	min_noutput_items () const
	Return the minimum number of output items this block can produce during a call to work. More...

void	set_min_noutput_items (int m)
	Set the minimum number of output items this block can produce during a call to work. More...

int	max_noutput_items ()
	Return the maximum number of output items this block will handle during a call to work. More...

void	set_max_noutput_items (int m)
	Set the maximum number of output items this block will handle during a call to work. More...

void	unset_max_noutput_items ()
	Clear the switch for using the max_noutput_items value of this block. More...

bool	is_set_max_noutput_items ()
	Ask the block if the flag is or is not set to use the internal value of max_noutput_items during a call to work. More...

void	expand_minmax_buffer (int port)

long	max_output_buffer (size_t i)
	Returns max buffer size on output port `i`. More...

void	set_max_output_buffer (long max_output_buffer)
	Sets max buffer size on all output ports. More...

void	set_max_output_buffer (int port, long max_output_buffer)
	Sets max buffer size on output port `port`. More...

long	min_output_buffer (size_t i)
	Returns min buffer size on output port `i`. More...

void	set_min_output_buffer (long min_output_buffer)
	Sets min buffer size on all output ports. More...

void	set_min_output_buffer (int port, long min_output_buffer)
	Sets min buffer size on output port `port`. More...

float	pc_noutput_items ()
	Gets instantaneous noutput_items performance counter. More...

float	pc_noutput_items_avg ()
	Gets average noutput_items performance counter. More...

float	pc_noutput_items_var ()
	Gets variance of noutput_items performance counter. More...

float	pc_nproduced ()
	Gets instantaneous num items produced performance counter. More...

float	pc_nproduced_avg ()
	Gets average num items produced performance counter. More...

float	pc_nproduced_var ()
	Gets variance of num items produced performance counter. More...

float	pc_input_buffers_full (int which)
	Gets instantaneous fullness of `which` input buffer. More...

float	pc_input_buffers_full_avg (int which)
	Gets average fullness of `which` input buffer. More...

float	pc_input_buffers_full_var (int which)
	Gets variance of fullness of `which` input buffer. More...

std::vector< float >	pc_input_buffers_full ()
	Gets instantaneous fullness of all input buffers. More...

std::vector< float >	pc_input_buffers_full_avg ()
	Gets average fullness of all input buffers. More...

std::vector< float >	pc_input_buffers_full_var ()
	Gets variance of fullness of all input buffers. More...

float	pc_output_buffers_full (int which)
	Gets instantaneous fullness of `which` input buffer. More...

float	pc_output_buffers_full_avg (int which)
	Gets average fullness of `which` input buffer. More...

float	pc_output_buffers_full_var (int which)
	Gets variance of fullness of `which` input buffer. More...

std::vector< float >	pc_output_buffers_full ()
	Gets instantaneous fullness of all output buffers. More...

std::vector< float >	pc_output_buffers_full_avg ()
	Gets average fullness of all output buffers. More...

std::vector< float >	pc_output_buffers_full_var ()
	Gets variance of fullness of all output buffers. More...

float	pc_work_time ()
	Gets instantaneous clock cycles spent in work. More...

float	pc_work_time_avg ()
	Gets average clock cycles spent in work. More...

float	pc_work_time_var ()
	Gets average clock cycles spent in work. More...

float	pc_work_time_total ()
	Gets total clock cycles spent in work. More...

void	reset_perf_counters ()
	Resets the performance counters. More...

void	setup_pc_rpc ()
	Sets up export of perf. counters to ControlPort. Only called by the scheduler. More...

bool	is_pc_rpc_set ()
	Checks if this block is already exporting perf. counters to ControlPort. More...

void	no_pc_rpc ()
	If the block calls this in its constructor, it's perf. counters will not be exported. More...

void	set_processor_affinity (const std::vector< int > &mask)
	Set the thread's affinity to processor core `n`. More...

void	unset_processor_affinity ()
	Remove processor affinity to a specific core. More...

std::vector< int >	processor_affinity ()
	Get the current processor affinity. More...

int	active_thread_priority ()
	Get the current thread priority in use. More...

int	thread_priority ()
	Get the current thread priority stored. More...

int	set_thread_priority (int priority)
	Set the current thread priority. More...

bool	update_rate () const

block_detail_sptr	detail () const

void	set_detail (block_detail_sptr detail)

Public Member Functions inherited from gr::basic_block
pmt::pmt_t	message_subscribers (pmt::pmt_t port)

virtual	~basic_block ()

long	unique_id () const

long	symbolic_id () const

std::string	name () const

std::string	symbol_name () const

gr::io_signature::sptr	input_signature () const

gr::io_signature::sptr	output_signature () const

basic_block_sptr	to_basic_block ()

bool	alias_set ()

std::string	alias ()

pmt::pmt_t	alias_pmt ()

void	set_block_alias (std::string name)

void	message_port_register_in (pmt::pmt_t port_id)

void	message_port_register_out (pmt::pmt_t port_id)

void	message_port_pub (pmt::pmt_t port_id, pmt::pmt_t msg)

void	message_port_sub (pmt::pmt_t port_id, pmt::pmt_t target)

void	message_port_unsub (pmt::pmt_t port_id, pmt::pmt_t target)

virtual bool	message_port_is_hier (pmt::pmt_t port_id)

virtual bool	message_port_is_hier_in (pmt::pmt_t port_id)

virtual bool	message_port_is_hier_out (pmt::pmt_t port_id)

pmt::pmt_t	message_ports_in ()
	Get input message port names. More...

pmt::pmt_t	message_ports_out ()
	Get output message port names. More...

void	_post (pmt::pmt_t which_port, pmt::pmt_t msg)

bool	empty_p (pmt::pmt_t which_port)
	is the queue empty? More...

bool	empty_p ()

bool	empty_handled_p (pmt::pmt_t which_port)
	are all msg ports with handlers empty? More...

bool	empty_handled_p ()

size_t	nmsgs (pmt::pmt_t which_port)
	How many messages in the queue? More...

void	insert_tail (pmt::pmt_t which_port, pmt::pmt_t msg)

pmt::pmt_t	delete_head_nowait (pmt::pmt_t which_port)

pmt::pmt_t	delete_head_blocking (pmt::pmt_t which_port)

msg_queue_t::iterator	get_iterator (pmt::pmt_t which_port)

void	erase_msg (pmt::pmt_t which_port, msg_queue_t::iterator it)

virtual bool	has_msg_port (pmt::pmt_t which_port)

bool	is_rpc_set ()
	Ask if this block has been registered to the RPC. More...

void	rpc_set ()
	When the block is registered with the RPC, set this. More...

virtual bool	check_topology (int ninputs, int noutputs)
	Confirm that ninputs and noutputs is an acceptable combination. More...

template<typename T >
void	set_msg_handler (pmt::pmt_t which_port, T msg_handler)
	Set the callback that is fired when messages are available. More...

Public Member Functions inherited from gr::msg_accepter
	msg_accepter ()

	~msg_accepter ()

void	post (pmt::pmt_t which_port, pmt::pmt_t msg)
	send `msg` to `msg_accepter` on port `which_port` More...

Public Member Functions inherited from gr::messages::msg_accepter
	msg_accepter ()

Additional Inherited Members
Public Types inherited from gr::fft::ctrlport_probe_psd
typedef boost::shared_ptr < ctrlport_probe_psd >	sptr

Public Types inherited from gr::block
enum	{ WORK_CALLED_PRODUCE = -2, WORK_DONE = -1 }
	Magic return values from general_work. More...

enum	tag_propagation_policy_t { TPP_DONT = 0, TPP_ALL_TO_ALL = 1, TPP_ONE_TO_ONE = 2 }

Static Public Member Functions inherited from gr::fft::ctrlport_probe_psd
static sptr	make (const std::string &id, const std::string &desc, int len)
	Make a ControlPort probe block. More...

Protected Types inherited from gr::basic_block
enum	vcolor { WHITE, GREY, BLACK }

Protected Member Functions inherited from gr::sync_block
	sync_block (void)

	sync_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)

Protected Member Functions inherited from gr::block
	block (void)

	block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)

void	set_fixed_rate (bool fixed_rate)

void	add_item_tag (unsigned int which_output, uint64_t abs_offset, const pmt::pmt_t &key, const pmt::pmt_t &value, const pmt::pmt_t &srcid=pmt::PMT_F)
	Adds a new tag onto the given output buffer. More...

void	add_item_tag (unsigned int which_output, const tag_t &tag)
	Adds a new tag onto the given output buffer. More...

void	remove_item_tag (unsigned int which_input, uint64_t abs_offset, const pmt::pmt_t &key, const pmt::pmt_t &value, const pmt::pmt_t &srcid=pmt::PMT_F)
	Removes a tag from the given input buffer. More...

void	remove_item_tag (unsigned int which_input, const tag_t &tag)
	Removes a tag from the given input buffer. More...

void	get_tags_in_range (std::vector< tag_t > &v, unsigned int which_input, uint64_t abs_start, uint64_t abs_end)
	Given a [start,end), returns a vector of all tags in the range. More...

void	get_tags_in_range (std::vector< tag_t > &v, unsigned int which_input, uint64_t abs_start, uint64_t abs_end, const pmt::pmt_t &key)
	Given a [start,end), returns a vector of all tags in the range with a given key. More...

void	enable_update_rate (bool en)

Protected Member Functions inherited from gr::basic_block
	basic_block (void)

	basic_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)
	Protected constructor prevents instantiation by non-derived classes. More...

void	set_input_signature (gr::io_signature::sptr iosig)
	may only be called during constructor More...

void	set_output_signature (gr::io_signature::sptr iosig)
	may only be called during constructor More...

void	set_color (vcolor color)
	Allow the flowgraph to set for sorting and partitioning. More...

vcolor	color () const

virtual bool	has_msg_handler (pmt::pmt_t which_port)
	Tests if there is a handler attached to port `which_port`. More...

virtual void	dispatch_msg (pmt::pmt_t which_port, pmt::pmt_t msg)

Protected Attributes inherited from gr::block
std::vector< long >	d_max_output_buffer

std::vector< long >	d_min_output_buffer

gr::thread::mutex	d_setlock

gr::logger_ptr	d_logger

gr::logger_ptr	d_debug_logger

Protected Attributes inherited from gr::basic_block
std::string	d_name

gr::io_signature::sptr	d_input_signature

gr::io_signature::sptr	d_output_signature

long	d_unique_id

long	d_symbolic_id

std::string	d_symbol_name

std::string	d_symbol_alias

vcolor	d_color

bool	d_rpc_set

msg_queue_map_t	msg_queue

std::vector< boost::any >	d_rpc_vars

pmt::pmt_t	d_message_subscribers

Constructor & Destructor Documentation

gr::fft::ctrlport_probe_psd_impl::ctrlport_probe_psd_impl	(	const std::string &	id,
		const std::string &	desc,
		int	len
	)

gr::fft::ctrlport_probe_psd_impl::~ctrlport_probe_psd_impl ( )

Member Function Documentation

void gr::fft::ctrlport_probe_psd_impl::forecast	(	int	noutput_items,
		gr_vector_int &	ninput_items_required
	)

virtual

Estimate input requirements given output request.

Parameters

noutput_items	number of output items to produce
ninput_items_required	number of input items required on each input stream

Given a request to product noutput_items, estimate the number of data items required on each input stream. The estimate doesn't have to be exact, but should be close.

Reimplemented from gr::sync_block.

std::vector<gr_complex> gr::fft::ctrlport_probe_psd_impl::get ( )

virtual

Implements gr::fft::ctrlport_probe_psd.

int gr::fft::ctrlport_probe_psd_impl::length ( ) const

virtual

Implements gr::fft::ctrlport_probe_psd.

void gr::fft::ctrlport_probe_psd_impl::set_length ( int len )

virtual

Implements gr::fft::ctrlport_probe_psd.

void gr::fft::ctrlport_probe_psd_impl::setup_rpc ( )

virtual

Set up the RPC registered variables.

This must be overloaded by a block that wants to use controlport. This is where rpcbasic_register_{get,set} pointers are created, which then get wrapped as shared pointers (rpcbasic_sptr(...)) and stored using add_rpc_variable.

Reimplemented from gr::basic_block.

int gr::fft::ctrlport_probe_psd_impl::work	(	int	noutput_items,
		gr_vector_const_void_star &	input_items,
		gr_vector_void_star &	output_items
	)

virtual

just like gr::block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr::sync_block.

The documentation for this class was generated from the following file:

ctrlport_probe_psd_impl.h

Public Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation
