gr::digital::chunks_to_symbols_bf Class Reference

Map a stream of symbol indexes (unpacked bytes or shorts) to stream of float or complex constellation points in D dimensions (D = 1 by default)input: stream of unsigned char; output: stream of float. More...

#include <chunks_to_symbols_bf.h>

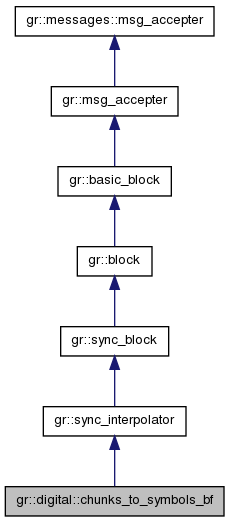

Inheritance diagram for gr::digital::chunks_to_symbols_bf:

List of all members.

Public Types
typedef boost::shared_ptr < chunks_to_symbols_bf >	sptr
Public Member Functions
virtual int	D () const =0
virtual std::vector< float >	symbol_table () const =0
Static Public Member Functions
static sptr	make (const std::vector< float > &symbol_table, const int D=1)

---

Detailed Description

Map a stream of symbol indexes (unpacked bytes or shorts) to stream of float or complex constellation points in D dimensions (D = 1 by default)

input: stream of unsigned char; output: stream of float.

out[n D + k] = symbol_table[in[n] D + k], k=0,1,...,D-1

The combination of gr::blocks::packed_to_unpacked_XX followed by digital_chunks_to_symbols_XY handles the general case of mapping from a stream of bytes or shorts into arbitrary float or complex symbols.

See also:

gr::blocks::packed_to_unpacked_bb, gr::blocks::unpacked_to_packed_bb,

gr::blocks::packed_to_unpacked_ss, gr::blocks::unpacked_to_packed_ss,

gr::digital::chunks_to_symbols_bf, gr::digital::chunks_to_symbols_bc.

gr::digital::chunks_to_symbols_sf, gr::digital::chunks_to_symbols_sc.

---

Member Typedef Documentation

typedef boost::shared_ptr<chunks_to_symbols_bf> gr::digital::chunks_to_symbols_bf::sptr

---

Member Function Documentation

virtual int gr::digital::chunks_to_symbols_bf::D

(

)

const [pure virtual]

static sptr gr::digital::chunks_to_symbols_bf::make	(	const std::vector< float > &	symbol_table,
		const int	D = 1
	)		[static]

Make a chunks-to-symbols block.

Parameters:

symbol_table,:	list that maps chunks to symbols.
D,:	dimension of table.

virtual std::vector<float> gr::digital::chunks_to_symbols_bf::symbol_table

(

)

const [pure virtual]

---

The documentation for this class was generated from the following file:

• chunks_to_symbols_bf.h
