gr::analog::pwr_squelch_ff Class Reference

gate or zero output when input power below threshold More...

#include <pwr_squelch_ff.h>

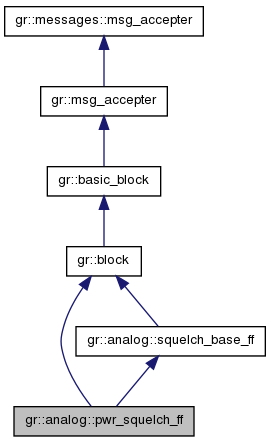

Inheritance diagram for gr::analog::pwr_squelch_ff:

List of all members.

Public Types
typedef boost::shared_ptr < pwr_squelch_ff >	sptr
Public Member Functions
virtual std::vector< float >	squelch_range () const =0
virtual double	threshold () const =0
virtual void	set_threshold (double db)=0
virtual void	set_alpha (double alpha)=0
virtual int	ramp () const =0
virtual void	set_ramp (int ramp)=0
virtual bool	gate () const =0
virtual void	set_gate (bool gate)=0
virtual bool	unmuted () const =0
Static Public Member Functions
static sptr	make (double db, double alpha=0.0001, int ramp=0, bool gate=false)
	Make power-based squelch block.
Protected Member Functions
virtual void	update_state (const float &in)=0
virtual bool	mute () const =0

---

Detailed Description

gate or zero output when input power below threshold

---

Member Typedef Documentation

typedef boost::shared_ptr<pwr_squelch_ff> gr::analog::pwr_squelch_ff::sptr

---

Member Function Documentation

virtual bool gr::analog::pwr_squelch_ff::gate

(

)

const [pure virtual]

Implements gr::analog::squelch_base_ff.

static sptr gr::analog::pwr_squelch_ff::make	(	double	db,
		double	alpha = 0.0001,
		int	ramp = 0,
		bool	gate = false
	)		[static]

Make power-based squelch block.

Parameters:

db	threshold (in dB) for power squelch
alpha	Gain of averaging filter
ramp	sets response characteristic.
gate	if true, no output if no squelch tone. if false, output 0's if no squelch tone.

virtual bool gr::analog::pwr_squelch_ff::mute

(

)

const [protected, pure virtual]

Implements gr::analog::squelch_base_ff.

virtual int gr::analog::pwr_squelch_ff::ramp

(

)

const [pure virtual]

Implements gr::analog::squelch_base_ff.

virtual void gr::analog::pwr_squelch_ff::set_alpha

(

double

alpha

)

[pure virtual]

virtual void gr::analog::pwr_squelch_ff::set_gate

(

bool

gate

)

[pure virtual]

Implements gr::analog::squelch_base_ff.

virtual void gr::analog::pwr_squelch_ff::set_ramp

(

int

ramp

)

[pure virtual]

Implements gr::analog::squelch_base_ff.

virtual void gr::analog::pwr_squelch_ff::set_threshold

(

double

db

)

[pure virtual]

virtual std::vector<float> gr::analog::pwr_squelch_ff::squelch_range

(

)

const [pure virtual]

Implements gr::analog::squelch_base_ff.

virtual double gr::analog::pwr_squelch_ff::threshold

(

)

const [pure virtual]

virtual bool gr::analog::pwr_squelch_ff::unmuted

(

)

const [pure virtual]

Implements gr::analog::squelch_base_ff.

virtual void gr::analog::pwr_squelch_ff::update_state

(

const float &

in

)

[protected, pure virtual]

Implements gr::analog::squelch_base_ff.

---

The documentation for this class was generated from the following file:

• pwr_squelch_ff.h
