gr::analog::ctcss_squelch_ff Class Reference

gate or zero output if CTCSS tone not present More...

#include <ctcss_squelch_ff.h>

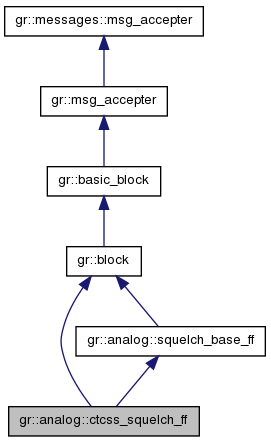

Inheritance diagram for gr::analog::ctcss_squelch_ff:

List of all members.

Public Types
typedef boost::shared_ptr < ctcss_squelch_ff >	sptr
Public Member Functions
virtual std::vector< float >	squelch_range () const =0
virtual float	level () const =0
virtual void	set_level (float level)=0
virtual int	len () const =0
virtual int	ramp () const =0
virtual void	set_ramp (int ramp)=0
virtual bool	gate () const =0
virtual void	set_gate (bool gate)=0
virtual bool	unmuted () const =0
Static Public Member Functions
static sptr	make (int rate, float freq, float level, int len, int ramp, bool gate)
	Make CTCSS tone squelch block.
Protected Member Functions
virtual void	update_state (const float &in)=0
virtual bool	mute () const =0

---

Detailed Description

gate or zero output if CTCSS tone not present

---

Member Typedef Documentation

typedef boost::shared_ptr<ctcss_squelch_ff> gr::analog::ctcss_squelch_ff::sptr

---

Member Function Documentation

virtual bool gr::analog::ctcss_squelch_ff::gate

(

)

const [pure virtual]

Implements gr::analog::squelch_base_ff.

virtual int gr::analog::ctcss_squelch_ff::len

(

)

const [pure virtual]

virtual float gr::analog::ctcss_squelch_ff::level

(

)

const [pure virtual]

static sptr gr::analog::ctcss_squelch_ff::make	(	int	rate,
		float	freq,
		float	level,
		int	len,
		int	ramp,
		bool	gate
	)		[static]

Make CTCSS tone squelch block.

Parameters:

rate	gain of the internal frequency filters.
freq	frequency value to use as the squelch tone.
level	threshold level for the squelch tone.
len	length of the frequency filters.
ramp	sets response characteristic.
gate	if true, no output if no squelch tone. if false, output 0's if no squelch tone.

virtual bool gr::analog::ctcss_squelch_ff::mute

(

)

const [protected, pure virtual]

Implements gr::analog::squelch_base_ff.

virtual int gr::analog::ctcss_squelch_ff::ramp

(

)

const [pure virtual]

Implements gr::analog::squelch_base_ff.

virtual void gr::analog::ctcss_squelch_ff::set_gate

(

bool

gate

)

[pure virtual]

Implements gr::analog::squelch_base_ff.

virtual void gr::analog::ctcss_squelch_ff::set_level

(

float

level

)

[pure virtual]

virtual void gr::analog::ctcss_squelch_ff::set_ramp

(

int

ramp

)

[pure virtual]

Implements gr::analog::squelch_base_ff.

virtual std::vector<float> gr::analog::ctcss_squelch_ff::squelch_range

(

)

const [pure virtual]

Implements gr::analog::squelch_base_ff.

virtual bool gr::analog::ctcss_squelch_ff::unmuted

(

)

const [pure virtual]

Implements gr::analog::squelch_base_ff.

virtual void gr::analog::ctcss_squelch_ff::update_state

(

const float &

in

)

[protected, pure virtual]

Implements gr::analog::squelch_base_ff.

---

The documentation for this class was generated from the following file:

• ctcss_squelch_ff.h
