#include <digital_api.h>#include <vector>#include <math.h>#include <gr_complex.h>#include <boost/enable_shared_from_this.hpp>#include <digital_metric_type.h>

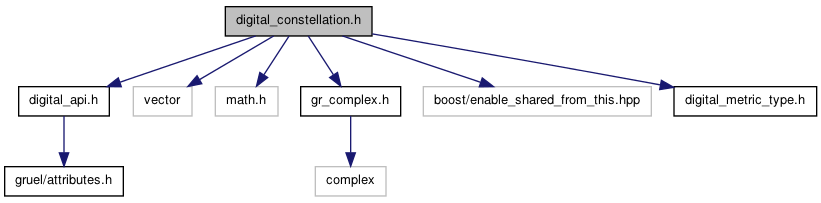

Include dependency graph for digital_constellation.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| class | digital_constellation |
| An abstracted constellation objectThe constellation objects hold the necessary information to pass around constellation information for modulators and demodulators. These objects contain the mapping between the bits and the constellation points used to represent them as well as methods for slicing the symbol space. Various implementations are possible for efficiency and ease of use. More... | |
| class | digital_constellation_calcdist |
| Calculate Euclidian distance for any constellationConstellation which calculates the distance to each point in the constellation for decision making. Inefficient for large constellations. More... | |
| class | digital_constellation_sector |
| Sectorized digital constellationConstellation space is divided into sectors. Each sector is associated with the nearest constellation point. More... | |
| class | digital_constellation_rect |
| class | digital_constellation_psk |
| digital_constellation_pskConstellation space is divided into pie slices sectors. More... | |
| class | digital_constellation_bpsk |
| Digital constellation for BPSK. More... | |
| class | digital_constellation_qpsk |
| Digital constellation for QPSK. More... | |
| class | digital_constellation_dqpsk |
| Digital constellation for DQPSK. More... | |
| class | digital_constellation_8psk |
| Digital constellation for 8PSK. More... | |
Functions | |
| DIGITAL_API digital_constellation_calcdist_sptr | digital_make_constellation_calcdist (std::vector< gr_complex > constellation, std::vector< unsigned int > pre_diff_code, unsigned int rotational_symmetry, unsigned int dimensionality) |
| DIGITAL_API digital_constellation_rect_sptr | digital_make_constellation_rect (std::vector< gr_complex > constellation, std::vector< unsigned int > pre_diff_code, unsigned int rotational_symmetry, unsigned int real_sectors, unsigned int imag_sectors, float width_real_sectors, float width_imag_sectors) |
| DIGITAL_API digital_constellation_psk_sptr | digital_make_constellation_psk (std::vector< gr_complex > constellation, std::vector< unsigned int > pre_diff_code, unsigned int n_sectors) |
| DIGITAL_API digital_constellation_bpsk_sptr | digital_make_constellation_bpsk () |
| DIGITAL_API digital_constellation_qpsk_sptr | digital_make_constellation_qpsk () |
| DIGITAL_API digital_constellation_dqpsk_sptr | digital_make_constellation_dqpsk () |
| DIGITAL_API digital_constellation_8psk_sptr | digital_make_constellation_8psk () |
Function Documentation
| DIGITAL_API digital_constellation_8psk_sptr digital_make_constellation_8psk | ( | ) |
| DIGITAL_API digital_constellation_bpsk_sptr digital_make_constellation_bpsk | ( | ) |
| DIGITAL_API digital_constellation_calcdist_sptr digital_make_constellation_calcdist | ( | std::vector< gr_complex > | constellation, |
| std::vector< unsigned int > | pre_diff_code, | ||
| unsigned int | rotational_symmetry, | ||
| unsigned int | dimensionality | ||
| ) |
| DIGITAL_API digital_constellation_dqpsk_sptr digital_make_constellation_dqpsk | ( | ) |
| DIGITAL_API digital_constellation_psk_sptr digital_make_constellation_psk | ( | std::vector< gr_complex > | constellation, |
| std::vector< unsigned int > | pre_diff_code, | ||
| unsigned int | n_sectors | ||
| ) |
| DIGITAL_API digital_constellation_qpsk_sptr digital_make_constellation_qpsk | ( | ) |
| DIGITAL_API digital_constellation_rect_sptr digital_make_constellation_rect | ( | std::vector< gr_complex > | constellation, |
| std::vector< unsigned int > | pre_diff_code, | ||
| unsigned int | rotational_symmetry, | ||
| unsigned int | real_sectors, | ||
| unsigned int | imag_sectors, | ||
| float | width_real_sectors, | ||
| float | width_imag_sectors | ||
| ) |
