GNU Radio 3.5.3.2 C++ API
|
#include <gri_control_loop.h>

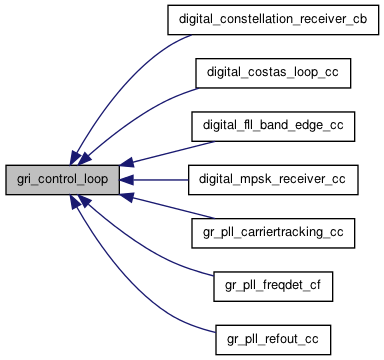

Public Member Functions | |
gri_control_loop (float loop_bw, float max_freq, float min_freq) | |
virtual | ~gri_control_loop () |
void | update_gains () |
update the system gains from the loop bandwidth and damping factor | |
void | advance_loop (float error) |
update the system gains from the loop bandwidth and damping factor | |
void | phase_wrap () |
Keep the phase between -2pi and 2pi. | |
void | frequency_limit () |
Keep the frequency between d_min_freq and d_max_freq. | |
void | set_loop_bandwidth (float bw) |
Set the loop bandwidth. | |
void | set_damping_factor (float df) |
Set the loop damping factor. | |
void | set_alpha (float alpha) |
Set the loop gain alpha. | |
void | set_beta (float beta) |
Set the loop gain beta. | |
void | set_frequency (float freq) |
Set the Costas loop's frequency. | |
void | set_phase (float phase) |
Set the Costas loop's phase. | |
float | get_loop_bandwidth () const |
Returns the loop bandwidth. | |
float | get_damping_factor () const |
Returns the loop damping factor. | |
float | get_alpha () const |
Returns the loop gain alpha. | |
float | get_beta () const |
Returns the loop gain beta. | |
float | get_frequency () const |
Get the Costas loop's frequency estimate. | |
float | get_phase () const |
Get the Costas loop's phase estimate. | |
Protected Attributes | |
float | d_phase |
float | d_freq |
float | d_max_freq |
float | d_min_freq |
float | d_damping |
float | d_loop_bw |
float | d_alpha |
float | d_beta |
gri_control_loop::gri_control_loop | ( | float | loop_bw, |
float | max_freq, | ||
float | min_freq | ||
) |
virtual gri_control_loop::~gri_control_loop | ( | ) | [virtual] |
void gri_control_loop::advance_loop | ( | float | error | ) |
update the system gains from the loop bandwidth and damping factor
This function updates the system gains based on the loop bandwidth and damping factor of the system. These two factors can be set separately through their own set functions.
void gri_control_loop::frequency_limit | ( | ) |
Keep the frequency between d_min_freq and d_max_freq.
This function keeps the frequency between d_min_freq and d_max_freq. If the frequency is greater than d_max_freq, it is set to d_max_freq. If the frequency is less than d_min_freq, it is set to d_min_freq.
This function should be called after advance_loop to keep the frequency in the specified region. It is set as a separate method in case another way is desired as this is fairly heavy-handed.
float gri_control_loop::get_alpha | ( | ) | const |
Returns the loop gain alpha.
float gri_control_loop::get_beta | ( | ) | const |
Returns the loop gain beta.
float gri_control_loop::get_damping_factor | ( | ) | const |
Returns the loop damping factor.
float gri_control_loop::get_frequency | ( | ) | const |
Get the Costas loop's frequency estimate.
float gri_control_loop::get_loop_bandwidth | ( | ) | const |
Returns the loop bandwidth.
float gri_control_loop::get_phase | ( | ) | const |
Get the Costas loop's phase estimate.
void gri_control_loop::phase_wrap | ( | ) |
Keep the phase between -2pi and 2pi.
This function keeps the phase between -2pi and 2pi. If the phase is greater than 2pi by d, it wraps around to be -2pi+d; similarly if it is less than -2pi by d, it wraps around to 2pi-d.
This function should be called after advance_loop to keep the phase in a good operating region. It is set as a separate method in case another way is desired as this is fairly heavy-handed.
void gri_control_loop::set_alpha | ( | float | alpha | ) |
Set the loop gain alpha.
Set's the loop filter's alpha gain parameter.
This value should really only be set by adjusting the loop bandwidth and damping factor.
alpha | (float) new alpha gain |
void gri_control_loop::set_beta | ( | float | beta | ) |
Set the loop gain beta.
Set's the loop filter's beta gain parameter.
This value should really only be set by adjusting the loop bandwidth and damping factor.
beta | (float) new beta gain |
void gri_control_loop::set_damping_factor | ( | float | df | ) |
Set the loop damping factor.
Set the loop filter's damping factor to df
. The damping factor should be sqrt(2)/2.0 for critically damped systems. Set it to anything else only if you know what you are doing. It must be a number between 0 and 1.
When a new damping factor is set, the gains, alpha and beta, of the loop are recalculated by a call to update_gains().
df | (float) new damping factor |
void gri_control_loop::set_frequency | ( | float | freq | ) |
Set the Costas loop's frequency.
Set's the Costas Loop's frequency. While this is normally updated by the inner loop of the algorithm, it could be useful to manually initialize, set, or reset this under certain circumstances.
freq | (float) new frequency |
void gri_control_loop::set_loop_bandwidth | ( | float | bw | ) |
Set the loop bandwidth.
Set the loop filter's bandwidth to bw
. This should be between 2*pi/200 and 2*pi/100 (in rads/samp). It must also be a positive number.
When a new damping factor is set, the gains, alpha and beta, of the loop are recalculated by a call to update_gains().
bw | (float) new bandwidth |
void gri_control_loop::set_phase | ( | float | phase | ) |
Set the Costas loop's phase.
Set's the Costas Loop's phase. While this is normally updated by the inner loop of the algorithm, it could be useful to manually initialize, set, or reset this under certain circumstances.
phase | (float) new phase |
void gri_control_loop::update_gains | ( | ) |
update the system gains from the loop bandwidth and damping factor
This function updates the system gains based on the loop bandwidth and damping factor of the system. These two factors can be set separately through their own set functions.
float gri_control_loop::d_alpha [protected] |
float gri_control_loop::d_beta [protected] |
float gri_control_loop::d_damping [protected] |
float gri_control_loop::d_freq [protected] |
float gri_control_loop::d_loop_bw [protected] |
float gri_control_loop::d_max_freq [protected] |
float gri_control_loop::d_min_freq [protected] |
float gri_control_loop::d_phase [protected] |
