gr_quadrature_demod_cf Class Reference

quadrature demodulator: complex in, float outThis can be used to demod FM, FSK, GMSK, etc. The input is complex baseband. More...

#include <gr_quadrature_demod_cf.h>

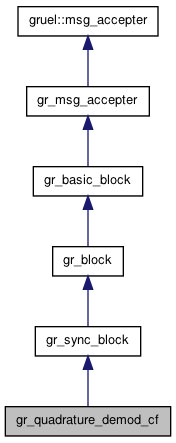

Inheritance diagram for gr_quadrature_demod_cf:

List of all members.

Public Member Functions

void set_gain (float gain)
float gain () const
int work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
 just like gr_block::general_work, only this arranges to call consume_each for you

Friends

GR_CORE_API
gr_quadrature_demod_cf_sptr
gr_make_quadrature_demod_cf (float gain)

Detailed Description

quadrature demodulator: complex in, float out

This can be used to demod FM, FSK, GMSK, etc. The input is complex baseband.


Member Function Documentation

float gr_quadrature_demod_cf::gain ( ) const [inline]
void gr_quadrature_demod_cf::set_gain ( float  gain) [inline]
int gr_quadrature_demod_cf::work ( int  noutput_items,
gr_vector_const_void_star input_items,
gr_vector_void_star output_items
) [virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.


Friends And Related Function Documentation

GR_CORE_API gr_quadrature_demod_cf_sptr gr_make_quadrature_demod_cf ( float  gain) [friend]

The documentation for this class was generated from the following file:
