gr_probe_avg_mag_sqrd_c Class Reference

compute avg magnitude squared.input: gr_complex More...

#include <gr_probe_avg_mag_sqrd_c.h>

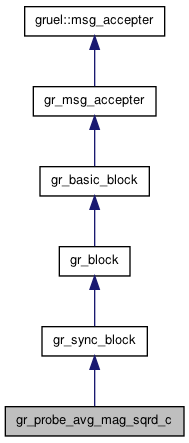

Inheritance diagram for gr_probe_avg_mag_sqrd_c:

List of all members.

Public Member Functions
	~gr_probe_avg_mag_sqrd_c ()
int	work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
	just like gr_block::general_work, only this arranges to call consume_each for you
bool	unmuted () const
double	level () const
double	threshold () const
void	set_alpha (double alpha)
void	set_threshold (double decibels)
Friends
GR_CORE_API gr_probe_avg_mag_sqrd_c_sptr	gr_make_probe_avg_mag_sqrd_c (double threshold_db, double alpha)

---

Detailed Description

compute avg magnitude squared.

input: gr_complex

Compute a running average of the magnitude squared of the the input. The level and indication as to whether the level exceeds threshold can be retrieved with the level and unmuted accessors.

---

Constructor & Destructor Documentation

gr_probe_avg_mag_sqrd_c::~gr_probe_avg_mag_sqrd_c

(

)

---

Member Function Documentation

double gr_probe_avg_mag_sqrd_c::level

(

)

const [inline]

void gr_probe_avg_mag_sqrd_c::set_alpha

(

double

alpha

)

void gr_probe_avg_mag_sqrd_c::set_threshold

(

double

decibels

)

double gr_probe_avg_mag_sqrd_c::threshold

(

)

const

bool gr_probe_avg_mag_sqrd_c::unmuted

(

)

const [inline]

int gr_probe_avg_mag_sqrd_c::work	(	int	noutput_items,
		gr_vector_const_void_star &	input_items,
		gr_vector_void_star &	output_items
	)		[virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.

---

Friends And Related Function Documentation

GR_CORE_API gr_probe_avg_mag_sqrd_c_sptr gr_make_probe_avg_mag_sqrd_c	(	double	threshold_db,
		double	alpha
	)		[friend]

---

The documentation for this class was generated from the following file:

• gr_probe_avg_mag_sqrd_c.h
