GNU Radio 3.5.3.2 C++ API
gr_pfb_synthesis_filterbank_ccf Class Reference

Polyphase synthesis filterbank with gr_complex input, gr_complex output and float taps. More...

#include <gr_pfb_synthesis_filterbank_ccf.h>

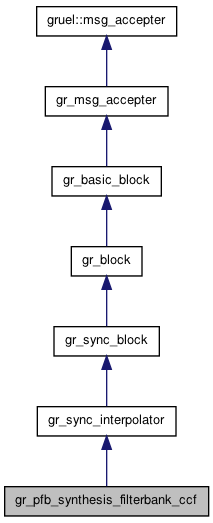

Inheritance diagram for gr_pfb_synthesis_filterbank_ccf:

List of all members.

Public Member Functions

 ~gr_pfb_synthesis_filterbank_ccf ()
void set_taps (const std::vector< float > &taps)
void print_taps ()
int work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
 just like gr_block::general_work, only this arranges to call consume_each for you

Friends

GR_CORE_API
gr_pfb_synthesis_filterbank_ccf_sptr
gr_make_pfb_synthesis_filterbank_ccf (unsigned int numchans, const std::vector< float > &taps)

Detailed Description

Polyphase synthesis filterbank with gr_complex input, gr_complex output and float taps.


Constructor & Destructor Documentation

gr_pfb_synthesis_filterbank_ccf::~gr_pfb_synthesis_filterbank_ccf ( )

Member Function Documentation

void gr_pfb_synthesis_filterbank_ccf::print_taps ( )

Print all of the filterbank taps to screen.

void gr_pfb_synthesis_filterbank_ccf::set_taps ( const std::vector< float > &  taps)

Resets the filterbank's filter taps with the new prototype filter

Parameters:
taps(vector/list of floats) The prototype filter to populate the filterbank.
int gr_pfb_synthesis_filterbank_ccf::work ( int  noutput_items,
gr_vector_const_void_star input_items,
gr_vector_void_star output_items
) [virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.


Friends And Related Function Documentation

GR_CORE_API gr_pfb_synthesis_filterbank_ccf_sptr gr_make_pfb_synthesis_filterbank_ccf ( unsigned int  numchans,
const std::vector< float > &  taps
) [friend]

Build the polyphase synthesis filterbank.

Parameters:
numchans(unsigned integer) Specifies the number of channels M
taps(vector/list of floats) The prototype filter to populate the filterbank.

The documentation for this class was generated from the following file:
