gr_deinterleave Class Reference

deinterleave a single input into N outputs More...

#include <gr_deinterleave.h>

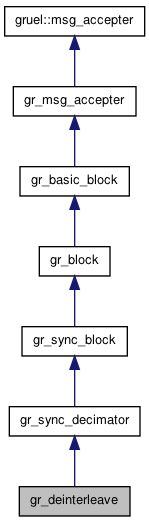

Inheritance diagram for gr_deinterleave:

List of all members.

Public Member Functions

 ~gr_deinterleave ()
int work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
 just like gr_block::general_work, only this arranges to call consume_each for you
bool check_topology (int ninputs, int noutputs)
 Confirm that ninputs and noutputs is an acceptable combination.

Friends

GR_CORE_API gr_deinterleave_sptr gr_make_deinterleave (size_t itemsize)

Detailed Description

deinterleave a single input into N outputs


Constructor & Destructor Documentation

gr_deinterleave::~gr_deinterleave ( )

Member Function Documentation

bool gr_deinterleave::check_topology ( int  ninputs,
int  noutputs
) [virtual]

Confirm that ninputs and noutputs is an acceptable combination.

Parameters:
ninputsnumber of input streams connected
noutputsnumber of output streams connected
Returns:
true if this is a valid configuration for this block.

This function is called by the runtime system whenever the topology changes. Most classes do not need to override this. This check is in addition to the constraints specified by the input and output gr_io_signatures.

Reimplemented from gr_basic_block.

int gr_deinterleave::work ( int  noutput_items,
gr_vector_const_void_star input_items,
gr_vector_void_star output_items
) [virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.


Friends And Related Function Documentation

GR_CORE_API gr_deinterleave_sptr gr_make_deinterleave ( size_t  itemsize) [friend]

The documentation for this class was generated from the following file:
