GNU Radio 3.5.3.2 C++ API
gr_cpfsk_bc Class Reference

Perform continuous phase 2-level frequency shift keying modulation on an input stream of unpacked bits. More...

#include <gr_cpfsk_bc.h>

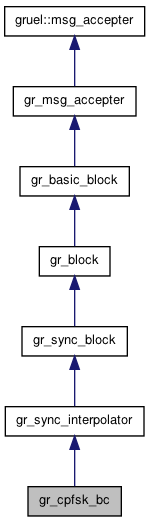

Inheritance diagram for gr_cpfsk_bc:

List of all members.

Public Member Functions

 ~gr_cpfsk_bc ()
void set_amplitude (float amplitude)
int work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
 just like gr_block::general_work, only this arranges to call consume_each for you

Friends

GR_CORE_API gr_cpfsk_bc_sptr gr_make_cpfsk_bc (float k, float ampl, int samples_per_sym)

Detailed Description

Perform continuous phase 2-level frequency shift keying modulation on an input stream of unpacked bits.

Parameters:
kmodulation index
amploutput amplitude
samples_per_symnumber of output samples per input bit

Constructor & Destructor Documentation

gr_cpfsk_bc::~gr_cpfsk_bc ( )

Member Function Documentation

void gr_cpfsk_bc::set_amplitude ( float  amplitude) [inline]
int gr_cpfsk_bc::work ( int  noutput_items,
gr_vector_const_void_star input_items,
gr_vector_void_star output_items
) [virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.


Friends And Related Function Documentation

GR_CORE_API gr_cpfsk_bc_sptr gr_make_cpfsk_bc ( float  k,
float  ampl,
int  samples_per_sym
) [friend]

The documentation for this class was generated from the following file:
