GNU Radio 3.5.3.2 C++ API
digital_fll_band_edge_cc Class Reference

Frequency Lock Loop using band-edge filters. More...

#include <digital_fll_band_edge_cc.h>

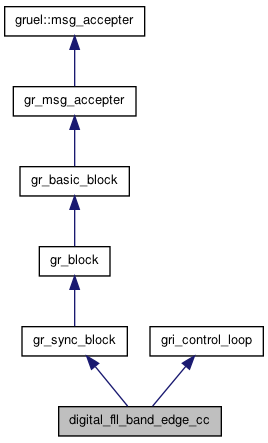

Inheritance diagram for digital_fll_band_edge_cc:

List of all members.

Public Member Functions

 ~digital_fll_band_edge_cc ()
void set_samples_per_symbol (float sps)
 Set the number of samples per symbol.
void set_rolloff (float rolloff)
 Set the rolloff factor of the shaping filter.
void set_filter_size (int filter_size)
 Set the number of taps in the filter.
float get_samples_per_symbol () const
 Returns the number of sampler per symbol used for the filter.
float get_rolloff () const
 Returns the rolloff factor used for the filter.
int get_filter_size () const
 Returns the number of taps of the filter.
void print_taps ()
int work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
 just like gr_block::general_work, only this arranges to call consume_each for you

Friends

DIGITAL_API
digital_fll_band_edge_cc_sptr
digital_make_fll_band_edge_cc (float samps_per_sym, float rolloff, int filter_size, float bandwidth)

Detailed Description

Frequency Lock Loop using band-edge filters.

The frequency lock loop derives a band-edge filter that covers the upper and lower bandwidths of a digitally-modulated signal. The bandwidth range is determined by the excess bandwidth (e.g., rolloff factor) of the modulated signal. The placement in frequency of the band-edges is determined by the oversampling ratio (number of samples per symbol) and the excess bandwidth. The size of the filters should be fairly large so as to average over a number of symbols.

The FLL works by filtering the upper and lower band edges into x_u(t) and x_l(t), respectively. These are combined to form cc(t) = x_u(t) + x_l(t) and ss(t) = x_u(t) - x_l(t). Combining these to form the signal e(t) = Re{cc(t) \times ss(t)^*} (where ^* is the complex conjugate) provides an error signal at the DC term that is directly proportional to the carrier frequency. We then make a second-order loop using the error signal that is the running average of e(t).

In practice, the above equation can be simplified by just comparing the absolute value squared of the output of both filters: abs(x_l(t))^2 - abs(x_u(t))^2 = norm(x_l(t)) - norm(x_u(t)).

In theory, the band-edge filter is the derivative of the matched filter in frequency, (H_be(f) = \frac{H(f)}{df}. In practice, this comes down to a quarter sine wave at the point of the matched filter's rolloff (if it's a raised-cosine, the derivative of a cosine is a sine). Extend this sine by another quarter wave to make a half wave around the band-edges is equivalent in time to the sum of two sinc functions. The baseband filter fot the band edges is therefore derived from this sum of sincs. The band edge filters are then just the baseband signal modulated to the correct place in frequency. All of these calculations are done in the 'design_filter' function.

Note: We use FIR filters here because the filters have to have a flat phase response over the entire frequency range to allow their comparisons to be valid.

It is very important that the band edge filters be the derivatives of the pulse shaping filter, and that they be linear phase. Otherwise, the variance of the error will be very large.


Constructor & Destructor Documentation

digital_fll_band_edge_cc::~digital_fll_band_edge_cc ( )

Member Function Documentation

int digital_fll_band_edge_cc::get_filter_size ( ) const

Returns the number of taps of the filter.

float digital_fll_band_edge_cc::get_rolloff ( ) const

Returns the rolloff factor used for the filter.

float digital_fll_band_edge_cc::get_samples_per_symbol ( ) const

Returns the number of sampler per symbol used for the filter.

void digital_fll_band_edge_cc::print_taps ( )

Print the taps to screen.

void digital_fll_band_edge_cc::set_filter_size ( int  filter_size)

Set the number of taps in the filter.

This sets the number of taps in the band-edge filters. Setting this will force a recalculation of the filter taps.

This should be about the same number of taps used in the transmitter's shaping filter and also not very large. A large number of taps will result in a large delay between input and frequency estimation, and so will not be as accurate. Between 30 and 70 taps is usual.

Parameters:
filter_size(float) number of taps in the filters
void digital_fll_band_edge_cc::set_rolloff ( float  rolloff)

Set the rolloff factor of the shaping filter.

This sets the rolloff factor that is used in the pulse shaping filter and is used to calculate the filter taps. Changing this will force a recalculation of the filter taps.

This should be the same value that is used in the transmitter's pulse shaping filter. It must be between 0 and 1 and is usually between 0.2 and 0.5 (where 0.22 and 0.35 are commonly used values).

Parameters:
rolloff(float) new shaping filter rolloff factor [0,1]
void digital_fll_band_edge_cc::set_samples_per_symbol ( float  sps)

Set the number of samples per symbol.

Set's the number of samples per symbol the system should use. This value is uesd to calculate the filter taps and will force a recalculation.

Parameters:
sps(float) new samples per symbol
int digital_fll_band_edge_cc::work ( int  noutput_items,
gr_vector_const_void_star input_items,
gr_vector_void_star output_items
) [virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.


Friends And Related Function Documentation

DIGITAL_API digital_fll_band_edge_cc_sptr digital_make_fll_band_edge_cc ( float  samps_per_sym,
float  rolloff,
int  filter_size,
float  bandwidth
) [friend]

Build the FLL

Parameters:
samps_per_sym(float) Number of samples per symbol of signal
rolloff(float) Rolloff factor of signal
filter_size(int) Size (in taps) of the filter
bandwidth(float) Loop bandwidth
