GNU Radio 3.4.0 C++ API
gr_pfb_clock_sync_ccf.h File Reference
#include <gr_block.h>

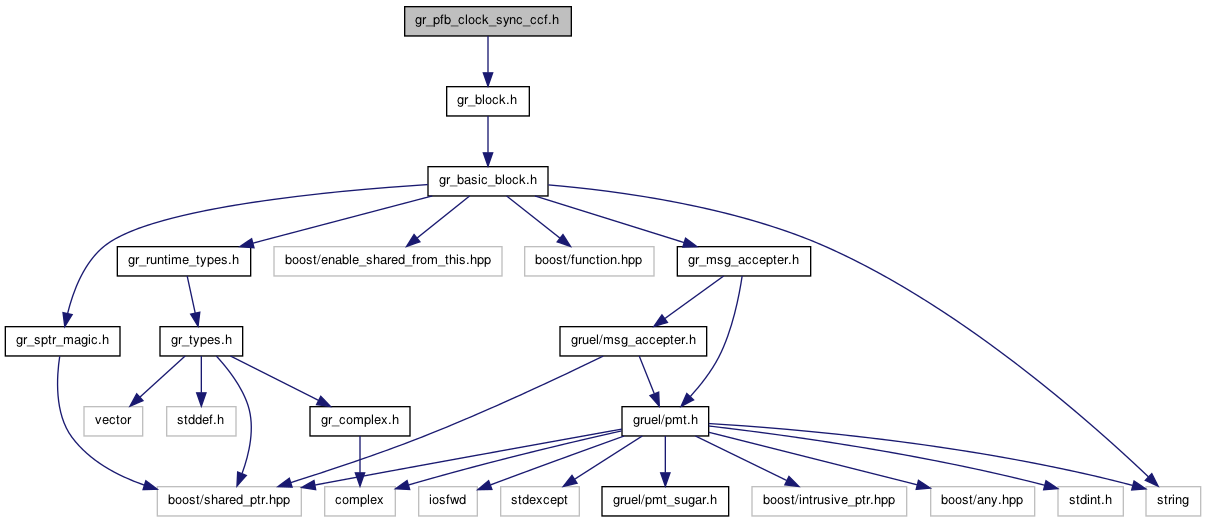

Include dependency graph for gr_pfb_clock_sync_ccf.h:

Go to the source code of this file.

Classes

class  gr_pfb_clock_sync_ccf
 Timing synchronizer using polyphase filterbanks. More...

Functions

gr_pfb_clock_sync_ccf_sptr gr_make_pfb_clock_sync_ccf (double sps, float gain, const std::vector< float > &taps, unsigned int filter_size=32, float init_phase=0, float max_rate_deviation=1.5)

Function Documentation

gr_pfb_clock_sync_ccf_sptr gr_make_pfb_clock_sync_ccf ( double  sps,
float  gain,
const std::vector< float > &  taps,
unsigned int  filter_size = 32,
float  init_phase = 0,
float  max_rate_deviation = 1.5
)

Build the polyphase filterbank timing synchronizer.

Parameters:
sps(double) The number of samples per symbol in the incoming signal
gain(float) The alpha gain of the control loop; beta = (gain^2)/4 by default.
taps(vector<int>) The filter taps.
filter_size(uint) The number of filters in the filterbank (default = 32).
init_phase(float) The initial phase to look at, or which filter to start with (default = 0).
max_rate_deviation(float) Distance from 0 d_rate can get (default = 1.5).
