gr_mpsk_receiver_cc.h File Reference

#include <gruel/attributes.h>
#include <gr_block.h>
#include <gr_complex.h>
#include <fstream>

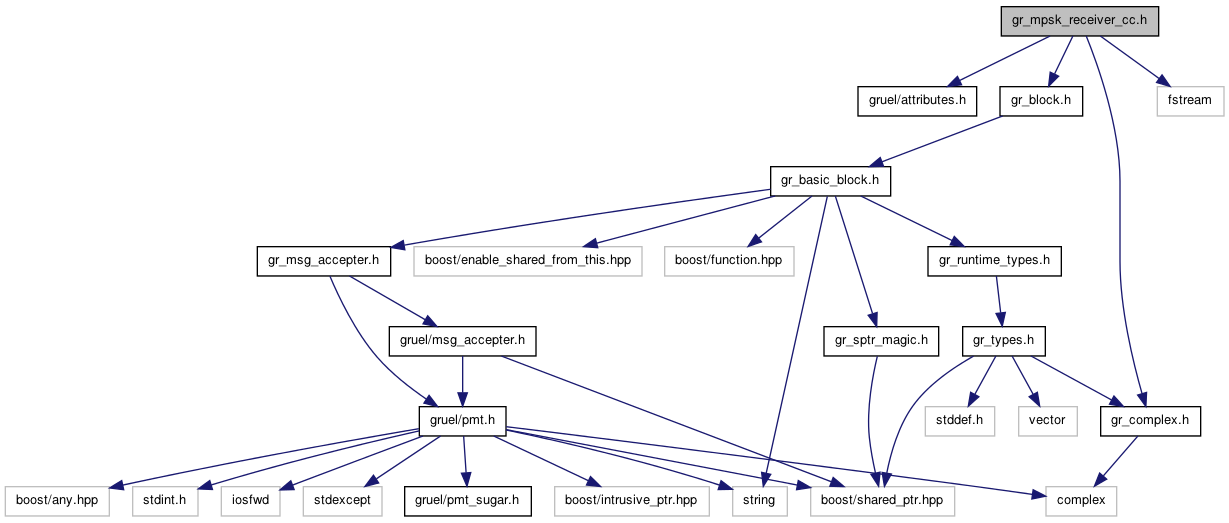

Include dependency graph for gr_mpsk_receiver_cc.h:

Go to the source code of this file.

Classes
class	gr_mpsk_receiver_cc
	This block takes care of receiving M-PSK modulated signals through phase, frequency, and symbol synchronization.This block takes care of receiving M-PSK modulated signals through phase, frequency, and symbol synchronization. It performs carrier frequency and phase locking as well as symbol timing recovery. It works with (D)BPSK, (D)QPSK, and (D)8PSK as tested currently. It should also work for OQPSK and PI/4 DQPSK. More...
Functions
gr_mpsk_receiver_cc_sptr	gr_make_mpsk_receiver_cc (unsigned int M, float theta, float alpha, float beta, float fmin, float fmax, float mu, float gain_mu, float omega, float gain_omega, float omega_rel)

---

Function Documentation

gr_mpsk_receiver_cc_sptr gr_make_mpsk_receiver_cc	(	unsigned int	M,
		float	theta,
		float	alpha,
		float	beta,
		float	fmin,
		float	fmax,
		float	mu,
		float	gain_mu,
		float	omega,
		float	gain_omega,
		float	omega_rel
	)
