#include <gr_block.h>
#include <gr_complex.h>
#include <gr_math.h>

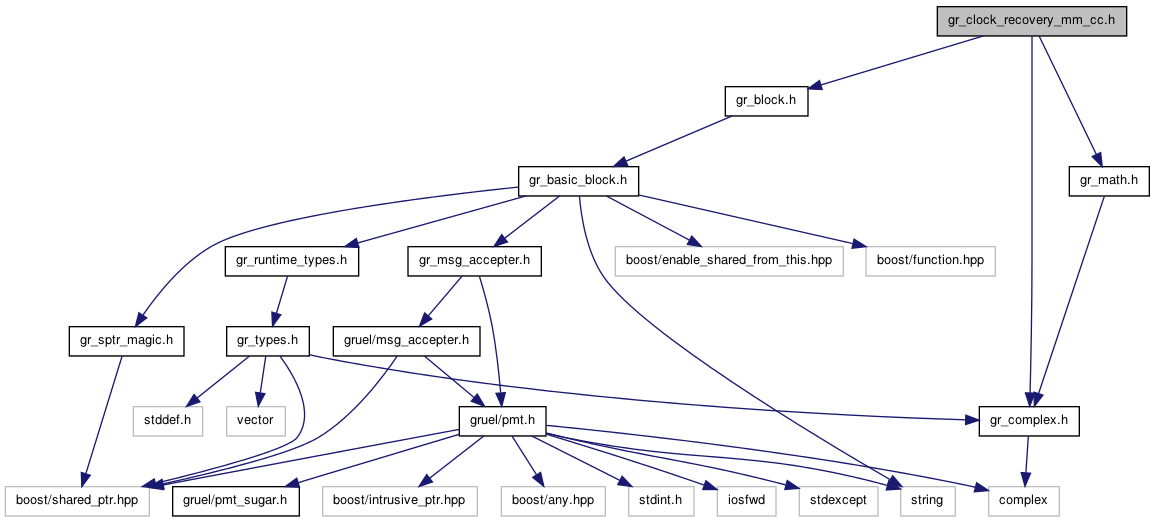

Include dependency graph for gr_clock_recovery_mm_cc.h:

Classes
class	gr_clock_recovery_mm_cc
	Mueller and Müller (M&M) based clock recovery block with complex input, complex output.This implements the Mueller and Müller (M&M) discrete-time error-tracking synchronizer. The complex version here is based on: Modified Mueller and Muller clock recovery circuit Based: G. R. Danesfahani, T.G. Jeans, "Optimisation of modified Mueller and Muller algorithm," Electronics Letters, Vol. 31, no. 13, 22 June 1995, pp. 1032 - 1033. More...
Functions
gr_clock_recovery_mm_cc_sptr	gr_make_clock_recovery_mm_cc (float omega, float gain_omega, float mu, float gain_mu, float omega_relative_limit=0.001)

Function Documentation

gr_clock_recovery_mm_cc_sptr gr_make_clock_recovery_mm_cc	(	float	omega,
		float	gain_omega,
		float	mu,
		float	gain_mu,
		float	omega_relative_limit = `0.001`
	)
