GNU Radio 3.4.0 C++ API
gr_buffer.h File Reference
#include <gr_runtime_types.h>
#include <boost/weak_ptr.hpp>
#include <gruel/thread.h>
#include <gruel/pmt.h>
#include <deque>

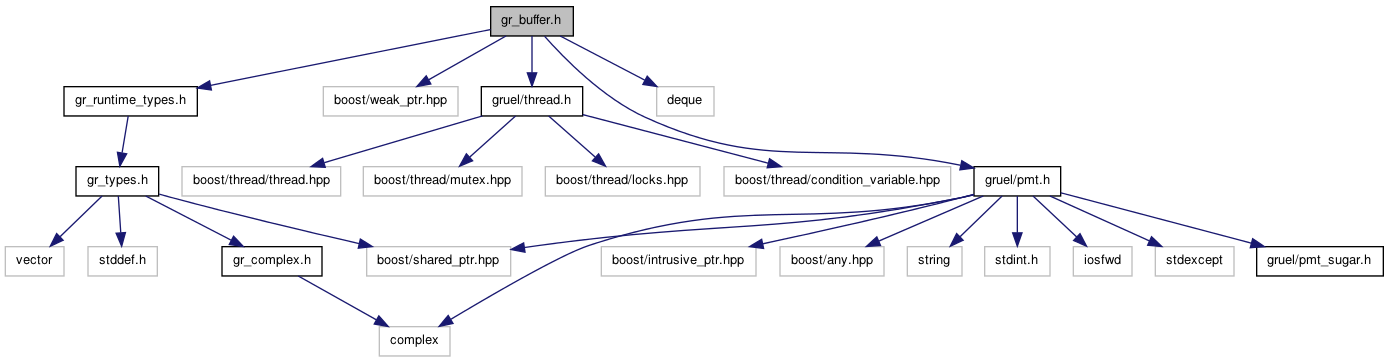

Include dependency graph for gr_buffer.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  gr_buffer
 Single writer, multiple reader fifo. More...
class  gr_buffer_reader
 How we keep track of the readers of a gr_buffer. More...

Functions

gr_buffer_sptr gr_make_buffer (int nitems, size_t sizeof_item, gr_block_sptr link=gr_block_sptr())
 Allocate a buffer that holds at least nitems of size sizeof_item.
gr_buffer_reader_sptr gr_buffer_add_reader (gr_buffer_sptr buf, int nzero_preload, gr_block_sptr link=gr_block_sptr())
 Create a new gr_buffer_reader and attach it to buffer buf.
long gr_buffer_ncurrently_allocated ()
 returns # of gr_buffers currently allocated
long gr_buffer_reader_ncurrently_allocated ()
 returns # of gr_buffer_readers currently allocated

Function Documentation

gr_buffer_reader_sptr gr_buffer_add_reader ( gr_buffer_sptr  buf,
int  nzero_preload,
gr_block_sptr  link = gr_block_sptr()
)

Create a new gr_buffer_reader and attach it to buffer buf.

Parameters:
bufis the buffer the gr_buffer_reader reads from.
nzero_preload-- number of zero items to "preload" into buffer.
linkis the block that reads from the buffer using this gr_buffer_reader.
long gr_buffer_ncurrently_allocated ( )

returns # of gr_buffers currently allocated

long gr_buffer_reader_ncurrently_allocated ( )

returns # of gr_buffer_readers currently allocated

gr_buffer_sptr gr_make_buffer ( int  nitems,
size_t  sizeof_item,
gr_block_sptr  link = gr_block_sptr()
)

Allocate a buffer that holds at least nitems of size sizeof_item.

The total size of the buffer will be rounded up to a system dependent boundary. This is typically the system page size, but under MS windows is 64KB.

Parameters:
nitemsis the minimum number of items the buffer will hold.
sizeof_itemis the size of an item in bytes.
linkis the block that writes to this buffer.
