audio_portaudio_sink Class Reference
#include <audio_portaudio_sink.h>

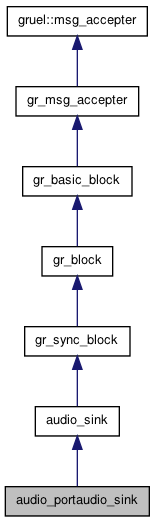

Inheritance diagram for audio_portaudio_sink:
Public Member Functions | |
| audio_portaudio_sink (int sampling_rate, const std::string device_name, bool ok_to_block) | |
| ~audio_portaudio_sink () | |
| bool | check_topology (int ninputs, int noutputs) |
| Confirm that ninputs and noutputs is an acceptable combination. | |
| int | work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items) |
| just like gr_block::general_work, only this arranges to call consume_each for you | |
Friends | |
| PaStreamCallback | portaudio_sink_callback |
Detailed Description
\ Audio sink using PORTAUDIO
Input samples must be in the range [-1,1].
Constructor & Destructor Documentation
| audio_portaudio_sink::audio_portaudio_sink | ( | int | sampling_rate, |
| const std::string | device_name, | ||
| bool | ok_to_block | ||
| ) |
| audio_portaudio_sink::~audio_portaudio_sink | ( | ) |
Member Function Documentation
| bool audio_portaudio_sink::check_topology | ( | int | ninputs, |
| int | noutputs | ||
| ) | [virtual] |
Confirm that ninputs and noutputs is an acceptable combination.
- Parameters:
-
ninputs number of input streams connected noutputs number of output streams connected
- Returns:
- true if this is a valid configuration for this block.
This function is called by the runtime system whenever the topology changes. Most classes do not need to override this. This check is in addition to the constraints specified by the input and output gr_io_signatures.
Reimplemented from gr_basic_block.
| int audio_portaudio_sink::work | ( | int | noutput_items, |
| gr_vector_const_void_star & | input_items, | ||
| gr_vector_void_star & | output_items | ||
| ) | [virtual] |
just like gr_block::general_work, only this arranges to call consume_each for you
The user must override work to define the signal processing code
Implements gr_sync_block.
Friends And Related Function Documentation
friend PaStreamCallback portaudio_sink_callback [friend] |
The documentation for this class was generated from the following file:
