audio_jack_source Class Reference

audio source using JACK More...

#include <audio_jack_source.h>

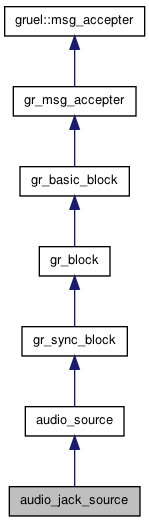

Inheritance diagram for audio_jack_source:

List of all members.

Public Member Functions
	audio_jack_source (int sampling_rate, const std::string device_name, bool ok_to_block)
	~audio_jack_source ()
bool	check_topology (int ninputs, int noutputs)
	Confirm that ninputs and noutputs is an acceptable combination.
int	work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
	just like gr_block::general_work, only this arranges to call consume_each for you
Friends
int	jack_source_process (jack_nframes_t nframes, void *arg)

---

Detailed Description

audio source using JACK

The source has one input stream of floats.

Output samples will be in the range [-1,1].

---

Constructor & Destructor Documentation

audio_jack_source::audio_jack_source	(	int	sampling_rate,
		const std::string	device_name,
		bool	ok_to_block
	)

audio_jack_source::~audio_jack_source

(

)

---

Member Function Documentation

bool audio_jack_source::check_topology	(	int	ninputs,
		int	noutputs
	)		[virtual]

Confirm that ninputs and noutputs is an acceptable combination.

Parameters:

ninputs	number of input streams connected
noutputs	number of output streams connected

Returns:

true if this is a valid configuration for this block.

This function is called by the runtime system whenever the topology changes. Most classes do not need to override this. This check is in addition to the constraints specified by the input and output gr_io_signatures.

Reimplemented from gr_basic_block.

int audio_jack_source::work	(	int	noutput_items,
		gr_vector_const_void_star &	input_items,
		gr_vector_void_star &	output_items
	)		[virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.

---

Friends And Related Function Documentation

int jack_source_process	(	jack_nframes_t	nframes,
		void *	arg
	)		[friend]

---

The documentation for this class was generated from the following file:

• audio_jack_source.h
