gr_pa_2x2_phase_combiner Class Reference
pa_2x2 phase combinerAnntenas are arranged like this: More...
#include <gr_pa_2x2_phase_combiner.h>

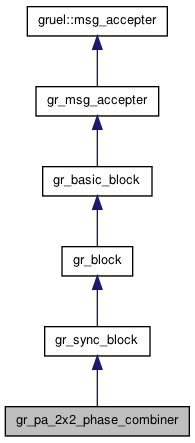

Inheritance diagram for gr_pa_2x2_phase_combiner:
Public Member Functions | |
| float | theta () const |
| void | set_theta (float theta) |
| int | work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items) |
| just like gr_block::general_work, only this arranges to call consume_each for you | |
Friends | |
| gr_pa_2x2_phase_combiner_sptr | gr_make_pa_2x2_phase_combiner () |
Detailed Description
pa_2x2 phase combiner
Anntenas are arranged like this:
2 3 0 1
dx and dy are lambda/2.
Member Function Documentation
| void gr_pa_2x2_phase_combiner::set_theta | ( | float | theta | ) |
| float gr_pa_2x2_phase_combiner::theta | ( | ) | const [inline] |
| int gr_pa_2x2_phase_combiner::work | ( | int | noutput_items, |
| gr_vector_const_void_star & | input_items, | ||
| gr_vector_void_star & | output_items | ||
| ) | [virtual] |
just like gr_block::general_work, only this arranges to call consume_each for you
The user must override work to define the signal processing code
Implements gr_sync_block.
Friends And Related Function Documentation
| gr_pa_2x2_phase_combiner_sptr gr_make_pa_2x2_phase_combiner | ( | ) | [friend] |
The documentation for this class was generated from the following file:
