A rate 1/2, k=7 convolutional encoder for the CCSDS standardThis block performs convolutional encoding using the CCSDS standard polynomial ("Voyager"). More...
#include <gr_encode_ccsds_27_bb.h>
Public Member Functions | |
| ~gr_encode_ccsds_27_bb () | |
| int | work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items) |
| just like gr_block::general_work, only this arranges to call consume_each for you | |
Friends | |
| gr_encode_ccsds_27_bb_sptr | gr_make_encode_ccsds_27_bb () |
Detailed Description
A rate 1/2, k=7 convolutional encoder for the CCSDS standard
This block performs convolutional encoding using the CCSDS standard polynomial ("Voyager").
The input is an MSB first packed stream of bits.
The output is a stream of symbols 0 or 1 representing the encoded data.
As a rate 1/2 code, there will be 16 output symbols for every input byte.
This block is designed for continuous data streaming, not packetized data. There is no provision to "flush" the encoder.
Constructor & Destructor Documentation
| gr_encode_ccsds_27_bb::~gr_encode_ccsds_27_bb | ( | ) |
Member Function Documentation
| int gr_encode_ccsds_27_bb::work | ( | int | noutput_items, |
| gr_vector_const_void_star & | input_items, | ||
| gr_vector_void_star & | output_items | ||
| ) | [virtual] |
just like gr_block::general_work, only this arranges to call consume_each for you
The user must override work to define the signal processing code

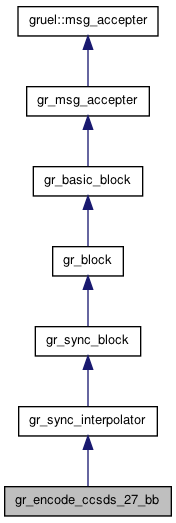

Implements gr_sync_block.
Friends And Related Function Documentation
| gr_encode_ccsds_27_bb_sptr gr_make_encode_ccsds_27_bb | ( | ) | [friend] |
The documentation for this class was generated from the following file:
