fusb_ephandle Class Reference

abstract usb end point handle More...

#include <fusb.h>

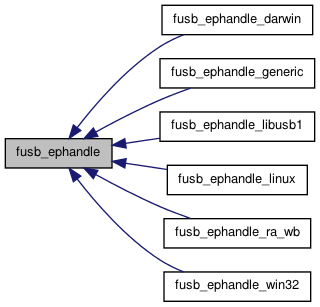

Inheritance diagram for fusb_ephandle:

List of all members.

Public Member Functions
	fusb_ephandle (int endpoint, bool input_p, int block_size=0, int nblocks=0)
virtual	~fusb_ephandle ()
virtual bool	start ()=0
	begin streaming i/o
virtual bool	stop ()=0
	stop streaming i/o
virtual int	write (const void *buffer, int nbytes)=0
virtual int	read (void *buffer, int nbytes)=0
virtual void	wait_for_completion ()=0
int	block_size ()
	returns current block size.
Protected Attributes
int	d_endpoint
bool	d_input_p
int	d_block_size
int	d_nblocks
bool	d_started

---

Detailed Description

abstract usb end point handle

---

Constructor & Destructor Documentation

fusb_ephandle::fusb_ephandle	(	int	endpoint,
		bool	input_p,
		int	block_size = 0,
		int	nblocks = 0
	)

virtual fusb_ephandle::~fusb_ephandle

(

)

[virtual]

---

Member Function Documentation

int fusb_ephandle::block_size

(

)

[inline]

returns current block size.

References d_block_size.

virtual int fusb_ephandle::read	(	void *	buffer,
		int	nbytes
	)		[pure virtual]

Returns:

number of bytes read or -1 if error. number of bytes read will be <= nbytes. Will block if no input available.

Implemented in fusb_ephandle_darwin, fusb_ephandle_generic, fusb_ephandle_libusb1, fusb_ephandle_linux, fusb_ephandle_ra_wb, and fusb_ephandle_win32.

virtual bool fusb_ephandle::start

(

)

[pure virtual]

begin streaming i/o

Implemented in fusb_ephandle_darwin, fusb_ephandle_generic, fusb_ephandle_libusb1, fusb_ephandle_linux, fusb_ephandle_ra_wb, and fusb_ephandle_win32.

virtual bool fusb_ephandle::stop

(

)

[pure virtual]

stop streaming i/o

Implemented in fusb_ephandle_darwin, fusb_ephandle_generic, fusb_ephandle_libusb1, fusb_ephandle_linux, fusb_ephandle_ra_wb, and fusb_ephandle_win32.

virtual void fusb_ephandle::wait_for_completion

(

)

[pure virtual]

Implemented in fusb_ephandle_darwin, fusb_ephandle_generic, fusb_ephandle_libusb1, fusb_ephandle_linux, fusb_ephandle_ra_wb, and fusb_ephandle_win32.

virtual int fusb_ephandle::write	(	const void *	buffer,
		int	nbytes
	)		[pure virtual]

Returns:

nbytes if write was successfully enqueued, else -1. Will block if no free buffers available.

Implemented in fusb_ephandle_darwin, fusb_ephandle_generic, fusb_ephandle_libusb1, fusb_ephandle_linux, fusb_ephandle_ra_wb, and fusb_ephandle_win32.

---

Member Data Documentation

int fusb_ephandle::d_block_size [protected]

Referenced by block_size().

int fusb_ephandle::d_endpoint [protected]

bool fusb_ephandle::d_input_p [protected]

int fusb_ephandle::d_nblocks [protected]

bool fusb_ephandle::d_started [protected]

---

The documentation for this class was generated from the following file:

• fusb.h
