GNU Radio 3.7.3 C++ API
gr::blocks::tag_debug Class Referenceabstract

Bit bucket that prints out any tag received. More...

#include <gnuradio/blocks/tag_debug.h>

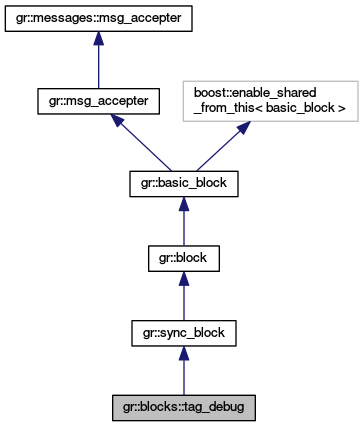

Inheritance diagram for gr::blocks::tag_debug:

Public Types

typedef boost::shared_ptr
< tag_debug
sptr

- Public Types inherited from gr::block
enum  { WORK_CALLED_PRODUCE = -2, WORK_DONE = -1 }
 Magic return values from general_work. More...

enum  tag_propagation_policy_t { TPP_DONT = 0, TPP_ALL_TO_ALL = 1, TPP_ONE_TO_ONE = 2 }


Public Member Functions

virtual std::vector< tag_tcurrent_tags ()=0
 Returns a vector of tag_t items as of the last call to work. More...

virtual int num_tags ()=0
 Return the total number of tags in the tag queue. More...

virtual void set_display (bool d)=0
 Set the display of tags to stdout on/off. More...

virtual void set_key_filter (const std::string &key_filter)=0
 Set a new key to filter with. More...

virtual std::string key_filter () const =0
 Get the current filter key. More...

- Public Member Functions inherited from gr::sync_block
virtual int work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)=0
 just like gr::block::general_work, only this arranges to call consume_each for you More...

void forecast (int noutput_items, gr_vector_int &ninput_items_required)
 Estimate input requirements given output request. More...

int general_work (int noutput_items, gr_vector_int &ninput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
 compute output items from input items More...

int fixed_rate_ninput_to_noutput (int ninput)
 Given ninput samples, return number of output samples that will be produced. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this. More...

int fixed_rate_noutput_to_ninput (int noutput)
 Given noutput samples, return number of input samples required to produce noutput. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this. More...

- Public Member Functions inherited from gr::block
virtual ~block ()

unsigned history () const

void set_history (unsigned history)

void declare_sample_delay (int which, unsigned delay)

void declare_sample_delay (unsigned delay)

unsigned sample_delay (int which) const

bool fixed_rate () const
 Return true if this block has a fixed input to output rate. More...

virtual bool start ()
 Called to enable drivers, etc for i/o devices. More...

virtual bool stop ()
 Called to disable drivers, etc for i/o devices. More...

void set_output_multiple (int multiple)
 Constrain the noutput_items argument passed to forecast and general_work. More...

int output_multiple () const

bool output_multiple_set () const

void set_alignment (int multiple)
 Constrains buffers to work on a set item alignment (for SIMD) More...

int alignment () const

void set_unaligned (int na)

int unaligned () const

void set_is_unaligned (bool u)

bool is_unaligned () const

void consume (int which_input, int how_many_items)
 Tell the scheduler how_many_items of input stream which_input were consumed. More...

void consume_each (int how_many_items)
 Tell the scheduler how_many_items were consumed on each input stream. More...

void produce (int which_output, int how_many_items)
 Tell the scheduler how_many_items were produced on output stream which_output. More...

void set_relative_rate (double relative_rate)
 Set the approximate output rate / input rate. More...

double relative_rate () const
 return the approximate output rate / input rate More...

uint64_t nitems_read (unsigned int which_input)
 Return the number of items read on input stream which_input. More...

uint64_t nitems_written (unsigned int which_output)
 Return the number of items written on output stream which_output. More...

tag_propagation_policy_t tag_propagation_policy ()
 Asks for the policy used by the scheduler to moved tags downstream. More...

void set_tag_propagation_policy (tag_propagation_policy_t p)
 Set the policy by the scheduler to determine how tags are moved downstream. More...

int min_noutput_items () const
 Return the minimum number of output items this block can produce during a call to work. More...

void set_min_noutput_items (int m)
 Set the minimum number of output items this block can produce during a call to work. More...

int max_noutput_items ()
 Return the maximum number of output items this block will handle during a call to work. More...

void set_max_noutput_items (int m)
 Set the maximum number of output items this block will handle during a call to work. More...

void unset_max_noutput_items ()
 Clear the switch for using the max_noutput_items value of this block. More...

bool is_set_max_noutput_items ()
 Ask the block if the flag is or is not set to use the internal value of max_noutput_items during a call to work. More...

void expand_minmax_buffer (int port)

long max_output_buffer (size_t i)
 Returns max buffer size on output port i. More...

void set_max_output_buffer (long max_output_buffer)
 Sets max buffer size on all output ports. More...

void set_max_output_buffer (int port, long max_output_buffer)
 Sets max buffer size on output port port. More...

long min_output_buffer (size_t i)
 Returns min buffer size on output port i. More...

void set_min_output_buffer (long min_output_buffer)
 Sets min buffer size on all output ports. More...

void set_min_output_buffer (int port, long min_output_buffer)
 Sets min buffer size on output port port. More...

float pc_noutput_items ()
 Gets instantaneous noutput_items performance counter. More...

float pc_noutput_items_avg ()
 Gets average noutput_items performance counter. More...

float pc_noutput_items_var ()
 Gets variance of noutput_items performance counter. More...

float pc_nproduced ()
 Gets instantaneous num items produced performance counter. More...

float pc_nproduced_avg ()
 Gets average num items produced performance counter. More...

float pc_nproduced_var ()
 Gets variance of num items produced performance counter. More...

float pc_input_buffers_full (int which)
 Gets instantaneous fullness of which input buffer. More...

float pc_input_buffers_full_avg (int which)
 Gets average fullness of which input buffer. More...

float pc_input_buffers_full_var (int which)
 Gets variance of fullness of which input buffer. More...

std::vector< float > pc_input_buffers_full ()
 Gets instantaneous fullness of all input buffers. More...

std::vector< float > pc_input_buffers_full_avg ()
 Gets average fullness of all input buffers. More...

std::vector< float > pc_input_buffers_full_var ()
 Gets variance of fullness of all input buffers. More...

float pc_output_buffers_full (int which)
 Gets instantaneous fullness of which input buffer. More...

float pc_output_buffers_full_avg (int which)
 Gets average fullness of which input buffer. More...

float pc_output_buffers_full_var (int which)
 Gets variance of fullness of which input buffer. More...

std::vector< float > pc_output_buffers_full ()
 Gets instantaneous fullness of all output buffers. More...

std::vector< float > pc_output_buffers_full_avg ()
 Gets average fullness of all output buffers. More...

std::vector< float > pc_output_buffers_full_var ()
 Gets variance of fullness of all output buffers. More...

float pc_work_time ()
 Gets instantaneous clock cycles spent in work. More...

float pc_work_time_avg ()
 Gets average clock cycles spent in work. More...

float pc_work_time_var ()
 Gets average clock cycles spent in work. More...

float pc_work_time_total ()
 Gets total clock cycles spent in work. More...

void reset_perf_counters ()
 Resets the performance counters. More...

void setup_pc_rpc ()
 Sets up export of perf. counters to ControlPort. Only called by the scheduler. More...

bool is_pc_rpc_set ()
 Checks if this block is already exporting perf. counters to ControlPort. More...

void no_pc_rpc ()
 If the block calls this in its constructor, it's perf. counters will not be exported. More...

void set_processor_affinity (const std::vector< int > &mask)
 Set the thread's affinity to processor core n. More...

void unset_processor_affinity ()
 Remove processor affinity to a specific core. More...

std::vector< int > processor_affinity ()
 Get the current processor affinity. More...

int active_thread_priority ()
 Get the current thread priority in use. More...

int thread_priority ()
 Get the current thread priority stored. More...

int set_thread_priority (int priority)
 Set the current thread priority. More...

bool update_rate () const

block_detail_sptr detail () const

void set_detail (block_detail_sptr detail)

- Public Member Functions inherited from gr::basic_block
pmt::pmt_t message_subscribers (pmt::pmt_t port)

virtual ~basic_block ()

long unique_id () const

long symbolic_id () const

std::string name () const

std::string symbol_name () const

gr::io_signature::sptr input_signature () const

gr::io_signature::sptr output_signature () const

basic_block_sptr to_basic_block ()

bool alias_set ()

std::string alias ()

pmt::pmt_t alias_pmt ()

void set_block_alias (std::string name)

void message_port_register_in (pmt::pmt_t port_id)

void message_port_register_out (pmt::pmt_t port_id)

void message_port_pub (pmt::pmt_t port_id, pmt::pmt_t msg)

void message_port_sub (pmt::pmt_t port_id, pmt::pmt_t target)

void message_port_unsub (pmt::pmt_t port_id, pmt::pmt_t target)

virtual bool message_port_is_hier (pmt::pmt_t port_id)

virtual bool message_port_is_hier_in (pmt::pmt_t port_id)

virtual bool message_port_is_hier_out (pmt::pmt_t port_id)

pmt::pmt_t message_ports_in ()
 Get input message port names. More...

pmt::pmt_t message_ports_out ()
 Get output message port names. More...

void _post (pmt::pmt_t which_port, pmt::pmt_t msg)

bool empty_p (pmt::pmt_t which_port)
 is the queue empty? More...

bool empty_p ()

bool empty_handled_p (pmt::pmt_t which_port)
 are all msg ports with handlers empty? More...

bool empty_handled_p ()

size_t nmsgs (pmt::pmt_t which_port)
 How many messages in the queue? More...

void insert_tail (pmt::pmt_t which_port, pmt::pmt_t msg)

pmt::pmt_t delete_head_nowait (pmt::pmt_t which_port)

pmt::pmt_t delete_head_blocking (pmt::pmt_t which_port)

msg_queue_t::iterator get_iterator (pmt::pmt_t which_port)

void erase_msg (pmt::pmt_t which_port, msg_queue_t::iterator it)

virtual bool has_msg_port (pmt::pmt_t which_port)

virtual void setup_rpc ()
 Set up the RPC registered variables. More...

bool is_rpc_set ()
 Ask if this block has been registered to the RPC. More...

void rpc_set ()
 When the block is registered with the RPC, set this. More...

virtual bool check_topology (int ninputs, int noutputs)
 Confirm that ninputs and noutputs is an acceptable combination. More...

template<typename T >
void set_msg_handler (pmt::pmt_t which_port, T msg_handler)
 Set the callback that is fired when messages are available. More...

- Public Member Functions inherited from gr::msg_accepter
 msg_accepter ()

 ~msg_accepter ()

void post (pmt::pmt_t which_port, pmt::pmt_t msg)
 send msg to msg_accepter on port which_port More...

- Public Member Functions inherited from gr::messages::msg_accepter
 msg_accepter ()


Static Public Member Functions

static sptr make (size_t sizeof_stream_item, const std::string &name, const std::string &key_filter="")


Additional Inherited Members

- Protected Types inherited from gr::basic_block
enum  vcolor { WHITE, GREY, BLACK }

- Protected Member Functions inherited from gr::sync_block
 sync_block (void)

 sync_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)

- Protected Member Functions inherited from gr::block
 block (void)

 block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)

void set_fixed_rate (bool fixed_rate)

void add_item_tag (unsigned int which_output, uint64_t abs_offset, const pmt::pmt_t &key, const pmt::pmt_t &value, const pmt::pmt_t &srcid=pmt::PMT_F)
 Adds a new tag onto the given output buffer. More...

void add_item_tag (unsigned int which_output, const tag_t &tag)
 Adds a new tag onto the given output buffer. More...

void remove_item_tag (unsigned int which_input, uint64_t abs_offset, const pmt::pmt_t &key, const pmt::pmt_t &value, const pmt::pmt_t &srcid=pmt::PMT_F)
 Removes a tag from the given input buffer. More...

void remove_item_tag (unsigned int which_input, const tag_t &tag)
 Removes a tag from the given input buffer. More...

void get_tags_in_range (std::vector< tag_t > &v, unsigned int which_input, uint64_t abs_start, uint64_t abs_end)
 Given a [start,end), returns a vector of all tags in the range. More...

void get_tags_in_range (std::vector< tag_t > &v, unsigned int which_input, uint64_t abs_start, uint64_t abs_end, const pmt::pmt_t &key)
 Given a [start,end), returns a vector of all tags in the range with a given key. More...

void get_tags_in_window (std::vector< tag_t > &v, unsigned int which_input, uint64_t rel_start, uint64_t rel_end)
 Gets all tags within the relative window of the current call to work. More...

void get_tags_in_window (std::vector< tag_t > &v, unsigned int which_input, uint64_t rel_start, uint64_t rel_end, const pmt::pmt_t &key)
 Operates like gr::block::get_tags_in_window with the ability to only return tags with the specified key. More...

void enable_update_rate (bool en)

- Protected Member Functions inherited from gr::basic_block
 basic_block (void)

 basic_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)
 Protected constructor prevents instantiation by non-derived classes. More...

void set_input_signature (gr::io_signature::sptr iosig)
 may only be called during constructor More...

void set_output_signature (gr::io_signature::sptr iosig)
 may only be called during constructor More...

void set_color (vcolor color)
 Allow the flowgraph to set for sorting and partitioning. More...

vcolor color () const

virtual bool has_msg_handler (pmt::pmt_t which_port)
 Tests if there is a handler attached to port which_port. More...

virtual void dispatch_msg (pmt::pmt_t which_port, pmt::pmt_t msg)

- Protected Attributes inherited from gr::block
std::vector< long > d_max_output_buffer

std::vector< long > d_min_output_buffer

gr::thread::mutex d_setlock

gr::logger_ptr d_logger

gr::logger_ptr d_debug_logger

- Protected Attributes inherited from gr::basic_block
std::string d_name

gr::io_signature::sptr d_input_signature

gr::io_signature::sptr d_output_signature

long d_unique_id

long d_symbolic_id

std::string d_symbol_name

std::string d_symbol_alias

vcolor d_color

bool d_rpc_set

msg_queue_map_t msg_queue

std::vector< boost::any > d_rpc_vars

pmt::pmt_t d_message_subscribers


Detailed Description

Bit bucket that prints out any tag received.

This block collects all tags sent to it on all input ports and displays them to stdout in a formatted way. The name parameter is used to identify which debug sink generated the tag, so when connecting a block to this debug sink, an appropriate name is something that identifies the input block.

This block otherwise acts as a NULL sink in that items from the input stream are ignored. It is designed to be able to attach to any block and watch all tags streaming out of that block for debugging purposes.

Specifying a key will allow this block to filter out all other tags and only display tags that match the given key. This can help clean up the output and allow you to focus in on a particular tag of interest.

The tags from the last call to this work function are stored and can be retrieved using the function 'current_tags'.

Member Typedef Documentation

Member Function Documentation

virtual std::vector<tag_t> gr::blocks::tag_debug::current_tags ( )
pure virtual

Returns a vector of tag_t items as of the last call to work.

virtual std::string gr::blocks::tag_debug::key_filter ( ) const
pure virtual

Get the current filter key.

static sptr gr::blocks::tag_debug::make ( size_t  sizeof_stream_item,
const std::string &  name,
const std::string &  key_filter = ""
)
static

Build a tag debug block

Parameters
sizeof_stream_itemsize of the items in the incoming stream.
namename to identify which debug sink generated the info.
key_filterSpecify a tag's key value to use as a filter.
virtual int gr::blocks::tag_debug::num_tags ( )
pure virtual

Return the total number of tags in the tag queue.

virtual void gr::blocks::tag_debug::set_display ( bool  d)
pure virtual

Set the display of tags to stdout on/off.

virtual void gr::blocks::tag_debug::set_key_filter ( const std::string &  key_filter)
pure virtual

Set a new key to filter with.


The documentation for this class was generated from the following file:
