gr::analog::cpfsk_bc Class Reference

Perform continuous phase 2-level frequency shift keying modulation on an input stream of unpacked bits. More...

#include <cpfsk_bc.h>

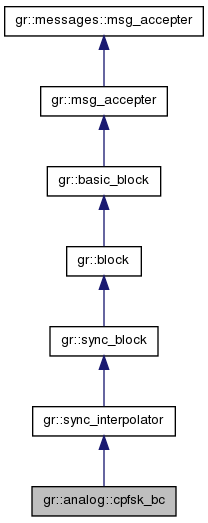

Inheritance diagram for gr::analog::cpfsk_bc:

List of all members.

Public Types
typedef boost::shared_ptr < cpfsk_bc >	sptr
Public Member Functions
virtual void	set_amplitude (float amplitude)=0
virtual float	amplitude ()=0
virtual float	freq ()=0
virtual float	phase ()=0
Static Public Member Functions
static sptr	make (float k, float ampl, int samples_per_sym)
	Make a CPFSK block.

---

Detailed Description

Perform continuous phase 2-level frequency shift keying modulation on an input stream of unpacked bits.

---

Member Typedef Documentation

typedef boost::shared_ptr<cpfsk_bc> gr::analog::cpfsk_bc::sptr

---

Member Function Documentation

virtual float gr::analog::cpfsk_bc::amplitude

(

)

[pure virtual]

virtual float gr::analog::cpfsk_bc::freq

(

)

[pure virtual]

static sptr gr::analog::cpfsk_bc::make	(	float	k,
		float	ampl,
		int	samples_per_sym
	)		[static]

Make a CPFSK block.

Parameters:

k	modulation index
ampl	output amplitude
samples_per_sym	number of output samples per input bit

virtual float gr::analog::cpfsk_bc::phase

(

)

[pure virtual]

virtual void gr::analog::cpfsk_bc::set_amplitude

(

float

amplitude

)

[pure virtual]

---

The documentation for this class was generated from the following file:

• cpfsk_bc.h
