DisplayPlot Class Reference

QWidget base plot to build QTGUI plotting tools. More...

#include <DisplayPlot.h>

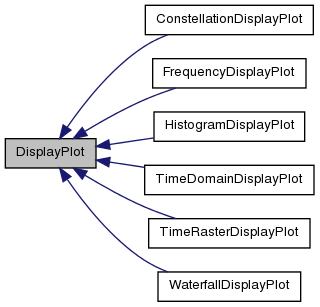

Inheritance diagram for DisplayPlot:

List of all members.

Public Types
typedef QwtSymbol::Style	QwtSymbolStyle
Public Slots
virtual void	setYaxis (double min, double max)
virtual void	setXaxis (double min, double max)
virtual void	setLineLabel (int which, QString label)
virtual QString	getLineLabel (int which)
virtual void	setLineColor (int which, QColor color)
virtual QColor	getLineColor (int which) const
virtual void	setLineWidth (int which, int width)
virtual int	getLineWidth (int which) const
virtual void	setLineStyle (int which, Qt::PenStyle style)
virtual const Qt::PenStyle	getLineStyle (int which) const
virtual void	setLineMarker (int which, QwtSymbol::Style marker)
virtual const QwtSymbol::Style	getLineMarker (int which) const
virtual void	setMarkerAlpha (int which, int alpha)
virtual int	getMarkerAlpha (int which) const
void	setLineColor1 (QColor)
void	setLineColor2 (QColor)
void	setLineColor3 (QColor)
void	setLineColor4 (QColor)
void	setLineColor5 (QColor)
void	setLineColor6 (QColor)
void	setLineColor7 (QColor)
void	setLineColor8 (QColor)
void	setLineColor9 (QColor)
void	setLineWidth1 (int)
void	setLineWidth2 (int)
void	setLineWidth3 (int)
void	setLineWidth4 (int)
void	setLineWidth5 (int)
void	setLineWidth6 (int)
void	setLineWidth7 (int)
void	setLineWidth8 (int)
void	setLineWidth9 (int)
void	setLineStyle1 (Qt::PenStyle)
void	setLineStyle2 (Qt::PenStyle)
void	setLineStyle3 (Qt::PenStyle)
void	setLineStyle4 (Qt::PenStyle)
void	setLineStyle5 (Qt::PenStyle)
void	setLineStyle6 (Qt::PenStyle)
void	setLineStyle7 (Qt::PenStyle)
void	setLineStyle8 (Qt::PenStyle)
void	setLineStyle9 (Qt::PenStyle)
void	setLineMarker1 (QwtSymbol::Style)
void	setLineMarker2 (QwtSymbol::Style)
void	setLineMarker3 (QwtSymbol::Style)
void	setLineMarker4 (QwtSymbol::Style)
void	setLineMarker5 (QwtSymbol::Style)
void	setLineMarker6 (QwtSymbol::Style)
void	setLineMarker7 (QwtSymbol::Style)
void	setLineMarker8 (QwtSymbol::Style)
void	setLineMarker9 (QwtSymbol::Style)
void	setMarkerAlpha1 (int)
void	setMarkerAlpha2 (int)
void	setMarkerAlpha3 (int)
void	setMarkerAlpha4 (int)
void	setMarkerAlpha5 (int)
void	setMarkerAlpha6 (int)
void	setMarkerAlpha7 (int)
void	setMarkerAlpha8 (int)
void	setMarkerAlpha9 (int)
void	setZoomerColor (QColor c)
void	setPaletteColor (QColor c)
void	setAxisLabelFontSize (int axisId, int fs)
void	setYaxisLabelFontSize (int fs)
void	setXaxisLabelFontSize (int fs)
void	setAxesLabelFontSize (int fs)
void	setStop (bool on)
void	resizeSlot (QSize *s)
void	onPickerPointSelected (const QwtDoublePoint &p)
void	onPickerPointSelected6 (const QPointF &p)
Signals
void	plotPointSelected (const QPointF p)
Public Member Functions
	DisplayPlot (int nplots, QWidget *)
virtual	~DisplayPlot ()
virtual void	replot ()=0
const QColor	getLineColor1 () const
const QColor	getLineColor2 () const
const QColor	getLineColor3 () const
const QColor	getLineColor4 () const
const QColor	getLineColor5 () const
const QColor	getLineColor6 () const
const QColor	getLineColor7 () const
const QColor	getLineColor8 () const
const QColor	getLineColor9 () const
int	getLineWidth1 () const
int	getLineWidth2 () const
int	getLineWidth3 () const
int	getLineWidth4 () const
int	getLineWidth5 () const
int	getLineWidth6 () const
int	getLineWidth7 () const
int	getLineWidth8 () const
int	getLineWidth9 () const
const Qt::PenStyle	getLineStyle1 () const
const Qt::PenStyle	getLineStyle2 () const
const Qt::PenStyle	getLineStyle3 () const
const Qt::PenStyle	getLineStyle4 () const
const Qt::PenStyle	getLineStyle5 () const
const Qt::PenStyle	getLineStyle6 () const
const Qt::PenStyle	getLineStyle7 () const
const Qt::PenStyle	getLineStyle8 () const
const Qt::PenStyle	getLineStyle9 () const
const QwtSymbol::Style	getLineMarker1 () const
const QwtSymbol::Style	getLineMarker2 () const
const QwtSymbol::Style	getLineMarker3 () const
const QwtSymbol::Style	getLineMarker4 () const
const QwtSymbol::Style	getLineMarker5 () const
const QwtSymbol::Style	getLineMarker6 () const
const QwtSymbol::Style	getLineMarker7 () const
const QwtSymbol::Style	getLineMarker8 () const
const QwtSymbol::Style	getLineMarker9 () const
int	getMarkerAlpha1 () const
int	getMarkerAlpha2 () const
int	getMarkerAlpha3 () const
int	getMarkerAlpha4 () const
int	getMarkerAlpha5 () const
int	getMarkerAlpha6 () const
int	getMarkerAlpha7 () const
int	getMarkerAlpha8 () const
int	getMarkerAlpha9 () const
QColor	getZoomerColor () const
QColor	getPaletteColor () const
int	getAxisLabelFontSize (int axisId) const
int	getYaxisLabelFontSize () const
int	getXaxisLabelFontSize () const
int	getAxesLabelFontSize () const
Protected Slots
void	legendEntryChecked (QwtPlotItem *plotItem, bool on)
Protected Attributes
int	_nplots
std::vector< QwtPlotCurve * >	_plot_curve
QwtPlotPanner *	_panner
QwtPlotZoomer *	_zoomer
QwtDblClickPlotPicker *	_picker
QwtPlotMagnifier *	_magnifier
int64_t	_numPoints
bool	_stop
QList< QColor >	_trace_colors
bool	_autoscale_state
Properties
QColor	line_color1
QColor	line_color2
QColor	line_color3
QColor	line_color4
QColor	line_color5
QColor	line_color6
QColor	line_color7
QColor	line_color8
QColor	line_color9
int	line_width1
int	line_width2
int	line_width3
int	line_width4
int	line_width5
int	line_width6
int	line_width7
int	line_width8
int	line_width9
Qt::PenStyle	line_style1
Qt::PenStyle	line_style2
Qt::PenStyle	line_style3
Qt::PenStyle	line_style4
Qt::PenStyle	line_style5
Qt::PenStyle	line_style6
Qt::PenStyle	line_style7
Qt::PenStyle	line_style8
Qt::PenStyle	line_style9
QwtSymbolStyle	line_marker1
QwtSymbolStyle	line_marker2
QwtSymbolStyle	line_marker3
QwtSymbolStyle	line_marker4
QwtSymbolStyle	line_marker5
QwtSymbolStyle	line_marker6
QwtSymbolStyle	line_marker7
QwtSymbolStyle	line_marker8
QwtSymbolStyle	line_marker9
int	marker_alpha1
int	marker_alpha2
int	marker_alpha3
int	marker_alpha4
int	marker_alpha5
int	marker_alpha6
int	marker_alpha7
int	marker_alpha8
int	marker_alpha9
QColor	zoomer_color
QColor	palette_color
int	yaxis_label_font_size
int	xaxis_label_font_size
int	axes_label_font_size

---

Detailed Description

QWidget base plot to build QTGUI plotting tools.

---

Member Typedef Documentation

typedef QwtSymbol::Style DisplayPlot::QwtSymbolStyle

---

Constructor & Destructor Documentation

DisplayPlot::DisplayPlot	(	int	nplots,
		QWidget *
	)

virtual DisplayPlot::~DisplayPlot

(

)

[virtual]

---

Member Function Documentation

int DisplayPlot::getAxesLabelFontSize

(

)

const

int DisplayPlot::getAxisLabelFontSize

(

int

axisId

)

const

virtual QColor DisplayPlot::getLineColor

(

int

which

)

const [virtual, slot]

const QColor DisplayPlot::getLineColor1

(

)

const

const QColor DisplayPlot::getLineColor2

(

)

const

const QColor DisplayPlot::getLineColor3

(

)

const

const QColor DisplayPlot::getLineColor4

(

)

const

const QColor DisplayPlot::getLineColor5

(

)

const

const QColor DisplayPlot::getLineColor6

(

)

const

const QColor DisplayPlot::getLineColor7

(

)

const

const QColor DisplayPlot::getLineColor8

(

)

const

const QColor DisplayPlot::getLineColor9

(

)

const

virtual QString DisplayPlot::getLineLabel

(

int

which

)

[virtual, slot]

virtual const QwtSymbol::Style DisplayPlot::getLineMarker

(

int

which

)

const [virtual, slot]

const QwtSymbol::Style DisplayPlot::getLineMarker1

(

)

const

const QwtSymbol::Style DisplayPlot::getLineMarker2

(

)

const

const QwtSymbol::Style DisplayPlot::getLineMarker3

(

)

const

const QwtSymbol::Style DisplayPlot::getLineMarker4

(

)

const

const QwtSymbol::Style DisplayPlot::getLineMarker5

(

)

const

const QwtSymbol::Style DisplayPlot::getLineMarker6

(

)

const

const QwtSymbol::Style DisplayPlot::getLineMarker7

(

)

const

const QwtSymbol::Style DisplayPlot::getLineMarker8

(

)

const

const QwtSymbol::Style DisplayPlot::getLineMarker9

(

)

const

virtual const Qt::PenStyle DisplayPlot::getLineStyle

(

int

which

)

const [virtual, slot]

const Qt::PenStyle DisplayPlot::getLineStyle1

(

)

const

const Qt::PenStyle DisplayPlot::getLineStyle2

(

)

const

const Qt::PenStyle DisplayPlot::getLineStyle3

(

)

const

const Qt::PenStyle DisplayPlot::getLineStyle4

(

)

const

const Qt::PenStyle DisplayPlot::getLineStyle5

(

)

const

const Qt::PenStyle DisplayPlot::getLineStyle6

(

)

const

const Qt::PenStyle DisplayPlot::getLineStyle7

(

)

const

const Qt::PenStyle DisplayPlot::getLineStyle8

(

)

const

const Qt::PenStyle DisplayPlot::getLineStyle9

(

)

const

virtual int DisplayPlot::getLineWidth

(

int

which

)

const [virtual, slot]

int DisplayPlot::getLineWidth1

(

)

const

int DisplayPlot::getLineWidth2

(

)

const

int DisplayPlot::getLineWidth3

(

)

const

int DisplayPlot::getLineWidth4

(

)

const

int DisplayPlot::getLineWidth5

(

)

const

int DisplayPlot::getLineWidth6

(

)

const

int DisplayPlot::getLineWidth7

(

)

const

int DisplayPlot::getLineWidth8

(

)

const

int DisplayPlot::getLineWidth9

(

)

const

virtual int DisplayPlot::getMarkerAlpha

(

int

which

)

const [virtual, slot]

Reimplemented in HistogramDisplayPlot.

int DisplayPlot::getMarkerAlpha1

(

)

const

int DisplayPlot::getMarkerAlpha2

(

)

const

int DisplayPlot::getMarkerAlpha3

(

)

const

int DisplayPlot::getMarkerAlpha4

(

)

const

int DisplayPlot::getMarkerAlpha5

(

)

const

int DisplayPlot::getMarkerAlpha6

(

)

const

int DisplayPlot::getMarkerAlpha7

(

)

const

int DisplayPlot::getMarkerAlpha8

(

)

const

int DisplayPlot::getMarkerAlpha9

(

)

const

QColor DisplayPlot::getPaletteColor

(

)

const

int DisplayPlot::getXaxisLabelFontSize

(

)

const

int DisplayPlot::getYaxisLabelFontSize

(

)

const

QColor DisplayPlot::getZoomerColor

(

)

const

void DisplayPlot::legendEntryChecked	(	QwtPlotItem *	plotItem,
		bool	on
	)		[protected, slot]

void DisplayPlot::onPickerPointSelected

(

const QwtDoublePoint &

p

)

[slot]

Reimplemented in FrequencyDisplayPlot.

void DisplayPlot::onPickerPointSelected6

(

const QPointF &

p

)

[slot]

Reimplemented in FrequencyDisplayPlot.

void DisplayPlot::plotPointSelected

(

const QPointF

p

)

[signal]

virtual void DisplayPlot::replot

(

)

[pure virtual]

Implemented in WaterfallDisplayPlot, TimeRasterDisplayPlot, FrequencyDisplayPlot, ConstellationDisplayPlot, HistogramDisplayPlot, and TimeDomainDisplayPlot.

void DisplayPlot::resizeSlot

(

QSize *

s

)

[slot]

void DisplayPlot::setAxesLabelFontSize

(

int

fs

)

[slot]

void DisplayPlot::setAxisLabelFontSize	(	int	axisId,
		int	fs
	)		[slot]

virtual void DisplayPlot::setLineColor	(	int	which,
		QColor	color
	)		[virtual, slot]

Reimplemented in HistogramDisplayPlot.

void DisplayPlot::setLineColor1

(

QColor

)

[slot]

void DisplayPlot::setLineColor2

(

QColor

)

[slot]

void DisplayPlot::setLineColor3

(

QColor

)

[slot]

void DisplayPlot::setLineColor4

(

QColor

)

[slot]

void DisplayPlot::setLineColor5

(

QColor

)

[slot]

void DisplayPlot::setLineColor6

(

QColor

)

[slot]

void DisplayPlot::setLineColor7

(

QColor

)

[slot]

void DisplayPlot::setLineColor8

(

QColor

)

[slot]

void DisplayPlot::setLineColor9

(

QColor

)

[slot]

virtual void DisplayPlot::setLineLabel	(	int	which,
		QString	label
	)		[virtual, slot]

virtual void DisplayPlot::setLineMarker	(	int	which,
		QwtSymbol::Style	marker
	)		[virtual, slot]

void DisplayPlot::setLineMarker1

(

QwtSymbol::Style

)

[slot]

void DisplayPlot::setLineMarker2

(

QwtSymbol::Style

)

[slot]

void DisplayPlot::setLineMarker3

(

QwtSymbol::Style

)

[slot]

void DisplayPlot::setLineMarker4

(

QwtSymbol::Style

)

[slot]

void DisplayPlot::setLineMarker5

(

QwtSymbol::Style

)

[slot]

void DisplayPlot::setLineMarker6

(

QwtSymbol::Style

)

[slot]

void DisplayPlot::setLineMarker7

(

QwtSymbol::Style

)

[slot]

void DisplayPlot::setLineMarker8

(

QwtSymbol::Style

)

[slot]

void DisplayPlot::setLineMarker9

(

QwtSymbol::Style

)

[slot]

virtual void DisplayPlot::setLineStyle	(	int	which,
		Qt::PenStyle	style
	)		[virtual, slot]

void DisplayPlot::setLineStyle1

(

Qt::PenStyle

)

[slot]

void DisplayPlot::setLineStyle2

(

Qt::PenStyle

)

[slot]

void DisplayPlot::setLineStyle3

(

Qt::PenStyle

)

[slot]

void DisplayPlot::setLineStyle4

(

Qt::PenStyle

)

[slot]

void DisplayPlot::setLineStyle5

(

Qt::PenStyle

)

[slot]

void DisplayPlot::setLineStyle6

(

Qt::PenStyle

)

[slot]

void DisplayPlot::setLineStyle7

(

Qt::PenStyle

)

[slot]

void DisplayPlot::setLineStyle8

(

Qt::PenStyle

)

[slot]

void DisplayPlot::setLineStyle9

(

Qt::PenStyle

)

[slot]

virtual void DisplayPlot::setLineWidth	(	int	which,
		int	width
	)		[virtual, slot]

void DisplayPlot::setLineWidth1

(

int

)

[slot]

void DisplayPlot::setLineWidth2

(

int

)

[slot]

void DisplayPlot::setLineWidth3

(

int

)

[slot]

void DisplayPlot::setLineWidth4

(

int

)

[slot]

void DisplayPlot::setLineWidth5

(

int

)

[slot]

void DisplayPlot::setLineWidth6

(

int

)

[slot]

void DisplayPlot::setLineWidth7

(

int

)

[slot]

void DisplayPlot::setLineWidth8

(

int

)

[slot]

void DisplayPlot::setLineWidth9

(

int

)

[slot]

virtual void DisplayPlot::setMarkerAlpha	(	int	which,
		int	alpha
	)		[virtual, slot]

Reimplemented in HistogramDisplayPlot.

void DisplayPlot::setMarkerAlpha1

(

int

)

[slot]

void DisplayPlot::setMarkerAlpha2

(

int

)

[slot]

void DisplayPlot::setMarkerAlpha3

(

int

)

[slot]

void DisplayPlot::setMarkerAlpha4

(

int

)

[slot]

void DisplayPlot::setMarkerAlpha5

(

int

)

[slot]

void DisplayPlot::setMarkerAlpha6

(

int

)

[slot]

void DisplayPlot::setMarkerAlpha7

(

int

)

[slot]

void DisplayPlot::setMarkerAlpha8

(

int

)

[slot]

void DisplayPlot::setMarkerAlpha9

(

int

)

[slot]

void DisplayPlot::setPaletteColor

(

QColor

c

)

[slot]

void DisplayPlot::setStop

(

bool

on

)

[slot]

virtual void DisplayPlot::setXaxis	(	double	min,
		double	max
	)		[virtual, slot]

void DisplayPlot::setXaxisLabelFontSize

(

int

fs

)

[slot]

virtual void DisplayPlot::setYaxis	(	double	min,
		double	max
	)		[virtual, slot]

Reimplemented in FrequencyDisplayPlot.

void DisplayPlot::setYaxisLabelFontSize

(

int

fs

)

[slot]

void DisplayPlot::setZoomerColor

(

QColor

c

)

[slot]

---

Member Data Documentation

bool DisplayPlot::_autoscale_state [protected]

QwtPlotMagnifier* DisplayPlot::_magnifier [protected]

int DisplayPlot::_nplots [protected]

int64_t DisplayPlot::_numPoints [protected]

QwtPlotPanner* DisplayPlot::_panner [protected]

QwtDblClickPlotPicker* DisplayPlot::_picker [protected]

std::vector<QwtPlotCurve*> DisplayPlot::_plot_curve [protected]

bool DisplayPlot::_stop [protected]

QList<QColor> DisplayPlot::_trace_colors [protected]

QwtPlotZoomer* DisplayPlot::_zoomer [protected]

---

Property Documentation

int DisplayPlot::axes_label_font_size [read, write]

QColor DisplayPlot::line_color1 [read, write]

QColor DisplayPlot::line_color2 [read, write]

QColor DisplayPlot::line_color3 [read, write]

QColor DisplayPlot::line_color4 [read, write]

QColor DisplayPlot::line_color5 [read, write]

QColor DisplayPlot::line_color6 [read, write]

QColor DisplayPlot::line_color7 [read, write]

QColor DisplayPlot::line_color8 [read, write]

QColor DisplayPlot::line_color9 [read, write]

QwtSymbolStyle DisplayPlot::line_marker1 [read, write]

QwtSymbolStyle DisplayPlot::line_marker2 [read, write]

QwtSymbolStyle DisplayPlot::line_marker3 [read, write]

QwtSymbolStyle DisplayPlot::line_marker4 [read, write]

QwtSymbolStyle DisplayPlot::line_marker5 [read, write]

QwtSymbolStyle DisplayPlot::line_marker6 [read, write]

QwtSymbolStyle DisplayPlot::line_marker7 [read, write]

QwtSymbolStyle DisplayPlot::line_marker8 [read, write]

QwtSymbolStyle DisplayPlot::line_marker9 [read, write]

Qt::PenStyle DisplayPlot::line_style1 [read, write]

Qt::PenStyle DisplayPlot::line_style2 [read, write]

Qt::PenStyle DisplayPlot::line_style3 [read, write]

Qt::PenStyle DisplayPlot::line_style4 [read, write]

Qt::PenStyle DisplayPlot::line_style5 [read, write]

Qt::PenStyle DisplayPlot::line_style6 [read, write]

Qt::PenStyle DisplayPlot::line_style7 [read, write]

Qt::PenStyle DisplayPlot::line_style8 [read, write]

Qt::PenStyle DisplayPlot::line_style9 [read, write]

int DisplayPlot::line_width1 [read, write]

int DisplayPlot::line_width2 [read, write]

int DisplayPlot::line_width3 [read, write]

int DisplayPlot::line_width4 [read, write]

int DisplayPlot::line_width5 [read, write]

int DisplayPlot::line_width6 [read, write]

int DisplayPlot::line_width7 [read, write]

int DisplayPlot::line_width8 [read, write]

int DisplayPlot::line_width9 [read, write]

int DisplayPlot::marker_alpha1 [read, write]

int DisplayPlot::marker_alpha2 [read, write]

int DisplayPlot::marker_alpha3 [read, write]

int DisplayPlot::marker_alpha4 [read, write]

int DisplayPlot::marker_alpha5 [read, write]

int DisplayPlot::marker_alpha6 [read, write]

int DisplayPlot::marker_alpha7 [read, write]

int DisplayPlot::marker_alpha8 [read, write]

int DisplayPlot::marker_alpha9 [read, write]

QColor DisplayPlot::palette_color [read, write]

int DisplayPlot::xaxis_label_font_size [read, write]

int DisplayPlot::yaxis_label_font_size [read, write]

QColor DisplayPlot::zoomer_color [read, write]

---

The documentation for this class was generated from the following file:

• DisplayPlot.h
