GNU Radio 3.5.3.2 C++ API
gr_oscope_sink_f Class Reference

Building block for python oscilloscope module.Accepts multiple float streams. More...

#include <gr_oscope_sink_f.h>

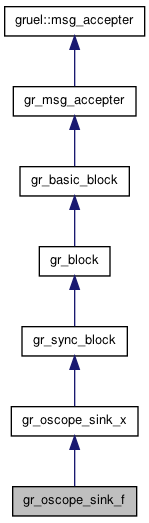

Inheritance diagram for gr_oscope_sink_f:

List of all members.

Public Member Functions

 ~gr_oscope_sink_f ()
int work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
 just like gr_block::general_work, only this arranges to call consume_each for you
bool check_topology (int ninputs, int noutputs)
 Confirm that ninputs and noutputs is an acceptable combination.

Friends

GR_CORE_API gr_oscope_sink_f_sptr gr_make_oscope_sink_f (double sampling_rate, gr_msg_queue_sptr msgq)

Detailed Description

Building block for python oscilloscope module.

Accepts multiple float streams.


Constructor & Destructor Documentation

gr_oscope_sink_f::~gr_oscope_sink_f ( )

Member Function Documentation

bool gr_oscope_sink_f::check_topology ( int  ninputs,
int  noutputs
) [virtual]

Confirm that ninputs and noutputs is an acceptable combination.

Parameters:
ninputsnumber of input streams connected
noutputsnumber of output streams connected
Returns:
true if this is a valid configuration for this block.

This function is called by the runtime system whenever the topology changes. Most classes do not need to override this. This check is in addition to the constraints specified by the input and output gr_io_signatures.

Reimplemented from gr_basic_block.

int gr_oscope_sink_f::work ( int  noutput_items,
gr_vector_const_void_star input_items,
gr_vector_void_star output_items
) [virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.


Friends And Related Function Documentation

GR_CORE_API gr_oscope_sink_f_sptr gr_make_oscope_sink_f ( double  sampling_rate,
gr_msg_queue_sptr  msgq
) [friend]

The documentation for this class was generated from the following file:
