GNU Radio 3.5.3.2 C++ API
gr_encode_ccsds_27_bb Class Reference

A rate 1/2, k=7 convolutional encoder for the CCSDS standardThis block performs convolutional encoding using the CCSDS standard polynomial ("Voyager"). More...

#include <gr_encode_ccsds_27_bb.h>

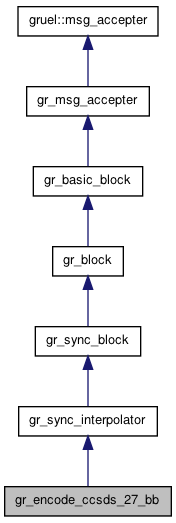

Inheritance diagram for gr_encode_ccsds_27_bb:

List of all members.

Public Member Functions

 ~gr_encode_ccsds_27_bb ()
int work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
 just like gr_block::general_work, only this arranges to call consume_each for you

Friends

GR_CORE_API
gr_encode_ccsds_27_bb_sptr
gr_make_encode_ccsds_27_bb ()

Detailed Description

A rate 1/2, k=7 convolutional encoder for the CCSDS standard

This block performs convolutional encoding using the CCSDS standard polynomial ("Voyager").

The input is an MSB first packed stream of bits.

The output is a stream of symbols 0 or 1 representing the encoded data.

As a rate 1/2 code, there will be 16 output symbols for every input byte.

This block is designed for continuous data streaming, not packetized data. There is no provision to "flush" the encoder.


Constructor & Destructor Documentation

gr_encode_ccsds_27_bb::~gr_encode_ccsds_27_bb ( )

Member Function Documentation

int gr_encode_ccsds_27_bb::work ( int  noutput_items,
gr_vector_const_void_star input_items,
gr_vector_void_star output_items
) [virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.


Friends And Related Function Documentation

GR_CORE_API gr_encode_ccsds_27_bb_sptr gr_make_encode_ccsds_27_bb ( ) [friend]

The documentation for this class was generated from the following file:
