flexrf_base Class Reference

#include <db_flexrf.h>

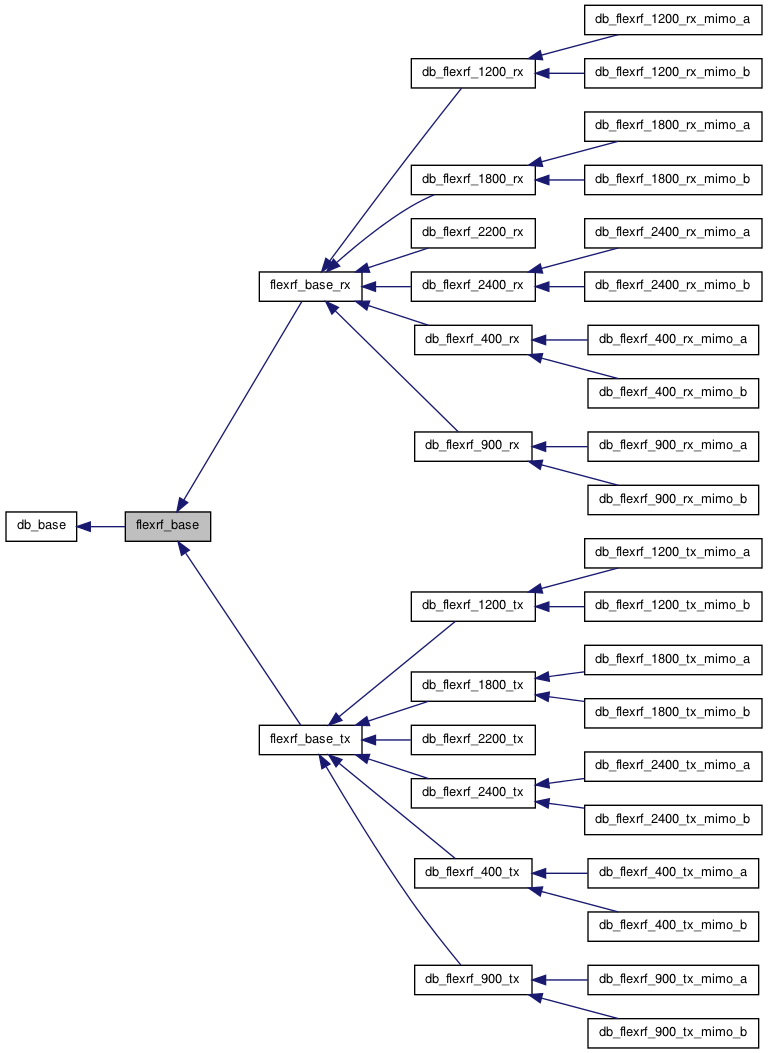

Inheritance diagram for flexrf_base:

List of all members.

Public Member Functions
	flexrf_base (usrp_basic_sptr usrp, int which, int _power_on=0)
	~flexrf_base ()
struct freq_result_t	set_freq (double freq)
bool	is_quadrature ()
double	freq_min ()
double	freq_max ()
Protected Member Functions
void	_write_all (int R, int control, int N)
void	_write_control (int control)
void	_write_R (int R)
void	_write_N (int N)
void	_write_it (int v)
bool	_lock_detect ()
virtual bool	_compute_regs (double freq, int &retR, int &retcontrol, int &retN, double &retfreq)
int	_compute_control_reg ()
int	_refclk_divisor ()
bool	_set_pga (float pga_gain)
int	power_on ()
int	power_off ()
Protected Attributes
bool	d_first
int	d_spi_format
int	d_spi_enable
int	d_power_on
int	d_PD
_AD4360_common *	d_common

---

Constructor & Destructor Documentation

flexrf_base::flexrf_base	(	usrp_basic_sptr	usrp,
		int	which,
		int	_power_on = 0
	)

flexrf_base::~flexrf_base

(

)

---

Member Function Documentation

int flexrf_base::_compute_control_reg

(

)

[protected]

virtual bool flexrf_base::_compute_regs	(	double	freq,
		int &	retR,
		int &	retcontrol,
		int &	retN,
		double &	retfreq
	)		[protected, virtual]

Reimplemented in db_flexrf_2200_tx, db_flexrf_2200_rx, db_flexrf_2400_tx, db_flexrf_2400_rx, db_flexrf_1200_tx, db_flexrf_1200_rx, db_flexrf_1800_tx, db_flexrf_1800_rx, db_flexrf_900_tx, db_flexrf_900_rx, db_flexrf_400_tx, and db_flexrf_400_rx.

bool flexrf_base::_lock_detect

(

)

[protected]

int flexrf_base::_refclk_divisor

(

)

[protected, virtual]

Reimplemented from db_base.

Reimplemented in db_flexrf_2400_tx_mimo_a, db_flexrf_2400_rx_mimo_a, db_flexrf_2400_tx_mimo_b, db_flexrf_2400_rx_mimo_b, db_flexrf_1800_tx_mimo_a, db_flexrf_1800_rx_mimo_a, db_flexrf_1800_tx_mimo_b, db_flexrf_1800_rx_mimo_b, db_flexrf_1200_tx_mimo_a, db_flexrf_1200_rx_mimo_a, db_flexrf_1200_tx_mimo_b, db_flexrf_1200_rx_mimo_b, db_flexrf_900_tx_mimo_a, db_flexrf_900_rx_mimo_a, db_flexrf_900_tx_mimo_b, db_flexrf_900_rx_mimo_b, db_flexrf_400_tx_mimo_a, db_flexrf_400_rx_mimo_a, db_flexrf_400_tx_mimo_b, and db_flexrf_400_rx_mimo_b.

bool flexrf_base::_set_pga

(

float

pga_gain

)

[protected]

void flexrf_base::_write_all	(	int	R,
		int	control,
		int	N
	)		[protected]

void flexrf_base::_write_control

(

int

control

)

[protected]

void flexrf_base::_write_it

(

int

v

)

[protected]

void flexrf_base::_write_N

(

int

N

)

[protected]

void flexrf_base::_write_R

(

int

R

)

[protected]

double flexrf_base::freq_max

(

)

[virtual]

Implements db_base.

double flexrf_base::freq_min

(

)

[virtual]

Implements db_base.

bool flexrf_base::is_quadrature

(

)

[virtual]

Implements db_base.

int flexrf_base::power_off

(

)

[inline, protected]

int flexrf_base::power_on

(

)

[inline, protected]

References d_power_on.

struct freq_result_t flexrf_base::set_freq

(

double

freq

)

[read, virtual]

Implements db_base.

---

Member Data Documentation

_AD4360_common* flexrf_base::d_common [protected]

bool flexrf_base::d_first [protected]

int flexrf_base::d_PD [protected]

int flexrf_base::d_power_on [protected]

Referenced by power_on().

int flexrf_base::d_spi_enable [protected]

int flexrf_base::d_spi_format [protected]

---

The documentation for this class was generated from the following file:

• db_flexrf.h
