Message Tools

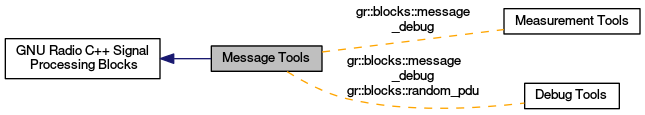

Collaboration diagram for Message Tools:
|
Classes | |
| class | gr::blocks::message_burst_source |
| Turn received messages into a stream and tag them for UHD to send. More... | |
| class | gr::blocks::message_debug |
| Debug block for the message passing system. More... | |
| class | gr::blocks::message_sink |
| Gather received items into messages and insert into msgq. More... | |
| class | gr::blocks::message_source |
| Turn received messages into a stream. More... | |
| class | gr::blocks::message_strobe |
| Send message at defined interval. More... | |
| class | gr::blocks::message_strobe_random |
| Send message at defined interval. More... | |
| class | gr::blocks::pdu_to_tagged_stream |
| Turns received PDUs into a tagged stream of items. More... | |
| class | gr::blocks::random_pdu |
| Sends a random PDU at intervals. More... | |
| class | gr::blocks::tagged_stream_to_pdu |
| Turns received stream data and tags into PDUs and sends them through a message port.The sent message is a PMT-pair (created by pmt::cons()). The first element is a dictionary containing all the tags. The second is a vector containing the actual data. More... | |
