QT Graphical Interfaces

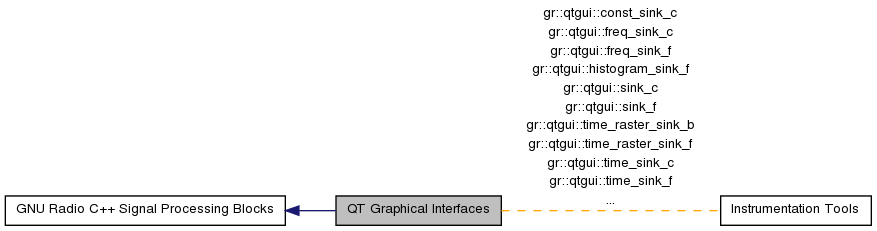

Collaboration diagram for QT Graphical Interfaces:

Classes
class	gr::qtgui::const_sink_c
	A graphical sink to display the IQ constellation of multiple signals. More...
class	ConstellationDisplayForm
	DisplayForm child for managing constellaton (I&Q) plots. More...
class	ConstellationDisplayPlot
	QWidget for displaying constellaton (I&Q) plots. More...
class	DisplayForm
	Base class for setting up and managing QTGUI plot forms. More...
class	DisplayPlot
	QWidget base plot to build QTGUI plotting tools. More...
class	gr::qtgui::freq_sink_c
	A graphical sink to display multiple signals in frequency. More...
class	gr::qtgui::freq_sink_f
	A graphical sink to display multiple signals in frequency. More...
class	FreqDisplayForm
	DisplayForm child for managing frequency (PSD) plots. More...
class	FrequencyDisplayPlot
	QWidget for displaying frequency domain (PSD) plots. More...
class	gr::qtgui::histogram_sink_f
	A graphical sink to display a histogram. More...
class	HistogramDisplayForm
	DisplayForm child for managing histogram domain plots. More...
class	HistogramDisplayPlot
	QWidget for displaying time domain plots. More...
class	PlotTimeRaster
	A plot item, which displays a time raster. More...
class	PlotWaterfall
	A plot item, which displays a waterfall spectrogram. More...
class	gr::qtgui::sink_c
	A graphical sink to display freq, spec, time, and const plots. More...
class	gr::qtgui::sink_f
	A graphical sink to display freq, spec, and time. More...
class	SpectrumGUIClass
	QWidget class for controlling plotting. More...
class	gr::qtgui::time_raster_sink_b
	A graphical sink to display multiple signals on a time_raster plot. More...
class	gr::qtgui::time_raster_sink_f
	A graphical sink to display multiple signals on a time_raster plot. More...
class	gr::qtgui::time_sink_c
	A graphical sink to display multiple signals in time. More...
class	gr::qtgui::time_sink_f
	A graphical sink to display multiple signals in time. More...
class	TimeDisplayForm
	DisplayForm child for managing time domain plots. More...
class	TimeDomainDisplayPlot
	QWidget for displaying time domain plots. More...
class	TimeRasterDisplayForm
	DisplayForm child for managing time raster plots. More...
class	TimeRasterDisplayPlot
	QWidget for time raster (time vs. time) plots. More...
class	gr::qtgui::waterfall_sink_c
	A graphical sink to display multiple signals on a waterfall (spectrogram) plot. More...
class	gr::qtgui::waterfall_sink_f
	A graphical sink to display multiple signals on a waterfall (spectrogram) plot. More...
class	WaterfallDisplayForm
	DisplayForm child for managing waterfall (spectrogram) plots. More...
class	WaterfallDisplayPlot
	QWidget for displaying waterfall (spectrogram) plots. More...
