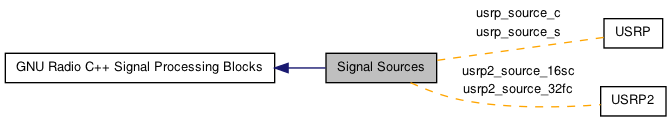

Collaboration diagram for Signal Sources:
|
Classes | |
| class | gr_glfsr_source_b |
| Galois LFSR pseudo-random source. More... | |
| class | gr_glfsr_source_f |
| Galois LFSR pseudo-random source generating float outputs -1.0 - 1.0. More... | |
| class | gr_lfsr_32k_source_s |
| LFSR pseudo-random source with period of 2^15 bits (2^11 shorts)This source is typically used along with gr_check_lfsr_32k_s to test the USRP using its digital loopback mode. More... | |
| class | gr_null_source |
| A source of zeros. More... | |
| class | gr_file_descriptor_source |
| Read stream from file descriptor. More... | |
| class | gr_file_source |
| Read stream from file. More... | |
| class | gr_message_source |
| Turn received messages into a stream. More... | |
| class | gr_udp_source |
| Read stream from an UDP socket. More... | |
| class | gr_wavfile_source |
| Read stream from a Microsoft PCM (.wav) file, output floats. More... | |
| class | usrp_source_c |
| Interface to Universal Software Radio Peripheral Rx pathoutput: 1 stream of complex<float> More... | |
| class | usrp_source_s |
| Interface to Universal Software Radio Peripheral Rx pathoutput: 1 stream of short. More... | |
| class | usrp2_source_16sc |
| class | usrp2_source_32fc |
