GNU Radio 3.7.3 C++ API

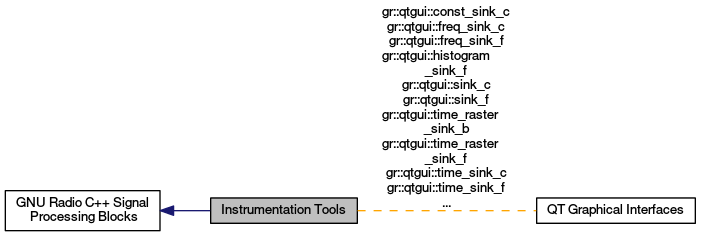

Collaboration diagram for Instrumentation Tools:

Classes

class  gr::qtgui::const_sink_c
 A graphical sink to display the IQ constellation of multiple signals. More...

class  gr::qtgui::freq_sink_c
 A graphical sink to display multiple signals in frequency. More...

class  gr::qtgui::freq_sink_f
 A graphical sink to display multiple signals in frequency. More...

class  gr::qtgui::histogram_sink_f
 A graphical sink to display a histogram. More...

class  gr::qtgui::sink_c
 A graphical sink to display freq, spec, time, and const plots. More...

class  gr::qtgui::sink_f
 A graphical sink to display freq, spec, and time. More...

class  gr::qtgui::time_raster_sink_b
 A graphical sink to display multiple signals on a time_raster plot. More...

class  gr::qtgui::time_raster_sink_f
 A graphical sink to display multiple signals on a time_raster plot. More...

class  gr::qtgui::time_sink_c
 A graphical sink to display multiple signals in time. More...

class  gr::qtgui::time_sink_f
 A graphical sink to display multiple signals in time. More...

class  gr::qtgui::waterfall_sink_c
 A graphical sink to display multiple signals on a waterfall (spectrogram) plot. More...

class  gr::qtgui::waterfall_sink_f
 A graphical sink to display multiple signals on a waterfall (spectrogram) plot. More...


Detailed Description
